    Product Details:

    Place of Origin: China
    Brand Name: DahoMeter
    Certification: FCC,CE
    Model Number: HT-2408T-L

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to 2699 per unit
    Packaging Details: Standard wooden exporting package
    Delivery Time: 5 to 8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Horizontal Vertical Flame Tester Control System: Electronic Control
    Burning Angle: 20 °, 45 °, 90 ° (ie 0 °) Adjustable

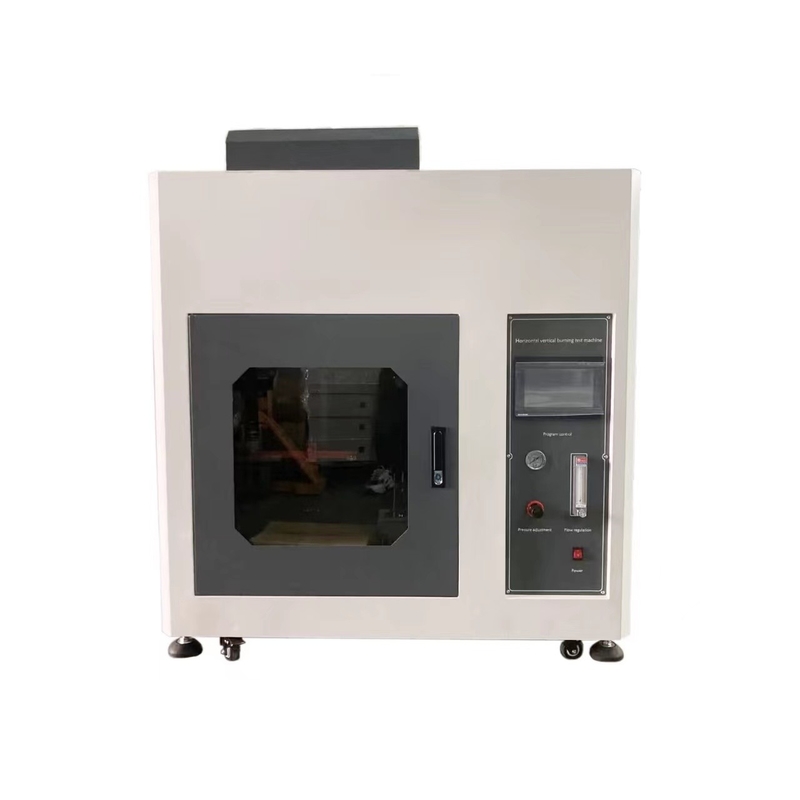

    Horizontal Vertical Flame Testing Equipment Burning Tester Horizontal Vertical Flame Chamber HT-2408T-L





    Model:HT-2408T-L



    Application:



    This instrument is suitable for the inspection and evaluation of the burning characteristics of plastic materials. It is designed and manufactured according to the relevant provisions of the US UL94 standard and GBT2408 standard "flammability test of plastic materials for equipment and appliance parts".It can do the horizontal and vertical flammability testing of plastic parts for equipment and appliances.It is equipped with gas flow meter to adjust the flame size.The operation is simple and safe. The instrument can assess the flammability of materials or foams such as: V-0,V-1,V-2,HB,5V,HF-1,HF-2,HBF.



    Features:



    1.The instrument is equipped with lighting device, air pumping device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-type pressure gauge.

    2.The sample fixture is made of 304 stainless steel, beautiful and corrosion-resistant, and the fixture is integrated design for horizontally And vertical combustion, easy to operate, save space.



    Standards:



    ISO1210, GB4609, IEC 707, IEC695-2-2

    UL94 "Fire Test"

    GBT2408-2008 "Determination of burning properties of plastics - Horizontal method and vertical method"

    IEC60695-11-10 "Fire Test"

    GB/T8333-2008 "Test method for burning rigid foams - Vertical combustion method"



    Function:

    • Programmable controller touch screen, data display;
    • Pulse high voltage electronic automatic ignition;
    • Timing button cooperates with PLC to automatically record and store burning time;
    • Time timer detects that the flame reaches the 25, 100mm line time;
    • Accuracy 0.1S, automatic timing;
    • No need to hold the stopwatch or manuscript timing; the test time system automatically records and generates an experimental report;
    • Test time and fire time can be set on the touch screen. Meet a variety of test standards;
    • Linear burning rate (V) PLC automatic calculation, touch screen display and save;
    • The test level value (HB0 HB40 HB75/V-0 V-1 V-2) and the national standard value can be viewed on the screen;
    • Horizontal and vertical burning test procedures can be switched on the touch screen.

    Specification:



    Volume of the inner chamber ≥0.5 cubic meters, with glass observation door
    Timer It adopts the imported timer, adjustable from 0 to 99 minutes and 99 seconds, the accuracy is ±0.1 seconds, the burning time can be set, and the burning duration can be recorded.
    Control system electronic control
    Print function automatically print data
    Flame time 0 ~ 99 minutes 99 seconds can be set
    Afterflame time 0 ~ 99 minutes 99 seconds can be set
    Afterburning time 0 ~ 99 minutes 99 seconds can be set
    Test gas 98% or more of methane/37MJ/m3 natural gas (liquefied gas is also available)
    Burning angle 20 °, 45 °, 90 ° (ie 0 °) adjustable
    Burner size parameters the lamp is imported, the inner diameter of the nozzle is Ø9.5±0.3mm, the effective length of the nozzle is 100±10mm, and there is air conditioning hole.
    Sample mode front and rear alignment of the motor drive
    Flame height adjustable from 20mm to 175mm according to standard requirements
    Flowmeter using 105ml/min standard
    Power supply AC 220V/50Hz





    Horizontal Vertical Flame Testing Equipment Burning Tester Horizontal Vertical Flame Chamber HT-2408T-LHorizontal Vertical Flame Testing Equipment Burning Tester Horizontal Vertical Flame Chamber HT-2408T-L

    Horizontal Vertical Flame Testing Equipment Burning Tester Horizontal Vertical Flame Chamber HT-2408T-L
