    Product Details:

    Place of Origin: China
    Brand Name: DahoMeter
    Certification: FCC, ISO
    Model Number: DH-BZH-4-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100
    Contact Now
    Detailed Product Description
    Temperature Range: 100~1000℃ Volatility: ±2℃
    Display Accuracy: 1℃ Furnace Size: 120*200*300
    Heat Up Speed: Average ≤10℃/min Total Power: 4kw

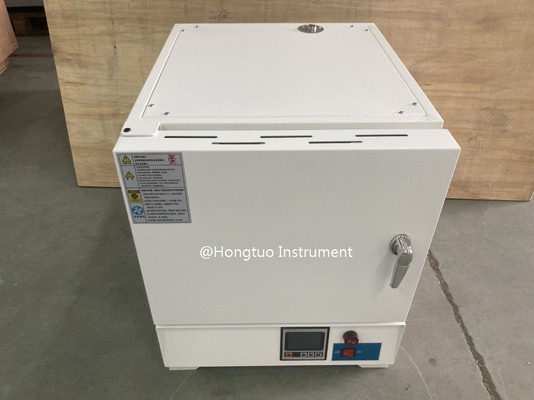

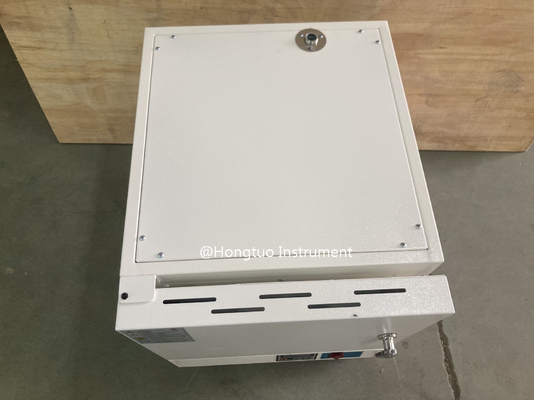

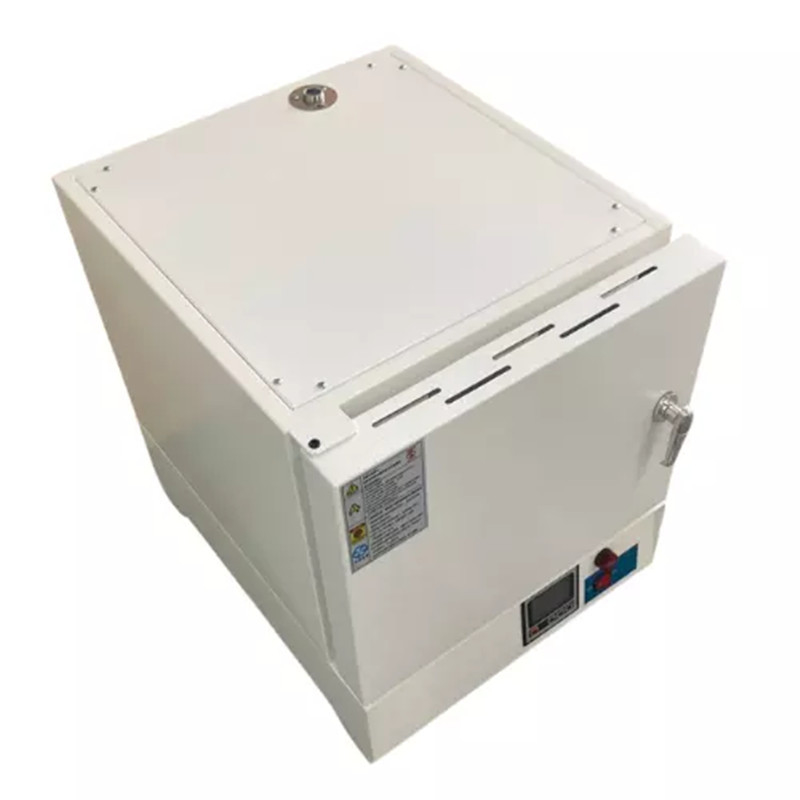

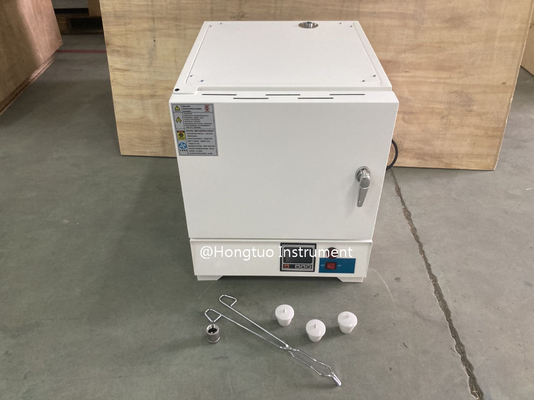

    Ash Content Determination Muffle Furnace



    Introduction:

    The box-type resistance furnace for determination of ash and glass fiber content is a new generation of energy-saving intelligent products with high performance electromechanical integration, mainly used for the determination of plastic glass fiber and other contents. It is the ideal equipment for plastic processing, production enterprises, scientific research departments, universities. It can intelligently control time and temperature in segments. In accordance with ISO 3451-1: 1997, "GB / T9345.1-2008 Determination of ash content of plastics Part I General method.



    Feature:

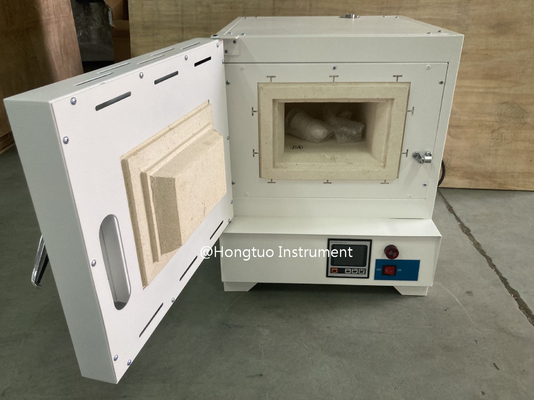

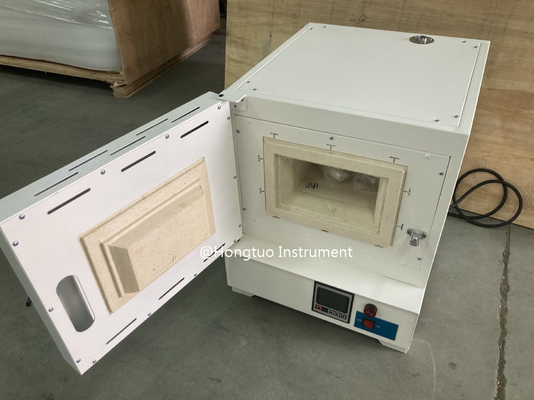

    It adopts domestic advanced technology. The furnace shell is made of high-quality steel plate by folding and welding, and the control box and the furnace body are integrated. Beautiful appearance, to avoid the cumbersome installation of customers. The inner furnace lining is a rectangular integral furnace lining made of high aluminum and silicon carbide refractory materials. The helical heating element made of iron-nickel-chromium-aluminum alloy wire is passed through the upper, lower, left and right wire grooves of the inner furnace lining. Heating up and down. The inside of the furnace is a sealed structure, and the inner furnace and the furnace shell are built with refractory fiber aluminum silicate wool and diatomite products as a thermal insulation layer. The overall design is reasonable and the service life is long. The left side of the furnace door and the smoke exhaust device of the chimney are easy to operate. Beautiful in appearance, exquisite in craftsmanship, sturdy and durable, not easy to deform.



    Temperature control:

    It adopts overall design and humanized menu design, adopts industrial PID self-tuning control technology, dual-screen high-brightness wide-window digital display, and the indication value is clear and intuitive. The microcomputer intelligent control solves the disadvantages such as temperature overshoot, and the temperature control effect is excellent. After setting the temperature, the instrument controls the heating output by itself, and the temperature control is accurate and stable. Over temperature alarm and automatically cut off the heating output. It has the function of timing when the machine is turned on or when the temperature reaches the set temperature.



    Specification:

    Model

    DH-BZH-2.5-10

    (2.5-12)

    DH-BZH-4-10 DH-BZH-5-12 DH-BZH-8-10 DH-BZH-10-12 DH-BZH-12-10 DH-BZH-12-12
    temperature range

    100~1000℃

    (1200℃)

    100~1000℃ 100~1200℃ 100~1000℃ 100~1200℃ 100~1000℃ 100~1200℃
    volatility ±2℃ ±2℃ ±2℃ ±2℃ ±2℃ ±2℃ ±2℃
    Display accuracy 1℃ 1℃ 1℃ 1℃ 1℃ 1℃ 1℃
    Furnace size 80*120*200 120*200*300 120*200*300 160*250*400 160*250*400 200*300*500 200*300*500
    Heat up speed

    Average

    ≤10℃/min

    Average

    ≤10℃/min

    Average

    ≤10℃/min

    Average

    ≤10℃/min

    Average

    ≤10℃/min

    Average

    ≤10℃/min

    Average

    ≤10℃/min

    Total power 2.5kw 4kw 5kw 8kw 10kw 12kw 12kw
    Power supply 220V, 50Hz 220V, 50Hz 220V, 50Hz 380V, 50Hz 380V, 50Hz 380V, 50Hz 380V, 50Hz
    Furnace shell material The outer casing is made of high-quality cold plate, treated with phosphoric acid film salt, and sprayed at high temperature, and the color is computer gray.
    Furnace bile material High-aluminum inner tank is adopted, with good wear resistance, and the high-temperature furnace generates heat on all sides.
    Heat insulation method Insulation bricks and insulation cotton.
    Temperature measuring port The thermocouple enters from the rear and top of the furnace body.
    Wiring terminal The heating furnace wire terminal is located at the rear and lower position of the furnace body.
    Controller It is located under the furnace body, with built-in control system, and the compensation wire is connected to the furnace body.
    Heating element High temperature resistance wire.
    Standard packaging wooden box
    Temperature measurement K-graded nickel-chromium-nickel-silicon thermocouple
    Control system PID adjustment, display accuracy 1℃
    Complete set of electrical appliances Adopt brand contactor, cooling fan, solid state relay.
    Time The working time can be set, the constant temperature time is reached, and the automatic shutdown.
    Overtemperature protection Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off.
    Running mode Full-scale adjustable constant temperature, constant operation.
    After-sale service

    Responsible for remote technical guidance to users;

    provide spare parts and accessories for equipment in a timely manner;

    provide technical advice and support during equipment use;

    immediate response within 8 working hours after receiving customer failure notice.
