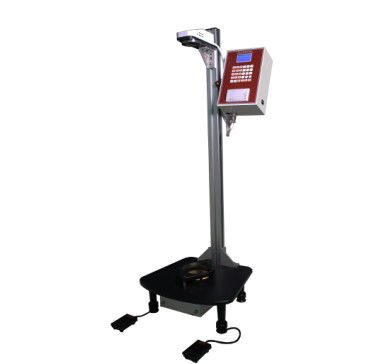

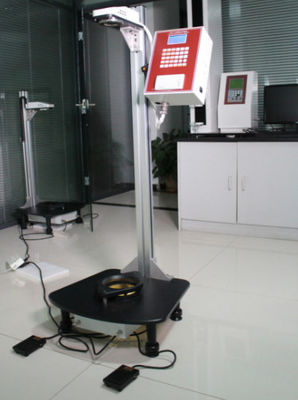

Falling Dart Impact Testing Machine, Falling Dart Impact Tester, Falling Dart Impact Testing Instrument / Apparatus

Falling Dart Impact Testing Machine, Falling Dart Impact Tester, Falling Dart Impact Testing Instrument / Apparatus

    • Falling Dart Impact Testing Machine, Falling Dart Impact Tester, Falling Dart Impact Testing Instrument / Apparatus
    • Falling Dart Impact Testing Machine, Falling Dart Impact Tester, Falling Dart Impact Testing Instrument / Apparatus
  • Falling Dart Impact Testing Machine, Falling Dart Impact Tester, Falling Dart Impact Testing Instrument / Apparatus

    Product Details:

    Place of Origin: Dongguan
    Brand Name: DahoMeter
    Model Number: DH-BMC

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to USD4999
    Packaging Details: standard exporting package
    Delivery Time: 5 to 8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Falling Dart Impact Testing Machine Testing Before Delivery: Yes
    After-sale Customer Service: Yes

    Falling Dart Impact Testing Machine, Falling Dart Impact Tester, Falling Dart Impact Testing Instrument / Apparatus





    Application:



    It is used to measure the impact mass and energy of 50% plastic film or sheet when the plastic film or sheet with a thickness of less than 1mm is impacted by a free falling dart at a given height.





    Features:

    • 2 test methods of A & B and automatic determination of testing status
    • Electromagnetic suspension and automatic release of the falling dart reduce the errors caused by manual operation
    • Pneumatic clamping, 2 starting modes of manual and pedal switch and built-in observation light are convenient to the user's operation
    • Professional software supports multi-unit result display, graphic display of testing process and data export and printing
    • Equipped with USB port and micro printer port which is convenient for data transmission and PC connection





    Principle:



    Before starting the test, choose test method, and estimate an initial mass and Δm. Start the test. If the first specimen fails, decrease the mass of the falling dart by Δm. If the first specimen is not a failure, increase the mass of the falling dart by Δm. Continue the test according to this rule. In brief, increase or decrease by Δm according to whether the former specimen is a failure or not. After 20 specimens, calculate the total number of failed specimens N. If N equals to 10, the test is over. If N is less than 10, add specimens and continue to test until N equals to 10. If N is greater than 10, add specimen and continue the test until the number of non-failure specimens reaches 10. Then the tester calculates the test results automatically according to specific formulas.





    Standards:



    This instrument conforms to various national and international standards:

    ASTM D1709, ISO 7765-1-1988, JIS K7124-1, GB/T 9639.1-2008





    Technical Specifications:



    Specifications DH-BMC
    Test Method Method A or Method B is optional
    Test Range

    Method A: 50~2000 g

    Method B: 300~2000 g

    Accuracy 0.1 g (0.1J)
    Specimen Clamp Pneumatic Clamp
    Pressure of Gas Supply 0.6 MPa (outside of supply scope)
    Port of Gas Supply Φ8 mm PU Tubing
    Specimen Size > 150 mm x 150 mm
    Power Supply AC 220V 50Hz
    Net Weight 70 kg
    Instrument Dimension Method A: 500 mm (L) x 450 mm (W) x 1320 mm (H)
    Method B: 500 mm (L) x 450 mm (W) x 2160 mm (H)





    Packing



    Falling Dart Impact Testing Machine, Falling Dart Impact Tester, Falling Dart Impact Testing Instrument / Apparatus
