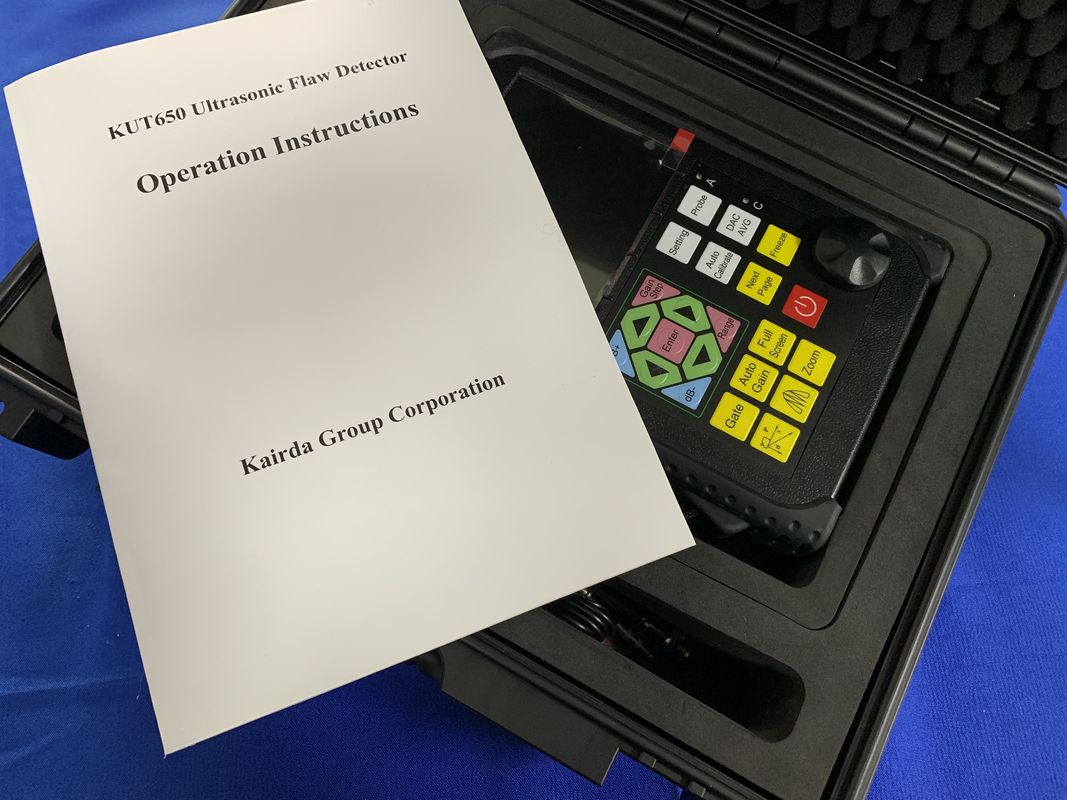

Ultrasonic Flaw Detector KUT-650
TECHNICAL DATA
| Measuring Range |
0~10000mm |
| Scanned Area |
0~10000mm |
| Frequency Range |
0.5~15MHz |
| Sound Speed |
1000~15000m/s |
| Gain |
0~120dB |
| Measurement Mode |
Single, dual, thru |
| D-Delay |
D-Delay -20~+3400μs |
| P-Delay |
0~99.99μs |
| Resolution |
0.1mm(2.5mm~100mm) 1mm(>100mm) |
| Power |
Li-battery (working time>10 hours) |
| Display |
LED true color |
| Humidity |
20%~90%RH |
| Temperature |
-20°C~70°C |
| Size |
238x155x46mm |
| Weight |
1kg |
MAIN FEATURE
*This flaw detector could measure item's thickness, measuring range:0-10000mm
*Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB,ф), utomated to switch;
*Automated calibration of transducer Zero-point, angles, front edge and material velocity;
*Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated;
*6dB DAC functions, standards of test for DAC is saved;
*Gate and DAC alarm, display freeze;
*B scan, AWS D1.1;
*Max 500 independence setup, any criterion can be input freely, can work in the scene without test block;
*Big memory Max 1000 A graph, unlimited of video time, automated make video of test process and play;
*Automated gain and gain scan;
*Peak hold and peak memory;
*Powerful PC software,reports can be export to excel;
*The embeded software can be online updated;
*Automated echo degree;
*Big memory Max 1000 A graph;
*Electronic clock calendar, lock and unlock function of system parameters;
*Two gates setting and alarm indication.
STANDARD DELIVERY
| ITEM |
QTY |
| Host |
1 PC |
| Straight Probe |
1 PC |
| Angle Probe |
1 PC |
| Probe Connecting Cable |
1 PCS |
| 9V Power Adaptor & Cable |
1 PC |
| PC Software |
1 PC |
| Communication Cable |
1 PC(or 2 Pcs if the interface of two probes are different) |
| Calibration Certificate |
1 PC |
| User Manual |
1 PC |
| Instrument Case |
1 PC |
| Warranty |
2 Years |
