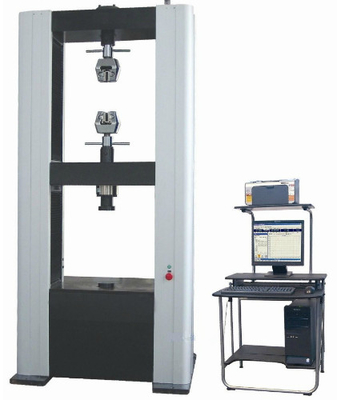

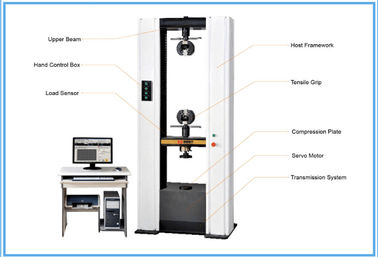

Tensile Testing Machine 300kn, Tensile Strength Tester of Steel Bar
Our advantages
We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.
A full range of services making customer satisfaction reflect our professional. Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs. After-sale, we could supply door to door installation and training services according to customer requirements . During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways. The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
Specifications
1 Maximum stretching/compression space: 500mm;
2 Maximum test width: 570mm;
3 Maximum stroke of the beam: 1100mm
4 Maximum test force: 300 kN;
5 Test machine level: 1;
6 Test force measurement range: 2%-100% FS;
7 Test force measurement accuracy: ±1%;
8 The force resolution: 1/500000 of the full scale (only a resolution in full scale, regardless of file);
9 Displacement measurement accuracy: ±1%;
10 Displacement measurement resolution: 0.001mm / 0.001μm;
11 Deformation measurement accuracy: ±1%;
12 Deformation measurement resolution: 0.001mm;
13 Displacement control speed range: 0.001 ~ 500mm / min;
14 Displacement control rate accuracy: within ±1.0% of the set value, the rate is <0.01 mm/min;
within ±0.2% of the set value , the rate is ≥0.01 mm/min, ;
15 Stress and strain control rate adjustment range : 0.005~5%FS/S ;
16 Stress and strain control rate adjustment accuracy: when the rate is <0.05% FS, it is within ±2% of the set value;
rate ≥0.05% FS, it is within ±0.5% of the set value ;
17 Host size: 1055 × 1010 × 2310mm;
18 Weight: 1600kg;
19 Power: 5kW;
20 Power supply: three-phase 380V ± 10%, 50Hz;
21 Environmental requirements: no vibration, no dust; room temperature 10 ° C ~ 35 ° C; humidity ≤ 80%;
No vibration around, no corrosive medium, no strong magnetic field interference;
