Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040

Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040

    • Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040
    • Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040
    • Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040
    • Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040
    • Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040
  • Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040

    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Model Number: HT-1040

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: 5-7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Dumbbell Type Sample Preparation Machine Milling Cutter Diameter:: 27mm
    Milling Cutter Speed:: 2900 Rev / Min Work Surface Size:: 400mm × 400mm
    Testing Before Delivery: Yes After-sale Customer Service: Yes

    Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040





    ►Introduction



    The machine shall be suitable for the preparation of dumbbell-type tensile specimens and Vicat thermal deformation specimens of various non-metallic pipes or plates. It adopts the principle of profiling and combines the principle of mechanical transmission to transform the rotary motion of the thread into a linear motion. It has the characteristics of simple operation, fast and convenient, and the standard and dimensional stability of the sample are obtained. The relative position of the sample and the tool can be adjusted according to the actual situation. The shape of the sample must be controlled by the corresponding shape of the template. The working process is not affected by the movement of the operator. It can be reused many times without repeated tooling. The sample spline reduces the wear time of the working time and improves the versatility of the operation, improves the work efficiency, reduces the processing cost, and installs a dust suction device on the work surface, the tool is durable, and the sample edge is smoothed. No burrs.





    ►Standards



    GB/T 8804.2-2003 "Temperature pipes for thermoplastics - Determination of tensile properties - Part 2:rigid polyvinyl chloride (PVC-U), chlorinated polyvinyl chloride (PVC-C) and high-impact polyvinyl chloride (PVC-H1) machined specimens (type 1) and blanking specimens (type 2) specified in the pipe;



    GB/T 8804.3-2003 "Temperature tubing - Determination of tensile properties - Part 3: Polyolefin pipes" - Dumbbell type specimens (type 1, type 2);



    GB/T 1040.2-2006 "Determination of tensile properties of plastics - Part 2: Test conditions for molded and extruded plastics"



    GB/T 1040.3-2006 "Determination of tensile properties of plastics - Part 3: Test conditions for films and sheets" - Dumbbell type specimens (types 5 and 1B).



    Accessories:



    One set of host
    One pcs of milling cutter
    One pcs of mold



    ►Patameter


    Milling cutter diameter: 27mm;

    Milling cutter speed: 2900 rev / min;

    Work surface size: 400mm × 400mm;

    Sample thickness: 1 ~ 20mm;

    Weight: 85Kg;

    Power supply voltage: AC 380V ± 10%, 50Hz;

    Power: 370W.

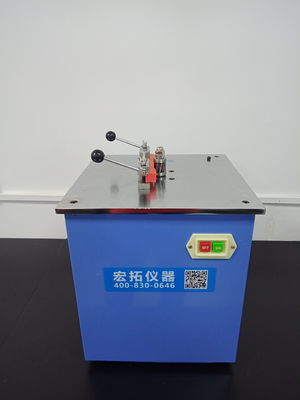

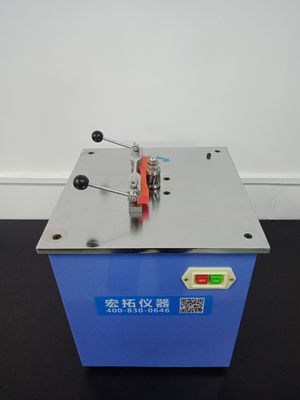

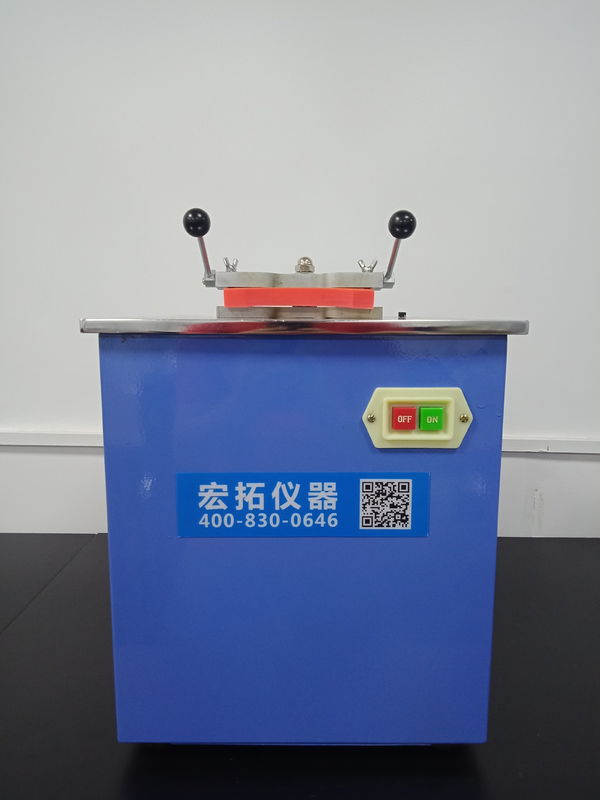

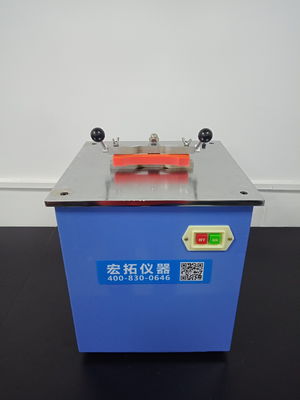

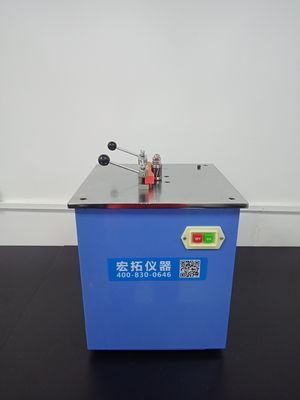

    ►Detail Images



    Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040







    ►Packing



    Rubber Dumbbell Sample Making Machine, Dumbbell-type Tensile Specimens Preparation Machine HT-1040
