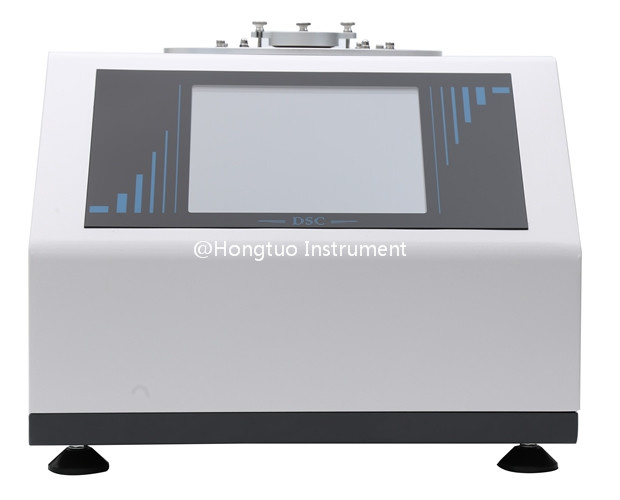

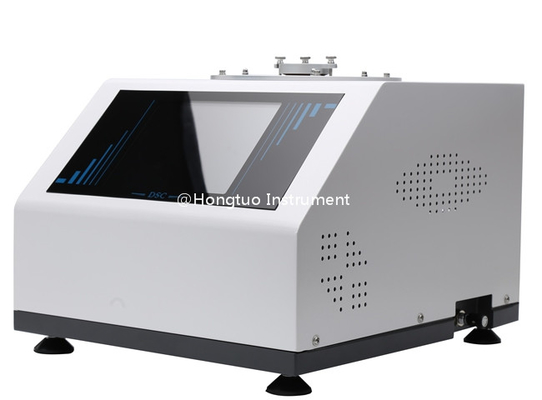

OIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510C

OIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510C

    • OIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510C
    • OIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510C
  • OIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510C

    Product Details:

    Place of Origin: China
    Brand Name: DahoMeter
    Certification: FCC, ISO
    Model Number: DH-DSC-510C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Temperature Range: Room Temperature~500℃ DSC Range: 0~±600mW
    Display Mode: 8-inch LCD Touch Screen Display, Super Hardness Instrument Mask Design. Heating Rate: 0.1~100℃/min

    OIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510C





    Product introduction:

    The differential scanning calorimeter is the type of touch screen, which is mainly customized for the plastic industry. It can measure the melting point of melting , block, particles, film, pipe, sleeve, ect for various plastics.

    Meet the standards:

    GB/T 19466.2-2004/ISO 11357-3:1999 Part 2 : Determination of glass transition temperature and glass transition stepheight.

    GB/T 19466.3-2004/ISO 11357-3:1999 Part 3 : Determination of temperature and enthalpy of melting and crystallization.

    GB/T 19466.6-2004/ISO 11357-3:1999 Part 6 : Determination of oxidation induction time(iso thermal OIT) and oxidation induction temperature(dynamic OIT).



    Technical parameters:

    Temperature range room temperature~500℃
    Temperature resolution 0.01℃
    Temperature fluctuation ±0.1℃
    Temperature repeatability ±0.1℃
    Heating rate 0.1~100℃/min
    Constant temperature time recommended <24h
    Temperature control methods heating, constant temperature (automatic program control)
    DSC measuring range 0~±600mW
    DSC resolution 0.01mW
    DSC sensitivity 0.01mW
    Power supply AC220V/50Hz or customized
    Atmosphere control gas nitrogen, oxygen (the instrument automatically switches)
    Gas flow rate 0-300mL/min
    Gas pressure 0.2MPa
    Display mode 8-inch LCD touch screen display, super hardness instrument mask design.





    Technical features:

    1. Industrial-grade 8-inch touch screen, the instrument face frame is perfectly combined with touch screen.

    2. The sensor is closely integrated with the furnace body to make the baseline more stable, and the sensitivity and resolution are greatly improved.

    3. USB communication interface, strong versatility, reliable and uninterrupted communication, supports self-recovery connection function.

    4. Digital flow meter, air flow control is more precise.

    5. Automatically switch the two-way atmosphere flow, fast switching speed and short stabilization time. At the same time, a protective gas input is added.

    6. The software is simple and easy to operate.



    OIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510COIT DSC Differential Calorimetry Analyzer Touch Screen Differential Scanning Calorimeter DH-DSC-510C
