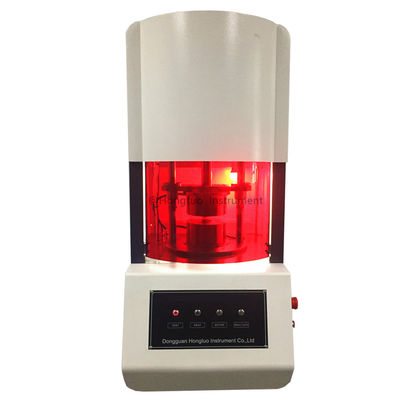

High Quality Computerized Rubber Mooney Viscometer Price, Mooney Viscosity Tester
►Introduction
A. High-precision sensor: 0 to 100 Mooney values. The Mooney accuracy is within ±0.5 Mooney. Resolution: 1/10 Mooney
B. Control system: computer control and interface board for data collection, preservation, processing and printing test results and curve processing.
C. Rotary system: The number of gears is used to reduce the speed of Electronic Products + gear reducer + reduction gears. Rotor speed: 2±0.02r/min.
D. Temperature control system: Using Intelligent digital temperature control instrument, real-time Automatism adjusts PID control parameters. Temperature control range 0--200 °C, temperature control accuracy ≤ ± 0.3 °C, temperature resolution 0.1 °C.
E. Data transmission method: RS232 transmission
F. Display mode: Viscosity-106+WIN-XP test software computer screen display, plus excellent user software and advanced hardware equipment make the whole measurement very convenient, fast, accurate and pleasant.
G. Rotor: Cr6wv material, the larger rotor is Φ38.10 ± 0.03 plane tooth number 24, the smaller rotor is φ30.48 ± 0.03 plane tooth number 19.
F. Measurement and control mode: humanized measurement and control method, mouse click-to-use or host panel touch button.
►Main Technical Parameters
| A. Temperature range 0-200°C |
I. Ambient temperature 0-35°C |
| B. Temperature measurement accuracy ≤±0.3°C |
J. Relative humidity <80 |
| C. Control accuracy ≤±0.3°C |
K. Test pressure 11.5KN ±0.5KN |
| D. Temperature Resolution 0.1°C |
L. Gas distribution 0.45-0.6MPA |
| E. Torque range 0-100 Mooney |
M. Power supply AC 220V 1KVA |
| F. Calibration accuracy 100±0.5 Mooney |
N. Machine size: about 660×570×1300mm |
| G. Rotor speed 2±0.02 rev/min |
O. Machine weight: about 210Kg |
| H. Measurement time 0-200 points Resolution 1 second |
|

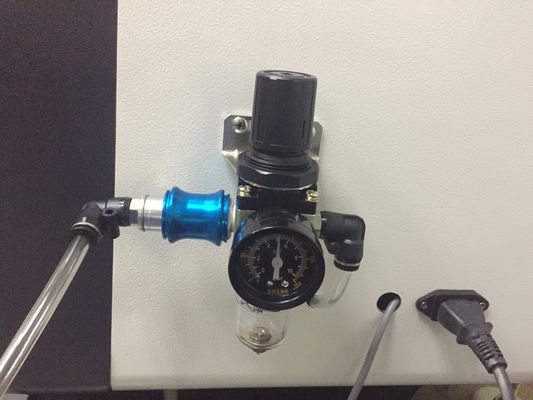

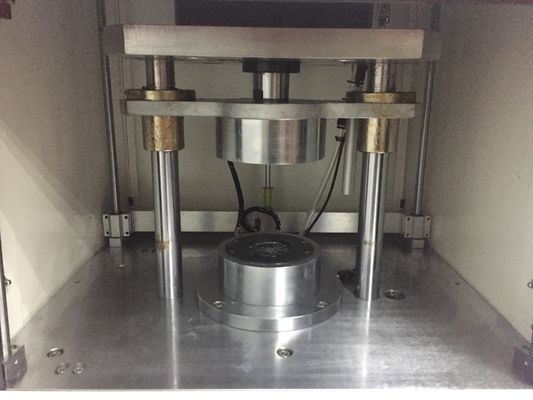

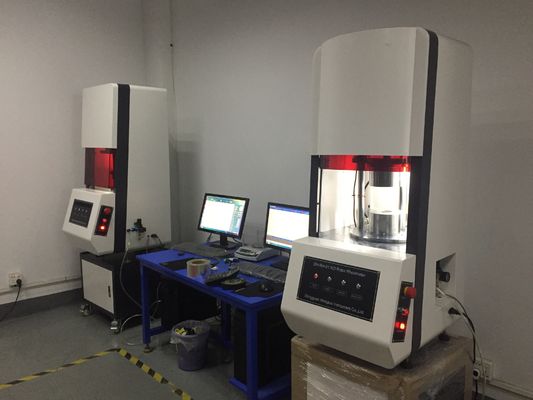

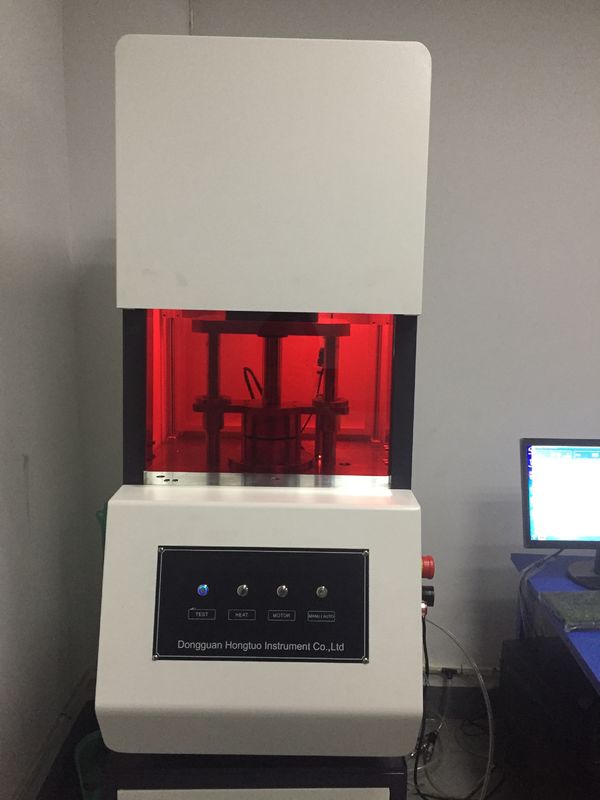

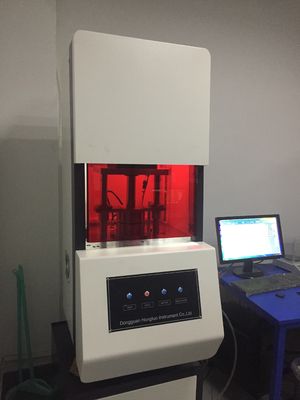

►Detail Images
►Packing
