Rubber Rheometer Mooney Viscometer Price, Mooney Rubber Viscometer Manufacturer DH-MV-01
►Introduction
A. High-precision sensor: 0 to 100 Mooney values. The Mooney accuracy is within ±0.5 Mooney. Resolution: 1/10 Mooney
B. Control system: computer control and interface board for data collection, preservation, processing and printing test results and curve processing.
C. Rotary system: The number of gears is used to reduce the speed of Electronic Products + gear reducer + reduction gears. Rotor speed: 2±0.02r/min.
D. Temperature control system: Using Intelligent digital temperature control instrument, real-time Automatism adjusts PID control parameters. Temperature control range 0--200 °C, temperature control accuracy ≤ ± 0.3 °C, temperature resolution 0.1 °C.
E. Data transmission method: RS232 transmission

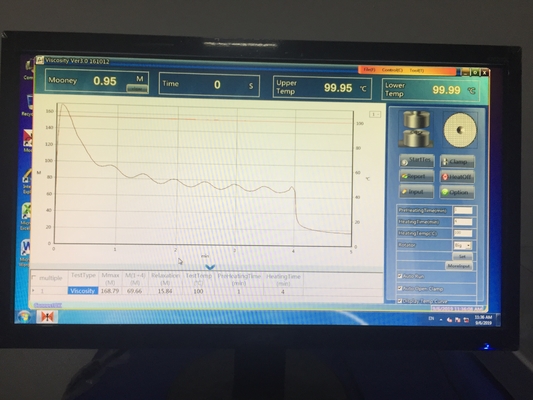

F. Display mode: Viscosity-106+WIN-XP test software computer screen display, plus excellent user software and advanced hardware equipment make the whole measurement very convenient, fast, accurate and pleasant.
G. Rotor: Cr6wv material, the larger rotor is Φ38.10 ± 0.03 plane tooth number 24, the smaller rotor is φ30.48 ± 0.03 plane tooth number 19.
F. Measurement and control mode: humanized measurement and control method, mouse click-to-use or host panel touch button.
►Main Technical Parameters
| Temperature range |
0-200°C |
| Temperature measurement accuracy |
≤±0.3°C |
| Control accuracy |
≤±0.3°C |
| Temperature Resolution |
0.1°C |
| Torque range |
0-100 Mooney |
| Calibration accuracy |
100±0.5 Mooney |
| Rotor speed |
2±0.02 rev/min |
| Measurement time |
0-200 points Resolution 1 second |
| Ambient temperature |
0-35°C |
| Relative humidity |
<80 |
| Test pressure |
11.5KN ±0.5KN |
| Gas distribution |
0.45-0.6MPA |
| Power supply |
AC 220V 1KVA |
| Machine size |
about 660×570×1300mm |
| Machine weight |
about 210Kg |
►Detail Images
