DIN Rubber Abrasion Resistance Tester, DIN Abrasion Tester, DIN Abrasion Testing Machine
Applicaion
Suitable to determine the wear resistance of elastic material, rubber, tires,conveyor belts,shoe soles, soft synthetic leather and other materials.
Principle
Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measure
abrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed
to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to
the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the value
of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume abrasion.
Specifications
| Roll diameter |
150mm |
| Fixture lateral displacement |
4.2mm/hoop each lap |
| Rooling speed |
40rpm |
| Volume |
95*66*31cm |
| Weight |
50kg |
| Power |
220V 50HZ |

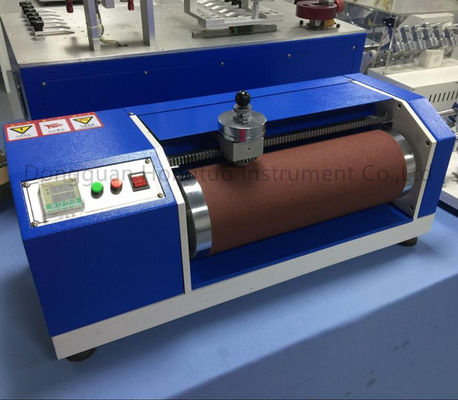

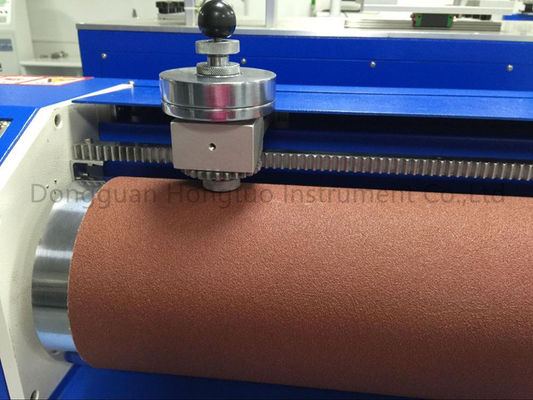

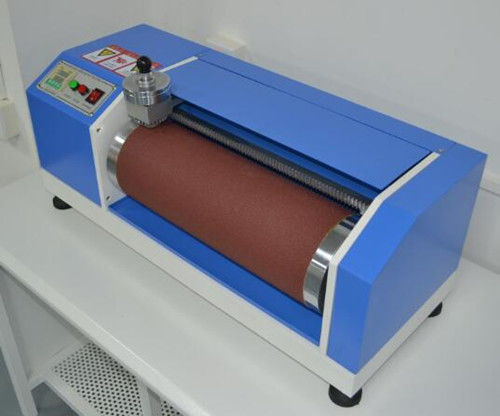

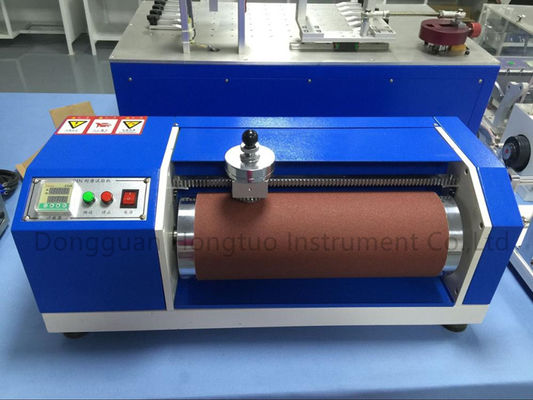

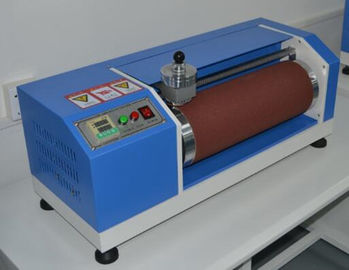

Detail Images

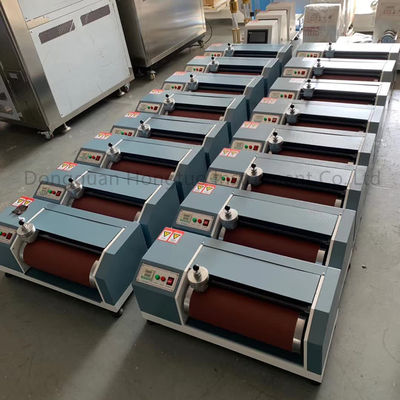

Packing
