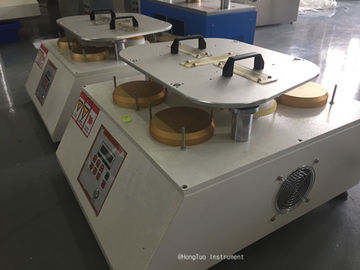

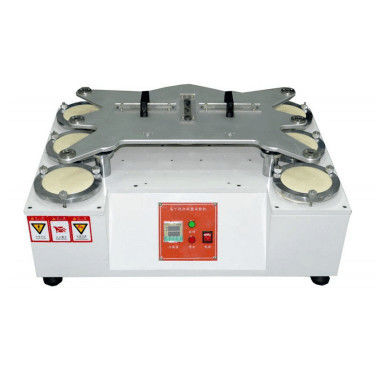

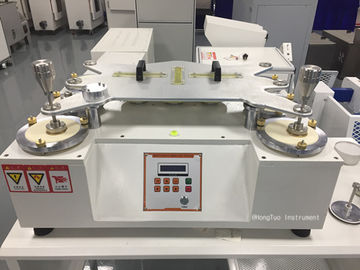

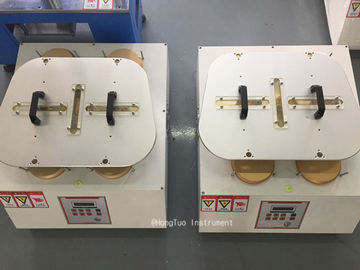

ISO 12947 Fabric Martindale Abrasion and Pilling Testing Machine, Electronic Martindale Abrasion Tester Machine
Summary:

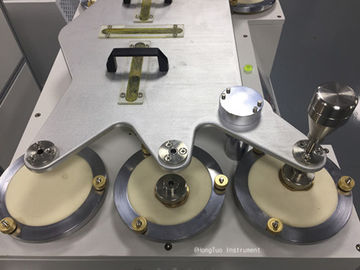

Martindale abrasion tester subjects a circular specimen (38mm in diameter, and effective diameter is 28.8mm) to a defined load and rubs against an abrasive medium (i.e. standard fabric) in a translational movement tracing a Lissa-jous figure. The specimen holder, containing either specimen or abrasive medium depending on which method is being used, is additionally freely rotatable around its own axis perpendicular to the plane of the horizontal. The evaluation of the abrasion resistance of the textile fabric is determined from the inspection interval to breakdown, the mass loss the test specimens, assessment of the appearance change.
Standards: GB/T21196-2007,GB/T4802.2-2008,GB/T13775,FZ/T20020,ASTM D4970,ISO12945-2ASTM D4966,ASTM D3886,ISO12947,JIS L1096,IWS,TM196,TM112,M&S.
Application: Used for testing the performance of the wearing resistance, abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.
Technical characteristics:
| Number of working position |
4,6 or 8 |
| Counter range |
0~99999 |
| Max stroke |
horizontal: 60.5±0.5mm
vertical: 24±0.5mm
|
| pressure weight: |
a. specimen holder: 200±1g
b. load piece for apparel & household textiles:395±2g
c. load piece for workwear & upholster:594±2g
d. stainless steel plate:260±1g
|
| Abrader diameter |
type A 200g(1.96N) (9KPa),¢ 28.8 -0.084mm
type B 155g(1.52N)(12KPa),¢ 90 -0.10mm
|
| Abrader speed |
50-2r/min |
| Pressing weight |
2385±10g |
| Instrument size |
885×600×410mm |
| Power supply |
Ac220V 50Hz 500W |
| Weight |
65kg |
