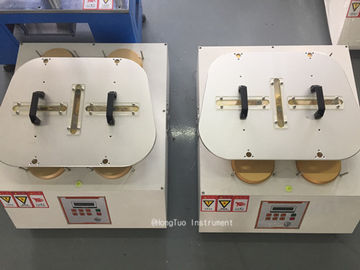

Textile Fabric Lab Equipment Martindale Abrasion and Pilling Tester, Martindale Abrasion Test Method for Fabric
Apparatus Purpose

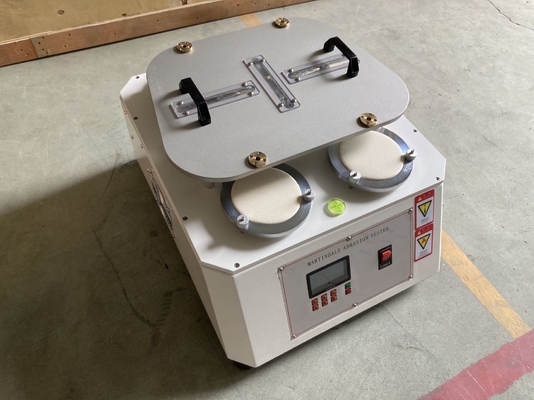

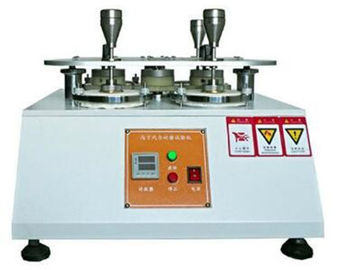

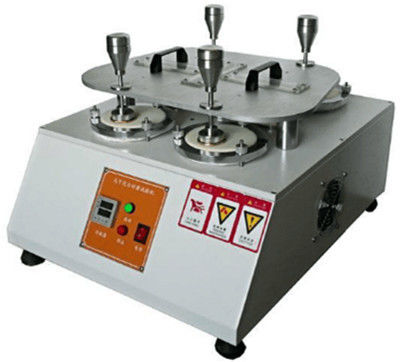

The Martindale Abrasion Tester is an ideal and advanced instrument to be used for determination of the abrasion resistance of textile fabrics. Fabrics of all types may be tested by this unit, including woven, non-woven, and knit apparel fabrics, household fabrics, industrial fabrics, and floor coverings, with fabric pile depth of less than 2mm.

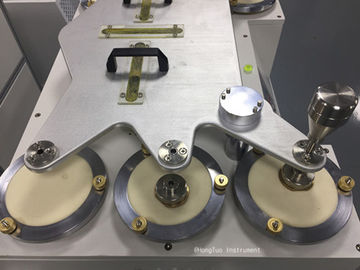

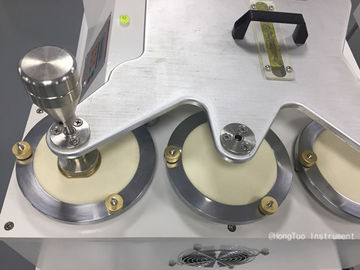

This machine have four sample clamp, can testing four sample at the same time. Via motor drive land out in motion friction device under certain load doing reciprocating friction testing determine the effect of the abrasion.To judge the level of sample and provide reference data for material selection.
Applicable Standards
ISO 5470
ISO 12945-2
ISO 12947-2
Application: Used for testing the performance of the wearing resistance, abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.
Technical characteristics:
| Number of working position |
4,6 or 8 |
| Counter range |
0~99999 |
| Max stroke |
horizontal: 60.5±0.5mm
vertical: 24±0.5mm
|
| pressure weight: |
a. specimen holder: 200±1g
b. load piece for apparel & household textiles:395±2g
c. load piece for workwear & upholster:594±2g
d. stainless steel plate:260±1g
|
| Abrader diameter |
type A 200g(1.96N) (9KPa),¢ 28.8 -0.084mm
type B 155g(1.52N)(12KPa),¢ 90 -0.10mm
|
| Abrader speed |
50-2r/min |
| Pressing weight |
2385±10g |
| Instrument size |
885×600×410mm |
| Power supply |
Ac220V 50Hz 500W |
| Weight |
65kg |
