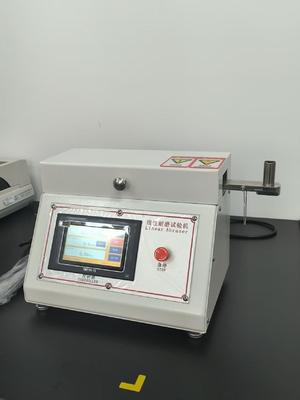

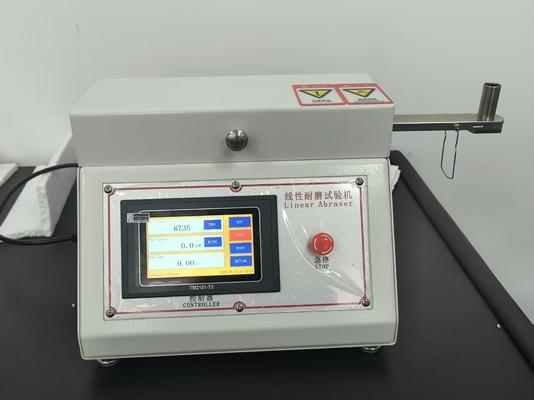

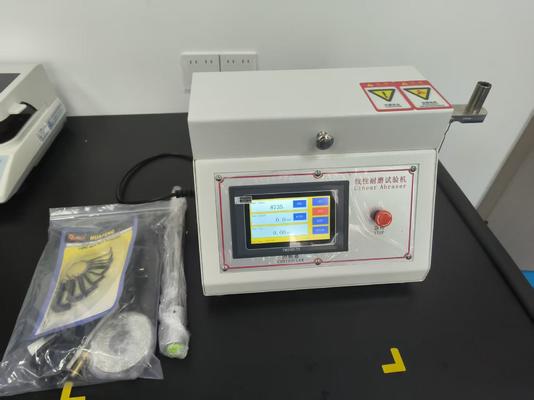

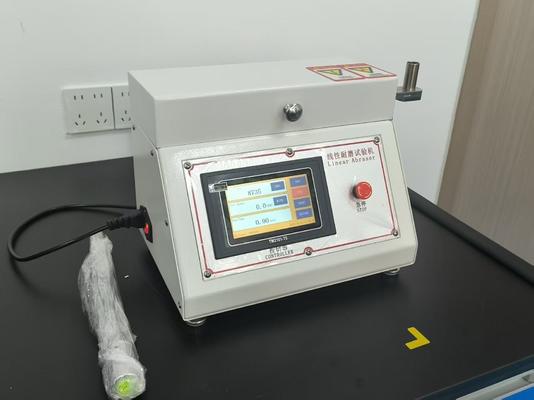

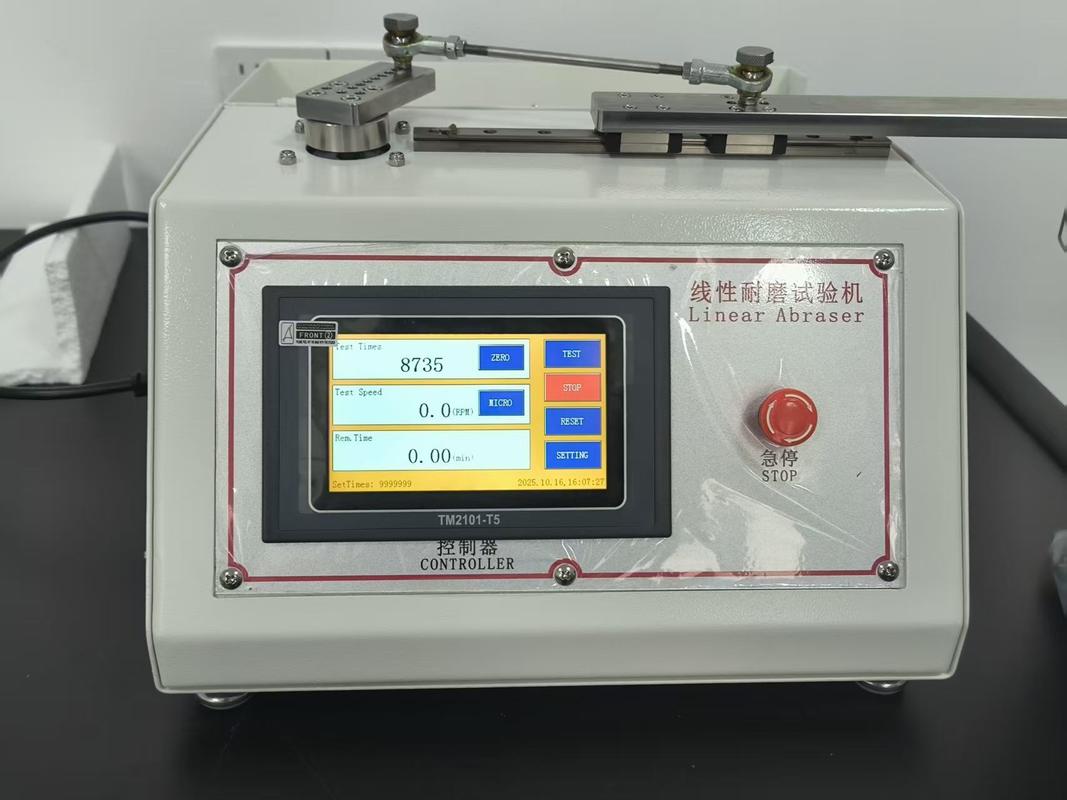

Taber Linear Abrasion Tester DH-TA-02
Overview:
The linear abrasion tester is used to evaluate the abrasion resistance, scratch resistance (single or multiple scratches) and color transferability (usually resistance to friction discoloration or rubbing fastness) and so on. Both dry abrasion test and wet abrasion test can be performed.
Application:
It can test samples of any size or shape. It is ideal for the abrasion test of products with contoured surface and polished surface characteristics (such as: computer mouse and other computer or IT product plastic surface paint abrasion resistance test), It is applied to universal plastics, auto parts, rubber, leather and textiles, electroplating, freely disassembled components, paints, printed patterns and other products.
Standards:
ASTM D3884,ASTM D1175,ASTM D1044,ASTM D4060,TAPPI T476,ISO 9352,ISO 5470-1,JIS K7204,JIS A1453,JIS K6902,JIS L1096,JIS K6964,JIS L1096,JIS K6964,DIN 52347,DIN 53109,DIN 53754,DIN 53799,conforms to CE standards
Features:
1. Parameters such as moving distance, rotation speed, number of revolutions, and load can be set.
2. A variety of different wear media and accessories can be selected. (Can choose sample fixing table and other optional accessories to do the damage test, alcohol resistance test, coin scratch resistance test, etc.)
To ensure the stability and accuracy of the test: The general grinding head is similar in size and shape to the eraser head at the end of a pencil, and is made of high-quality abrasion materials. Can ensure the stability of the test.
Standard configuration:

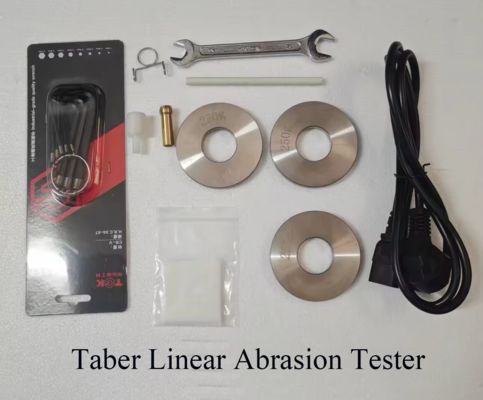

Including 5750 main machine, 3 pcs of 250G disc-shaped weights.
1).5 optional moving distances: 0.5”, 1”, 2”, 3” and 4”; special moving distances can be customized.
2). The number of test revolutions can be set, up to 999,999 revolutions (note that the grinding head rubber may need to be replaced during this period).
3).Adjustable moving speed of 2~60 reciprocating/min. Among them, the six speeds of 2, 15, 30, 40 and 60 round trips/min are TABER standard measurements. The higher moving speed of this machine is 60 round trips/min.
4). The load can be selected.
Standard load range: 350g measuring rod, 3 pcs of 250g weights is randomly equipped.
(Various weights can also be customized)
