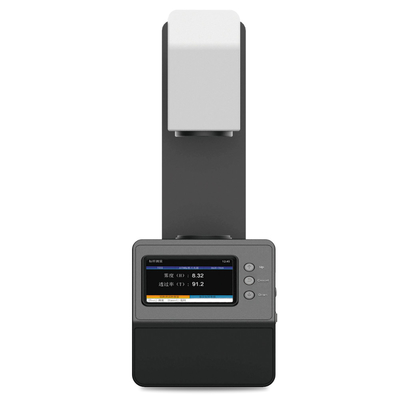

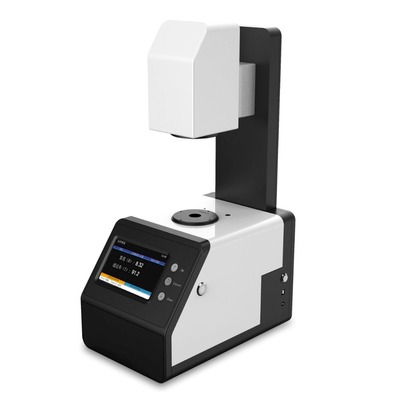

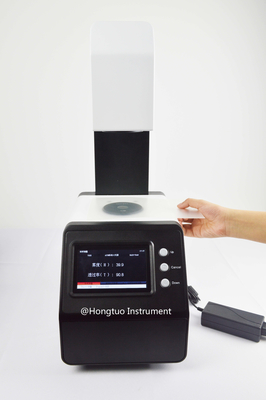

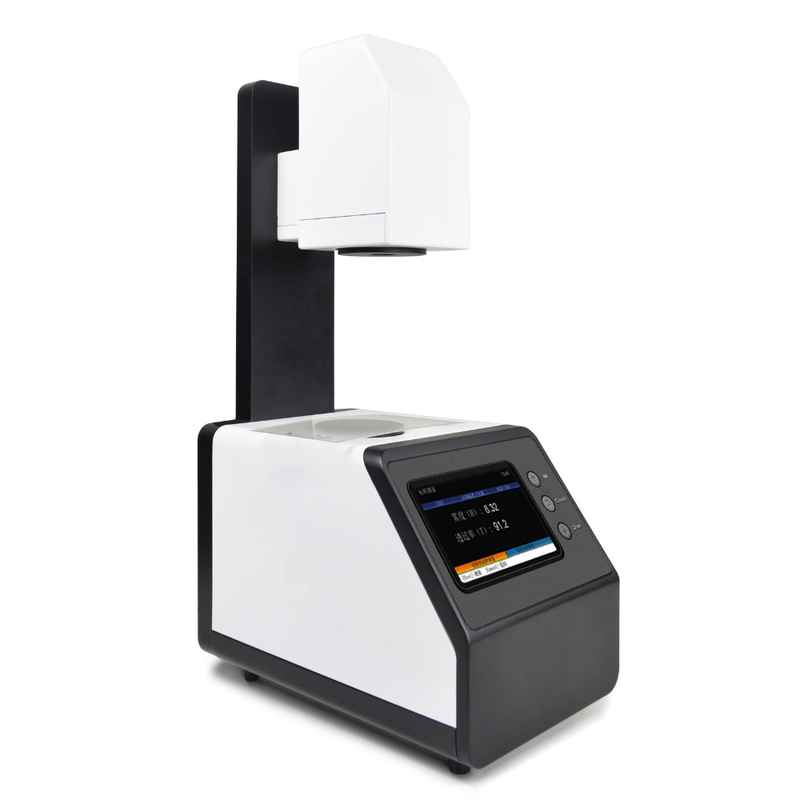

Haze Meter Measuring Instrument Film Screen Light Transmittance Tester Good Price DH-TH-100
It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.
Application: glass, plastic, film, display screen, packaging and other industries.
Part 1. Instrument Advantages
1). It conforms to both ASTM and ISO international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.
2). Instrument is with a calibration certification from a third party laboratory.
3). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.
4). Three kinds of illuminants A,C and D65 for haze and total transmittance measurement.
5). 21mm test aperture.
6). Open measurement area, no limit on sample size.
7). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.
8). It adopts LED light source whose lifetime can reach 10 years.
Part 2. Technical Data
| Model |
Professional Edition Haze Meter |
| Illuminants |
D65,A,C |
| Standards |
ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136 |
| Test Parameter |
ASTM and ISO (HAZE),Transmittance (T) |
| Test Aperture |
21mm |
| Instrument Screen |
5 inches color LCD screen |
| Haze Repeatability |
Φ21mm aperture, Standard Deviation: within 0.08(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration) |
| Transmittance Repeatability |
≤0.1 unit |
| Geometry |
Transmittance 0/D (0 degree illumination, diffused receiving) |
| Integrating Sphere Size |
Φ154mm |
| Light Source |
400~700nm full spectrum LED light source |
| Test Range |
0-100% |
| Haze Resolution |
0.01 unit |
| Transmittance Resolution |
0.01 unit |
| Sample Size |
Open space, no size limit |
| Data Storage |
20,000 pcs of samples |
| Interface |
USB |
| Power Supply |
DC12V (110-240V) |
| Working Temperature |
+10 – 40 °C (+50 – 104 °F) |
| Storage Temperture |
0 – 50 °C (+32 – 122 °F) |
| Size |
L x W x H: 310mmX215mmX540mm |
Part 3. Haze Meter Application
