Name: DH-WG60G Small Caliber Precision Gloss Meter Price Sheen Marble Portable Gloss Tester 0-2000Gu
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: DH-WG60G
Availability: InStock

Home Products Others

DH-WG60G Small Caliber Precision Gloss Meter Price Sheen Marble Portable Gloss Tester 0-2000Gu

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	DahoMeter
Certification:	CE, FCC
Model Number:	DH-WG60G

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	standard exporting wooden package
Delivery Time:	3-5 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Application::	Gloss Meter Glossmeter	Projection Angle:	60°
Measurement Range:	0-2000Gu	Measuring Spot:	3mm*1mm

DH-WG60G Small Caliber Precision Gloss Meter Price Sheen Marble Portable Gloss Tester 0-2000Gu

Application:

DH-WG60G gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on Non-metallic materials like coatings, plastic, printing ink, paint, wood, marble, granite, polishing brick, porcelain, paper, stoving varnish and vitrified polished etc. Metal materials (High gloss materials) like Iron, electroplating, anodizing, copper, stainless, mirror etc.

Features:

(1)High accurate and consistent capacity;

(2)Automatic measure, Statistical Mode, Tolerance determination, manually entering standard samples gloss data;

(3)Humanized design, good man-machine communication interface;

(4)Store 500 groups records;

(5)PC software support, can output many kinds of format of report, data transmission etc.

Specifications:

Product Name	Gloss meter
Model	DH-WG60G
Measurement Range	0-2000Gu
Application	Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material.
Instrument Dimensions	122x34x60mm
Projection Angle	60°
Measuring Spot	(ellipse: long axisminor axis)3mm1mm
Measuring Mode	Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode
Standard Sample Setting	Manually setting/bring out stored data for setting/manually setting tolerance
Data Storage	500 groups (set standard sample in any stored data, user-define the tolerance range)
Language	Chinese/English
Output	connect the micro printer to realize real-time output of measured data
Division Value	0.1Gu
Repeatability	0.2Gu
Reproducibility	0.4Gu
Indication Error	1.0Gu
International Standard 60°	ISO－2813,ASTM－C584,ASTM－D523,DIN－67530,ASTM－D2457,JND-A60,JND-P60
National Standard 60°	GB 9754,GB 9966,GB 8807

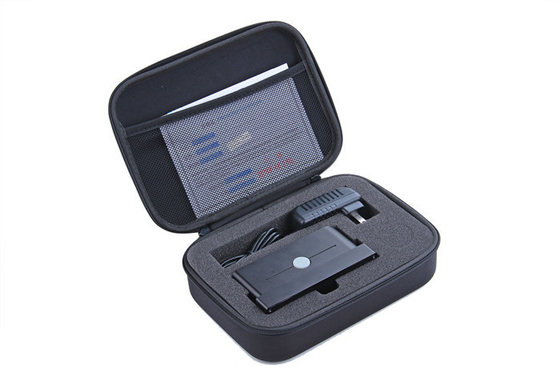

Standard Accessories	Power adapter/user manual/warranty certification/standard board/software GlossW
Optional Accessories	micro-printer

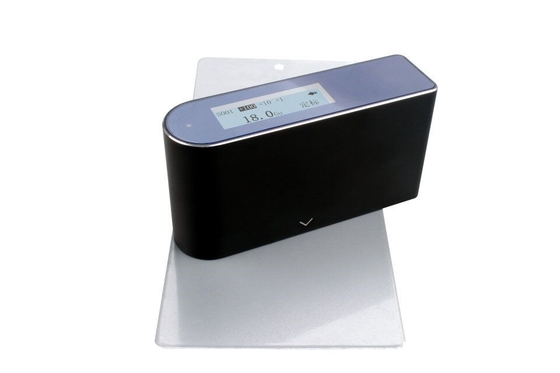

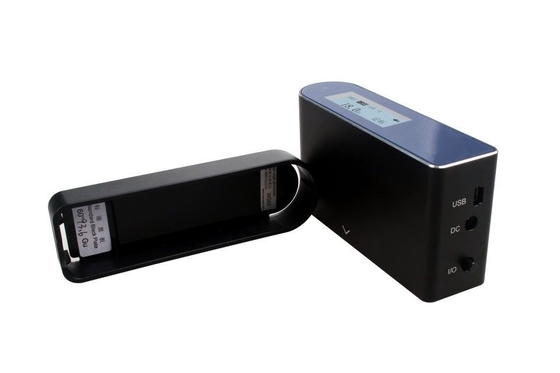

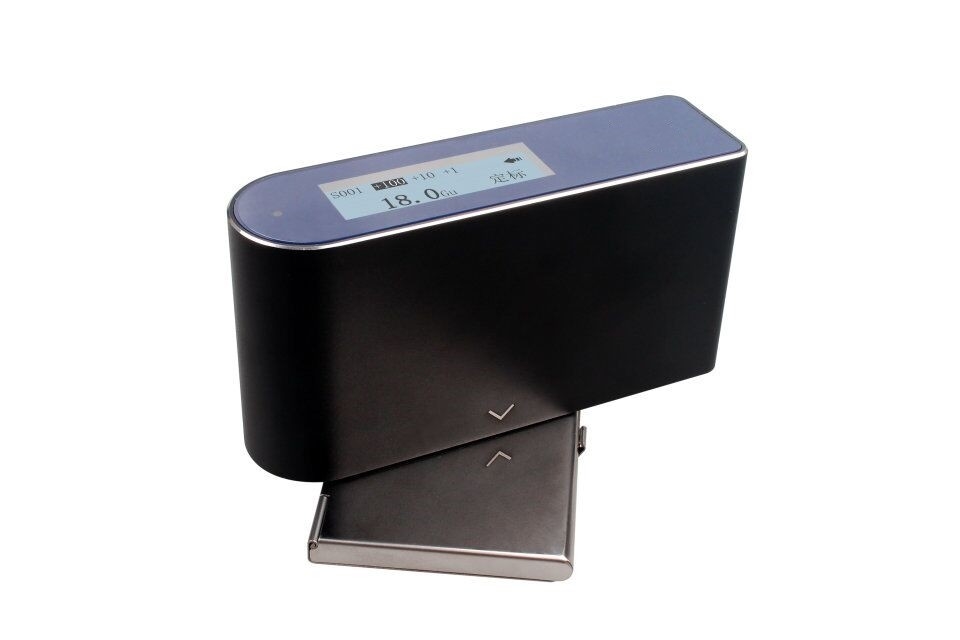

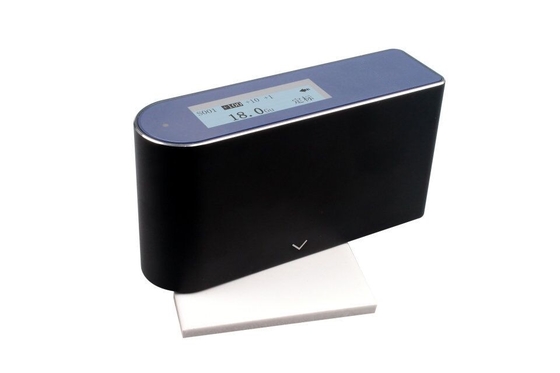

Details Images:

DH-WG60G Small Caliber Precision Gloss Meter Price Sheen Marble Portable Gloss Tester 0-2000Gu
