Hot Sale Digital 60 Angle Degree Gloss Meter Glossmeter 0-200Gu DH-WG60
Application:
DH-WG60 adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on coatings, printing ink, paint, paint, wood, marble,granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, more stable performance, more durable, more comfortable.
Specifications:
| Product Name |
Gloss meter |
| Model |
DH-WG60 |
| Measurement Range |
0-200Gu |
| Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
| Instrument Dimensions |
122x34x60mm |
| Projection Angle |
60° |
| Measuring Spot |
(ellipse: long axis*minor axis) 8mm*4mm |
| Measuring Mode |
Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode |
| Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
| Data Storage |
100 groups (set standard sample in any stored data, user-define the tolerance range) |
| Language |
Chinese/English |
| Output |
connect the micro printer to realize real-time output of measured data |
| Division Value |
0.1Gu |
| Repeatability |
0.2Gu |
| Reproducibility |
0.4Gu |
| Indication Error |
1.0Gu |
| International Standard 60° |
ISO－2813,ASTM－C584,ASTM－D523,DIN－67530,ASTM－D2457,JND-A60,JND-P60 |
| National Standard 60° |
GB 9754,GB 9966,GB 8807 |
| Standard Accessories |
Power adapter/user manual/warranty certification/standard board |
| Optional Accessories |
micro-printer |

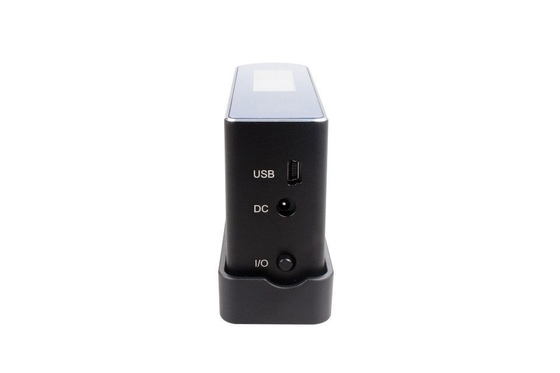

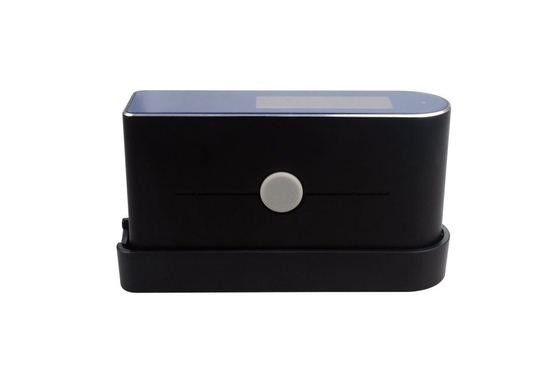

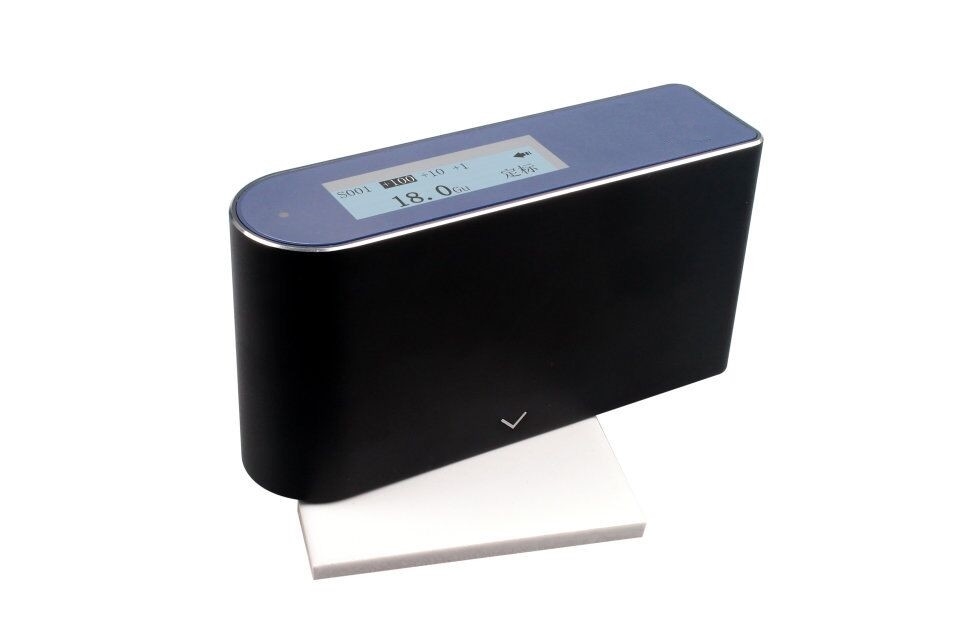

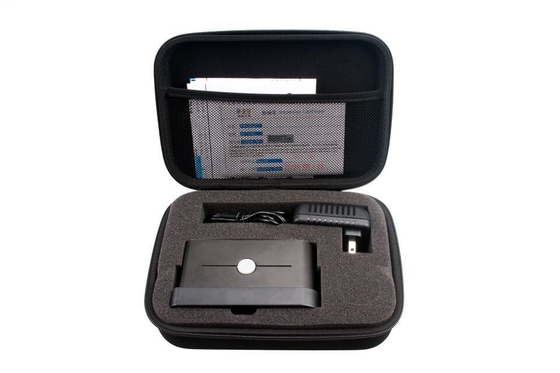

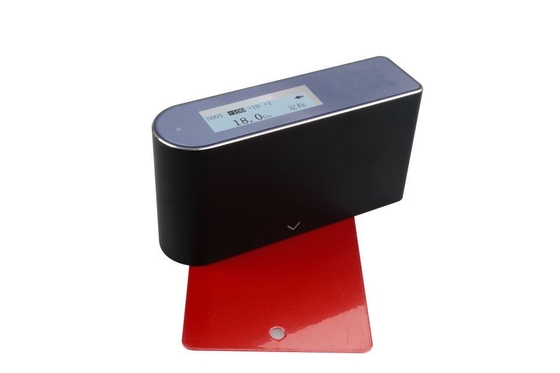

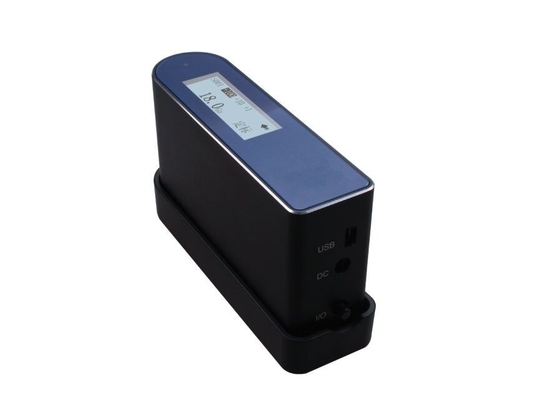

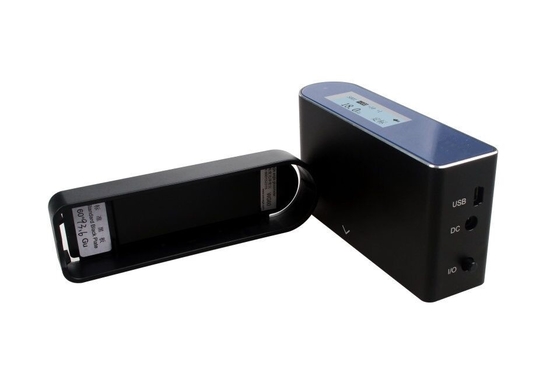

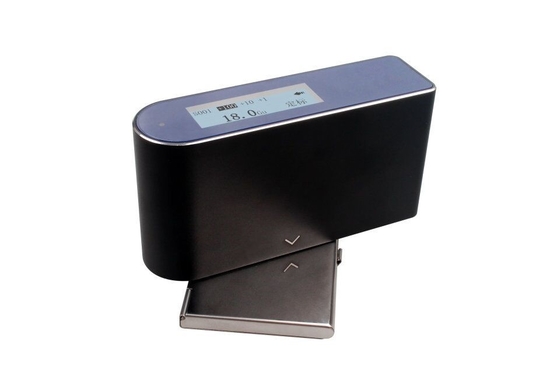

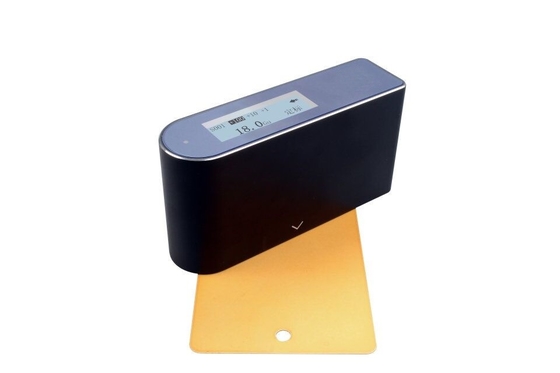

Details Images:
