    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Certification: ISO, FCC
    Model Number: HT-1843-22D

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to 2999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 to 8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Izod Pendulum Impact Tester Testing Before Delivery: Yes
    After-sale Customer Service: Yes

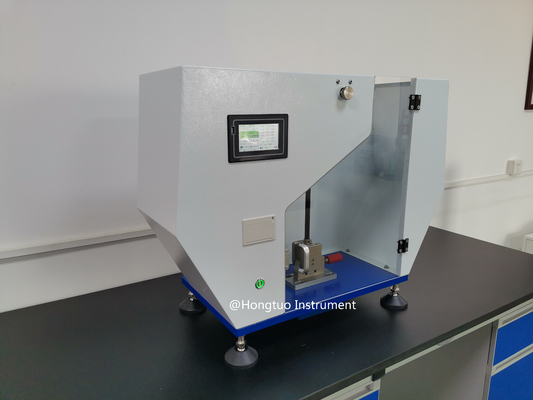

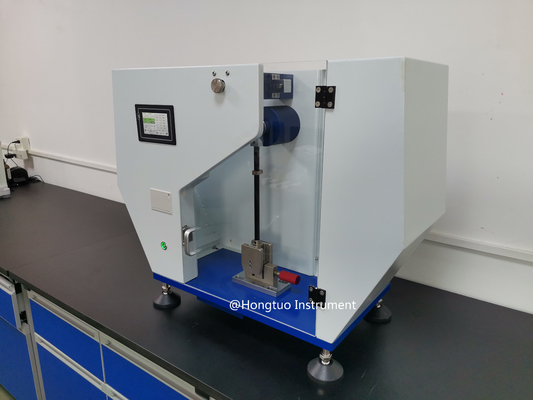

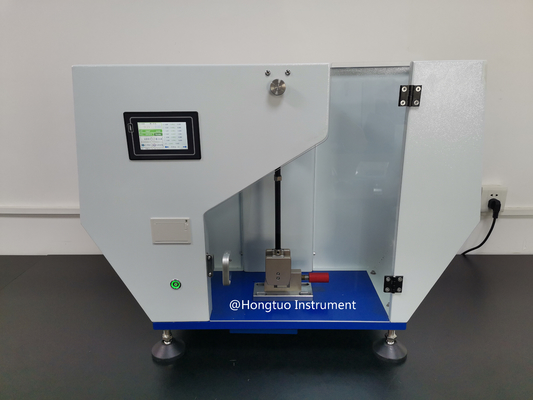

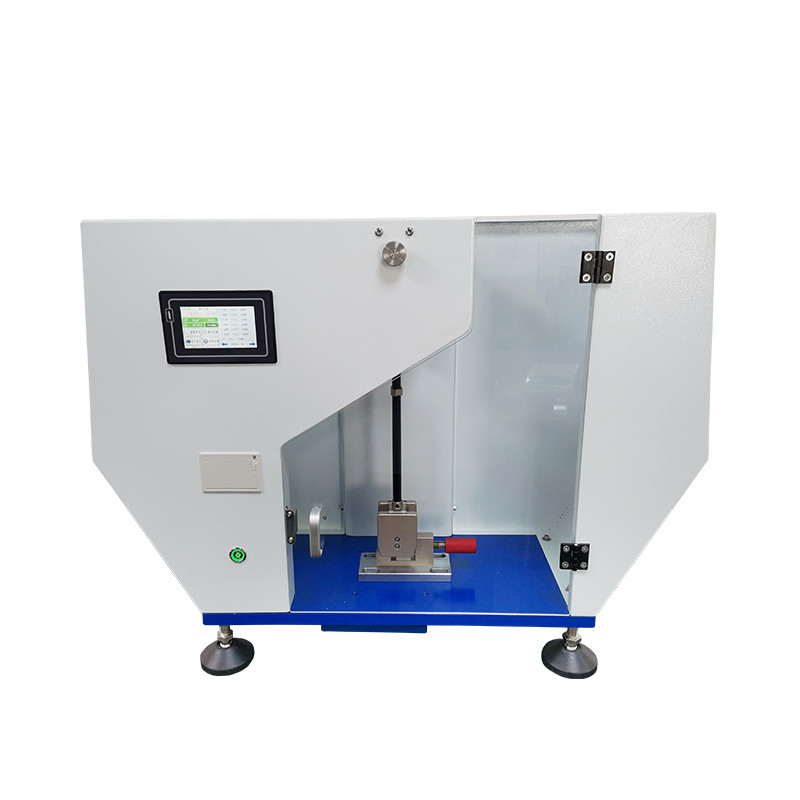

    Digital Plastic Izod Impact Testing Machine, Impact Testing Equipment





    Usage: Test the impact toughness of the non-metallic materials.Suitable material: plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials.



    Application: scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.



    Performance standards

    ISO180—2000 Determination of Plastics - Hard Materials Izod Impact Strength

    GB/T1843—2008 Rigid Plastic Izod Impact Test Method

    JB/T8761—1998 Plastics Izod Impact Testing Machine

    ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum



    Product Features

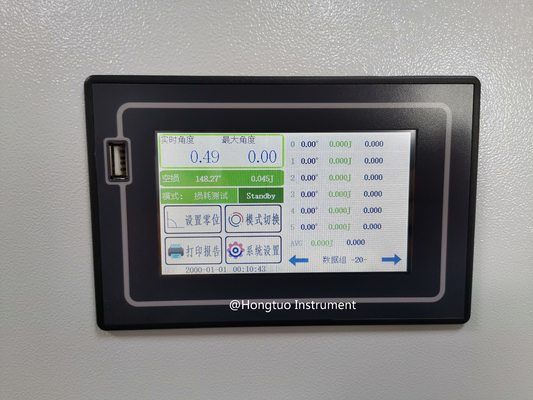

    A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;

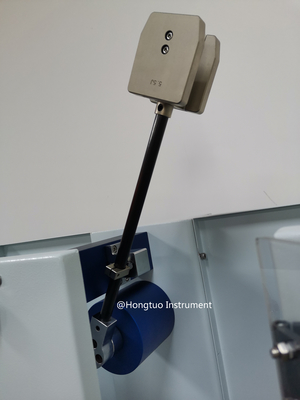

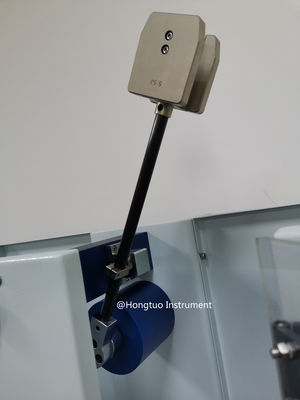

    B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.

    C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;

    D. Aerodynamic impact hammer and FAG Bearings greatly reduce mechanical friction losses

    E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;

    F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.

    G. Built-in mini printer to print the test data



    Technical Specifications

    Displaying method LCD in English
    Angle sensor Omron encoder,accuracy 0.01°
    Impact speed 3.5m/s
    Pendulum energy

    (IZOD-5.5D)1J,2.75J,5.5J

    (IZOD-22D)11J,22J

    Pendulum angle 150°
    Distance from the center of pendulum to striking edge 335mm
    Horizontal distance from striking edge to jaws 22mm
    Cutter edge radius R=0.8±0.2mm
    Weight 85kg
    Power voltage AC220V±10% 50HZ





    Digital Plastic Izod Impact Testing Machine, Impact Testing EquipmentDigital Plastic Izod Impact Testing Machine, Impact Testing EquipmentDigital Plastic Izod Impact Testing Machine, Impact Testing EquipmentDigital Plastic Izod Impact Testing Machine, Impact Testing EquipmentDigital Plastic Izod Impact Testing Machine, Impact Testing Equipment
