Cost-effective Color Meter Digital Optical Portable Spectrophotometer DH-WS2300
Application:
WS2300 is a cost-effective spectrophotometer designed by our company, which adopts advanced electronic circuit system and perfect optical system, which has the advantages of high precision, good stability and strong anti-interference. It provides great reliability and convenience for color control in all walks of life.
Caliber Application:
a.Facula 4mm (Caliber Φ6mm): Small and cambered surface. b.Facula 8mm (Caliber Φ11mm): Flat surface. Such as paint, plastic, coating, print, anodizing, ceramics, film, glass, pigment etc. c.Caliber Φ16mm: Textured, Soft and Uneven surface. Such as Textile, fabric, Leather, Wooden sponge and hairpiece etc. d.Caliber Φ16mm+ Multi-function accessory: Liquid,Powder,Pulp,Granule etc.
Main features:
1.Accurate spectral data and Lab values Adopt high - precision spectroscopic system, accurately separate different wavelengths of light. 2.Multiple color space, Color difference formula, Light source
3.Full- featured and concise interface An interface displays all the details, including color data, color simulation, measurement conditions, spectral curves, etc. 4.PC software extension To analysis, upload, download, print and other functions of color data.
Specifications:
| Model |
WS2300 |
| Geometric Conditions |
CIE Recommended lighting reception method: d/8 |
| Color Space |
CIEL*a*b*,CIEL*C*h,Yxy |
| Standard Light Source |
A,C,D65,F2,(CWF) |
| Color Difference Formula |
CIE△E * ab, CIE△E * Ch |
| Light Source |
Combination LED |
| Sensor Array |
CCD@2048 Pixels |
| Spectral Way |
Diffraction grating |
| Measuring Caliber |
φ11mm |
| Observer |
CIE10°standard observer,CIE2°standard observer |
| Wavelength coverage |
400nm~700nm |
| Wavelength interval |
10nm |
| Measuring interval |
1.5 seconds |
| Measuring range |
L: 0 to 100 |
| Repeated accuracy |
△E＜0.08 (take the deviation average after 30 times measuring the whiteboard) |
| Table Difference |
△E＜0.5 (Measure the X-Rite 24-color card) |
| Battery Power |
Measuring 10000 times |
| Data storage Capacity |
Storage standard sample 100 |
| Storage Sample |
16,000 |
| Light Source Life |
More than 20,000 hours |
| Display Screen |
TFT true color 2.8inch@(16:9) |
| Size |
199*68*90mm |
| Size of Exterior Package |
38*32.5*18.5cm |
| Weight |
2.7kg |
| Humidity Temperature |
Operating Temperature: -10℃~40℃ |
| Storage Temperature |
-20℃~50℃ |
| Working Humidity |
Relative humidity less than 85%,without condensation |
| Standard Accessories |
Power adapter, standard white board, standard black cavity, lithium battery, user manual |
| Optional Accessories |
Software,Micro printer |

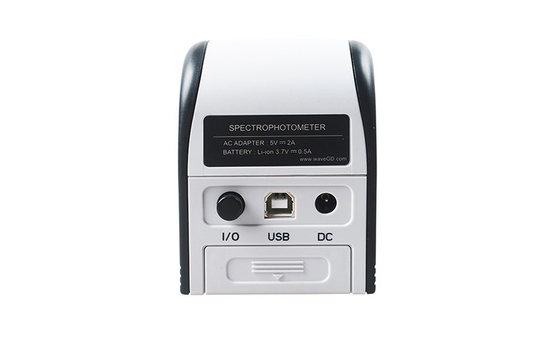

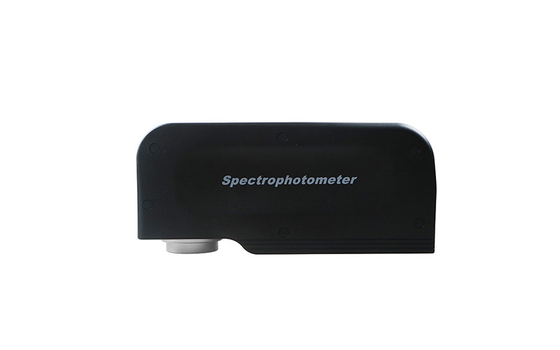

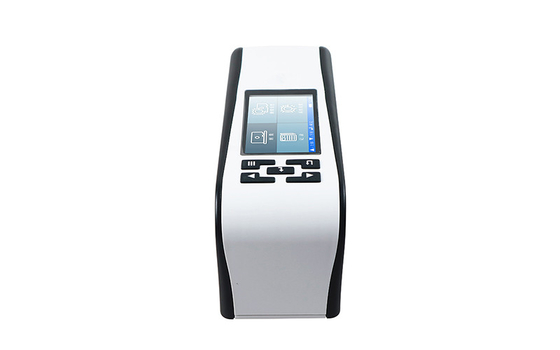

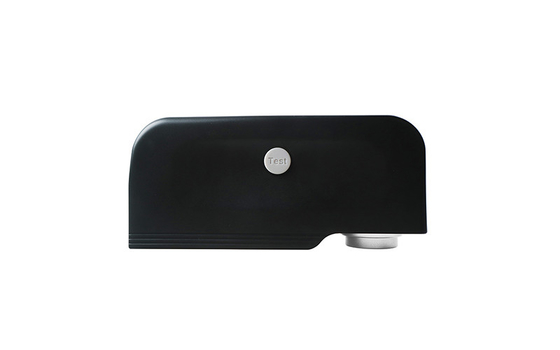

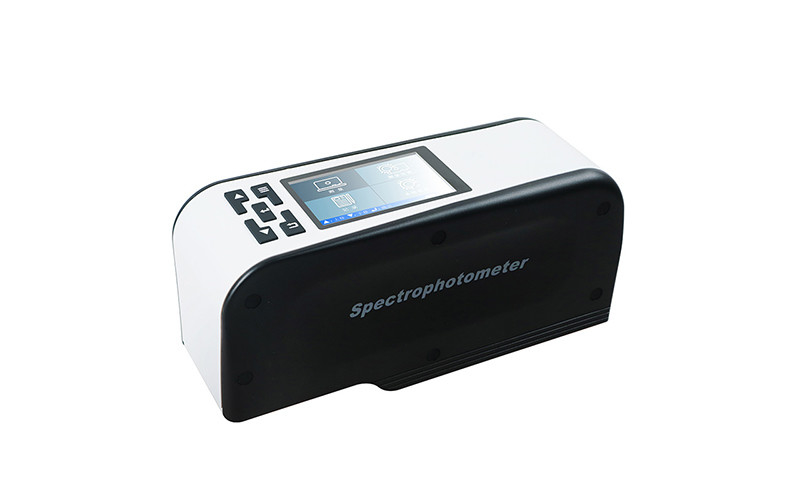

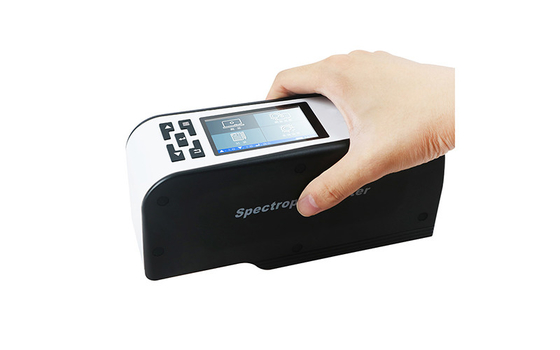

Details Images:
