    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: DahoMeter
    Certification: ISO, FCC
    Model Number: DH-WF32

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 2 to 5 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Application:: Handheld Colorimeter Display Mode: CIELAB、CIELCH、CIEXYZ、CIELUV、HunterLAB、sRGB
    Color Difference Formula: △E*ab、△ECMC、△EISO、△ECIE94、△EFCMⅡ、△ELuv、△Ehunter、△EsRGB Measurement Caliber: φ4mm/φ8mm/φ16mm Alternative
    Size Of Exterior Package: 400*240*340mm

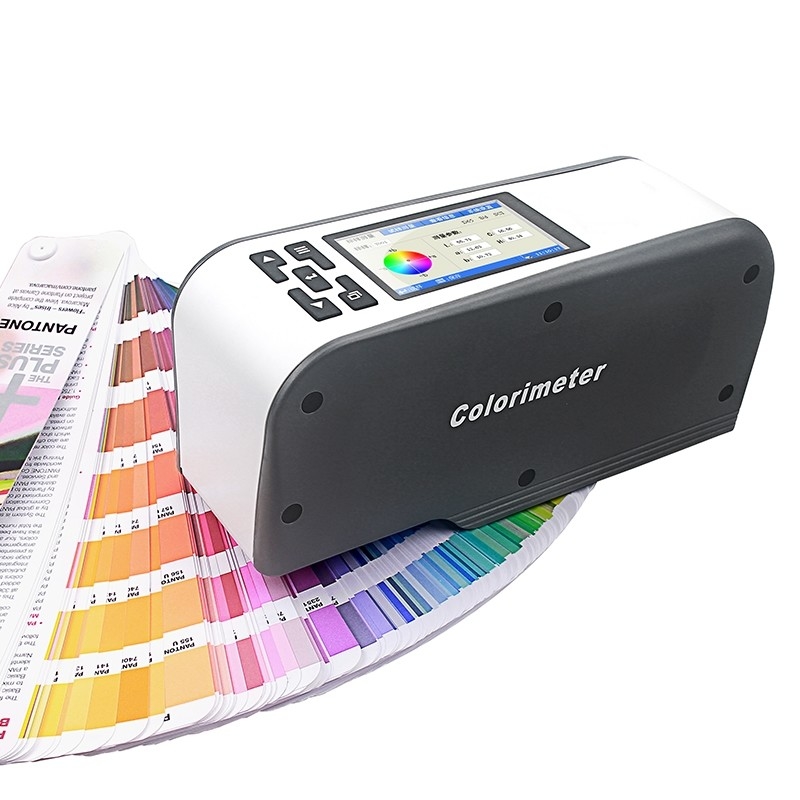

    Digital Plastic Testing Color Difference Meter Photo Colorimeter CIE Color Measure Meter DH-WF32




    Application:

    WF colorimeter includes a series of precise, stable colorimeters,. Through accumulating years of designing and researching, it can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food, medicine and other industry color quality control, color control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color. WF series colorimeter measurements can configure different measuring caliber (4mm, 8mm, 16mm) according to the user's needs. Caliber 4mm version is a specially designed, high performance precision colorimeter, especially suitable for small area, cambered and other special surface. It can bring great convenience for the user in the color quality detection of small devices, small parts and special type of arc. Caliber 8mm version is a general-purpose color difference meter, mostly used on flat surface considering the general method for detecting color, all walks of life habit, and the measuring caliber requirements of various materials. 8mm caliber version provides great convenience and trustworthy reliability for all industry to discuss the color technology, because of its versatility, its tiny table difference, and stability. Caliber 16mm version is applied on special measurements, such as the textured object, pitting, grainy surface or relatively large size, flexible and soft analyte.


    Main features:


    WF32 colorimeter is a high precision, high stability, versatile colorimeter. WF32 has eight kinds of measuring light source (A, D50, D65, C, F2, F7, F11 and F12); six kinds of color modes (CIE1976LAB, CIEXYZ, CIELUV, HunterLAB, sRGB, white yellowness); eight kinds of color difference formula (△ E * ab, △ ECMC, △ EISO, △ ECIE94, △ EFCM Ⅱ, △ ELuv, △ Ehunter, △ EsRGB); three languages ​​patterns (Simplified Chinese, Traditional Chinese and English), and three measurements caliber choice for users. WF32 colorimeter can be whiteness and yellowness measurements and average measurements, with large-capacity data storage space, you also can add mini-printers to do real-time printing measurement data. It can be used with standard "color analysis system" software. WF32 colorimeter detailed parameters as follow: WF32 colorimeter can meet color quality management requirements in all industry coupled with different measuring caliber.





    Specifications:



    Model WF32
    Display Mode CIELAB,CIELCH,CIEXYZ,CIELUV,HunterLAB,sRGB
    Color Difference Formula △E*ab,△ECMC,△EISO,△ECIE94,△EFCMⅡ,△ELuv,△Ehunter,△EsRGB
    Yellowness and Whiteness Ganci whiteness, ISO brightness, YI yellowness
    Illumination Condition CIE Recommendation:8/d 45/0 Optional
    Light Source LED blue excitation
    Sensor Photodiode array
    Measurement Caliber φ4mm/φ8mm/φ16mm Alternative
    Measurement Condition Observer:CIE 10° Standard observer
    Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30)
    Contain light way:SCI SCE
    Measurement Range L: 0 to 100
    Repeated Accuracy △E<0.03 (take the deviation average after 30 times measuring the whiteboard)
    Table Difference △E<0.2
    Measurement Interval 0.5 Sec.
    Average Measuring Function Average measuring frequency: 1-32 times
    Color Simulation Function yes
    Storage Capacity Type sample data : 100 with testing sample data: 20000
    Whiteness/yellowness data: 200
    Language Patterns English/Simplified Chinese/Traditional Chinese
    Quality Control Software software
    Battery Charging Time 8 hrs
    Battery Li-ion battery, 5000 times Measurement
    Lifetime of Bulb 5 years more than 1.6 million measurements
    Display Screen TFT true color 2.8inch@(16:9) Resolution ratio:400x240
    Interface of External USB2.0 (USB-B)- data communication with software RS-232 (115200bps)- connected with micro printer
    Working Temperature Range 0℃-40℃(32℉-104℉)
    Storage Temperature Range -20℃-50℃(-4℉-122℉)
    Humidity Range Relative humidity less than 85%,without condensation
    Weight 700g
    Size 199*68*90mm
    Size of Exterior Package 400*240*340mm

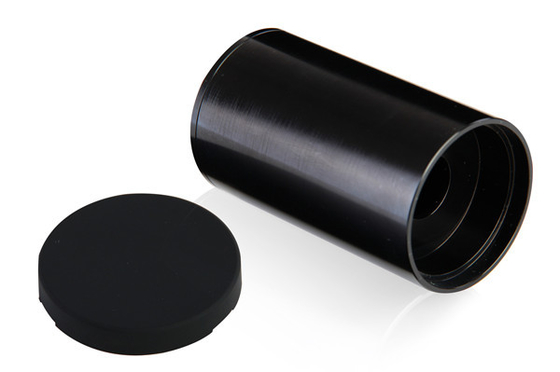

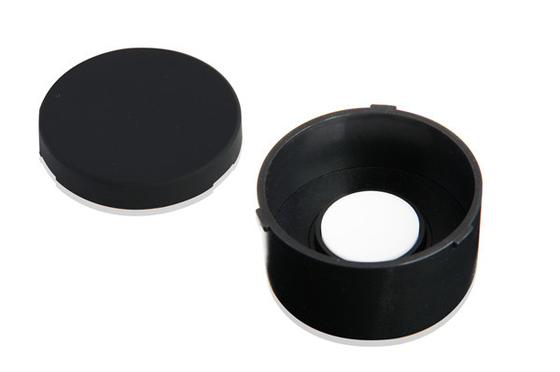

    Standard Accessories Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD/User manual/Warranty card
    Optional Accessories Flour measuring device/Liquid measuring device/Micro printer

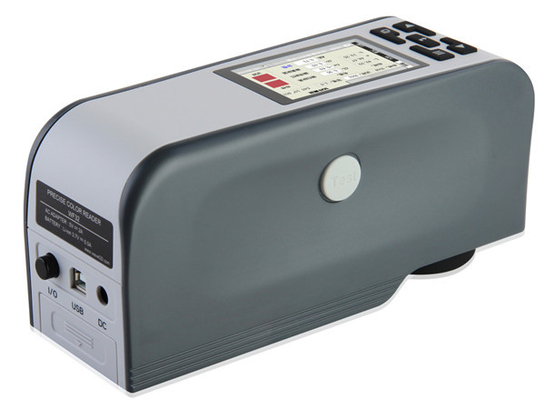

    Details Images:
     Digital Plastic Testing Color Difference Meter Photo Colorimeter CIE Color Measure Meter DH-WF32Digital Plastic Testing Color Difference Meter Photo Colorimeter CIE Color Measure Meter DH-WF32Digital Plastic Testing Color Difference Meter Photo Colorimeter CIE Color Measure Meter DH-WF32
