Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30

Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30

    • Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30
    • Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30
    • Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30
    • Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30
    • Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30
    • Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30
  • Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: DH-WF30

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 2 to 7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Application:: Handheld Colorimeter Display Mode: CIELAB、CIELCH
    Illumination Condition: CIE Recommendation:8/d 45/0 Optional Measurement Caliber: φ4mm/φ8mm/φ16mm Alternative
    Measurement Range: L: 0 To 100

    Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30



    Application:

    WF colorimeter includes a series of precise, stable colorimeters,. Through accumulating years of designing and researching, it can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food, medicine and other industry color quality control, color control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color. WF series colorimeter measurements can configure different measuring caliber (4mm, 8mm, 16mm) according to the user's needs. Caliber 4mm version is a specially designed, high performance precision colorimeter, especially suitable for small area, cambered and other special surface. It can bring great convenience for the user in the color quality detection of small devices, small parts and special type of arc. Caliber 8mm version is a general-purpose color difference meter, mostly used on flat surface considering the general method for detecting color, all walks of life habit, and the measuring caliber requirements of various materials. 8mm caliber version provides great convenience and trustworthy reliability for all industry to discuss the color technology, because of its versatility, its tiny table difference, and stability. Caliber 16mm version is applied on special measurements, such as the textured object, pitting, grainy surface or relatively large size, flexible and soft analyte.


    Main features:

    WF30 colorimeter is a high precision, high stability, versatile colorimeter. WF30 has three measuring light sources (D50, D65 and F11), two color modes (CIE1976LAB, CIELCH), a color difference formula (△ E * ab); two languages ​​patterns (Simplified Chinese and English) and 3 measuring calibers to choose. WF30 colorimeter has a greater capacity of data storage space, you also can add mini-printers to do real-time printing measurement data. It can be used with standard "color analysis system" software.


    Specifications:



    ModelWF30
    Display ModeCIELAB,CIELCH
    Color Difference FormulaE*ab
    Illumination ConditionCIE Recommendation:8/d 45/0 Optional
    Light SourceLED blue excitation
    SensorPhotodiode array
    Measurement Caliberφ4mm/φ8mm/φ16mm Alternative
    Measurement ConditionObserver:CIE 10° Standard observer
    Light source: D50 D65 F11(TL84)
    Contain light way
    :SCI SCE
    Measurement RangeL: 0 to 100
    Repeated AccuracyE<0.05 (take the deviation average after 30 times measuring the whiteboard)
    Table DifferenceE<0.2
    Measurement Interval0.5 Sec.
    Storage CapacityType sample data : 100 with testing sample data: 200
    Language PatternsEnglish/Simplified Chinese
    Battery Charging Time8 hrs
    BatteryLi-ion battery, 5000 times Measurement
    Lifetime of Bulb5 years more than 1.6 million measurements
    Display ScreenTFT true color 2.8inch@(16:9) Resolution ratio:400x240
    Interface of ExternalUSB2.0 (USB-B)- data communication with <color analysis system>software RS-232 (115200bps)- connected with micro printer
    Working Temperature Range0-40℃(32-104℉)
    Storage Temperature Range-20-50℃(-4-122℉)
    Humidity RangeRelative humidity less than 85%,without condensation
    Weight700g
    Size199*68*90mm
    Size of Exterior Package400*240*340mm
    Standard Accessories3000mAH Li-ion battery/AC adapter/USB Data line/CD<Color analysis software>/User manual/Warranty card
    Optional AccessoriesFlour measuring device/Liquid measuring device/Micro printer

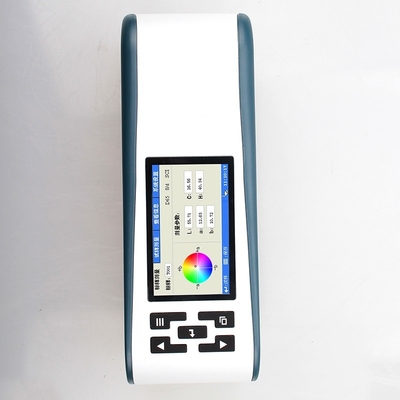

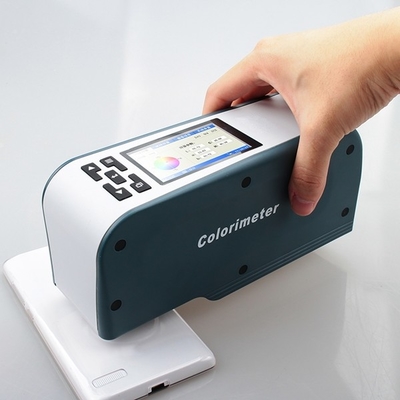

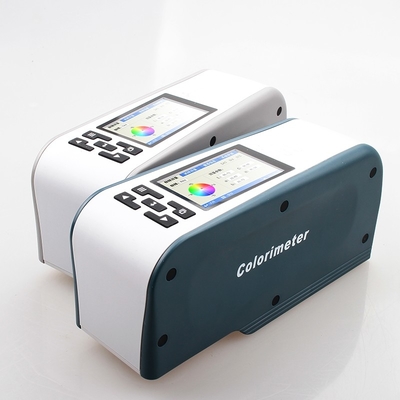

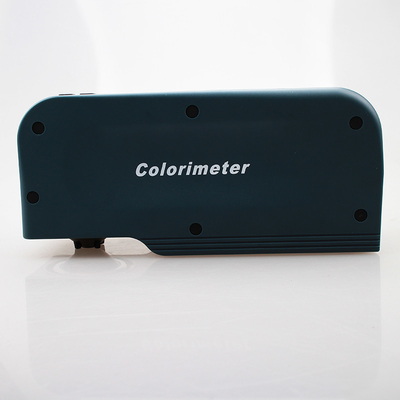

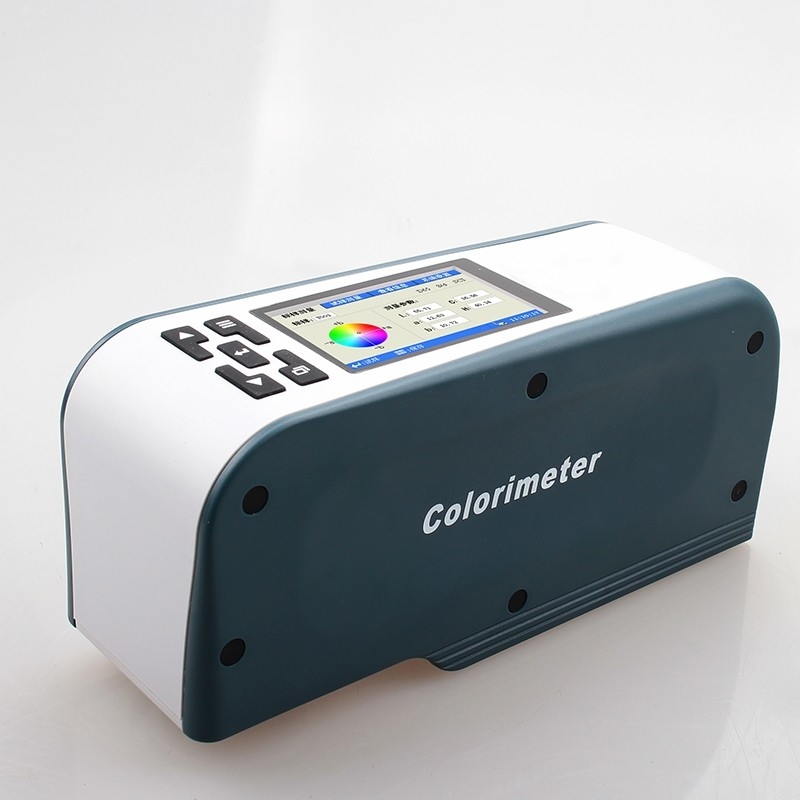

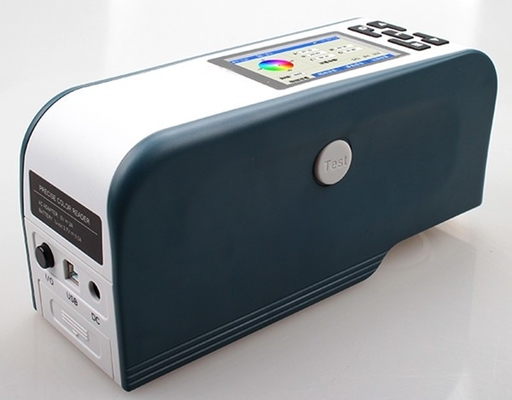

    Details Images:

    Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30Economical Precise Colorimeter, Color Difference Measuring Device, Chroma Meter DH-WF30
