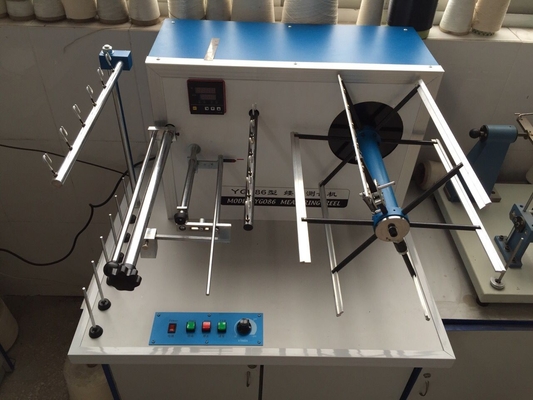

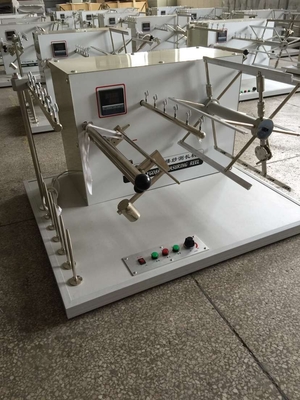

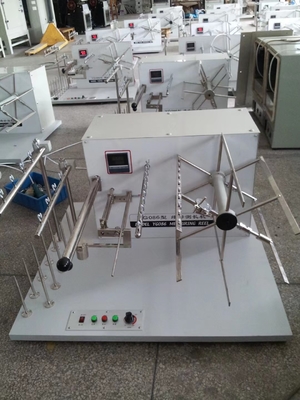

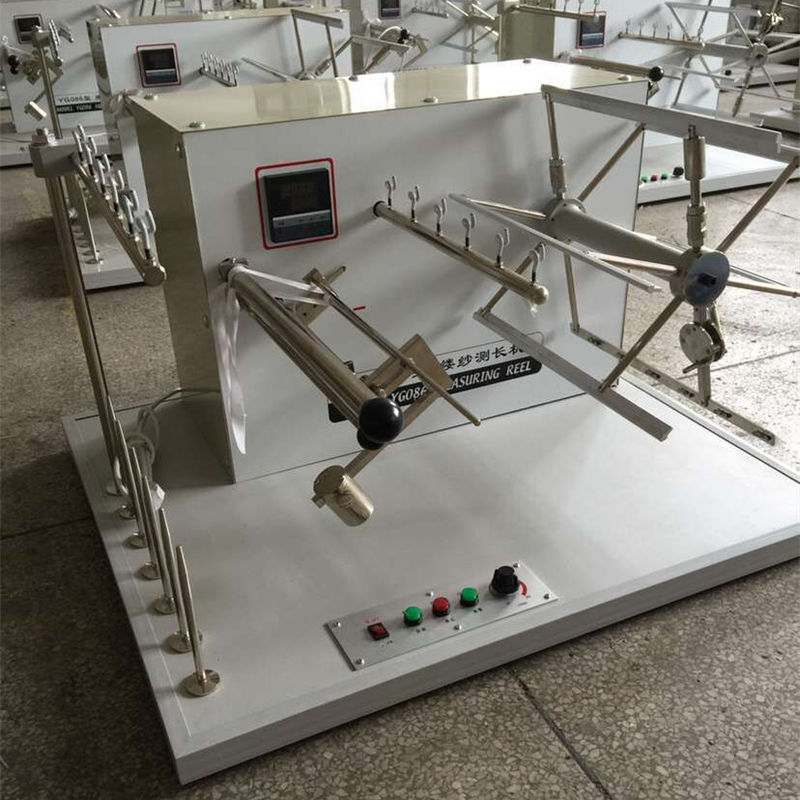

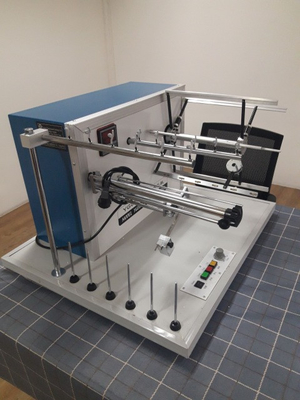

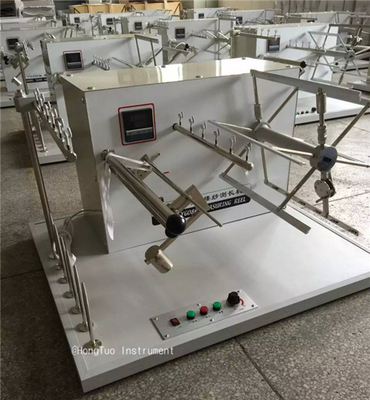

Digital Yarn Length Measuring Instruments , Yarn Count Testing Instrument
Applicable Range
Used for testing the accurate length of yarns, the linear density or the count of textile yarns and the strength of skeins.
Relevant Standards
GB/T4743 GB/T14343 GB/T6838 ISO2060 ASTM D1907 etc.
Instrument characteristics
| Number of bobbins measurable simultaneously |
6 bobbins |
| Bobbin distance |
60 mm |
| Reel circumference |
1,000mm ±1mm |
| Reel speed |
(30 ~ 250) r/min, infinite variable speed |
| Selectable number of turns in a skein |
2 ~ 9999 turns |
| Reciprocal traverse movement range for reeling |
35mm |
| Tension range by single yarn reeling |
(0~100) cN |
| Power supply: voltage |
220 V, frequency: 50Hz |
| Overall dimensions (L x W x H) |
780mm x 660mm x 480mm |
| Total weight of product |
55kg |
