Digital Electronic Yarn Length Tester, Yarn Linear Density Tester

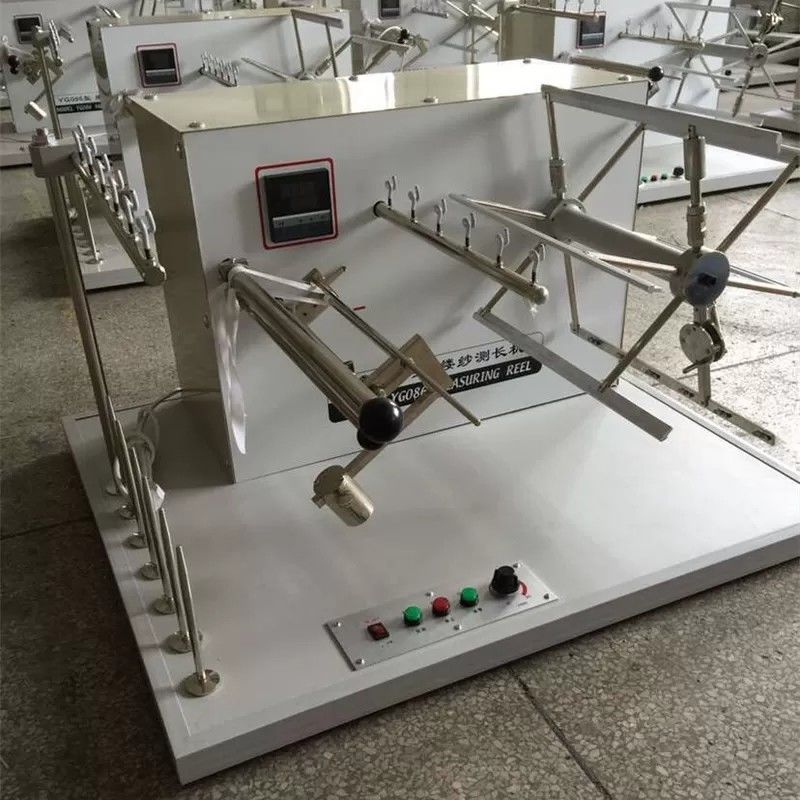

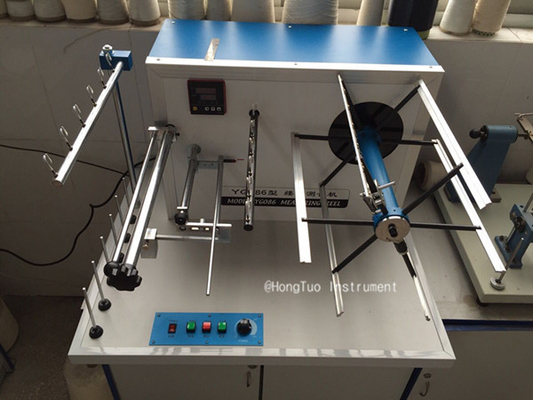

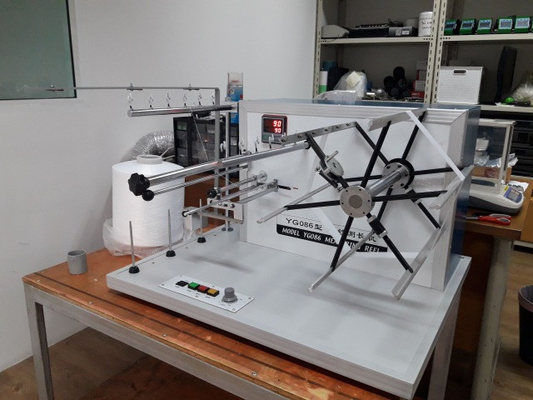

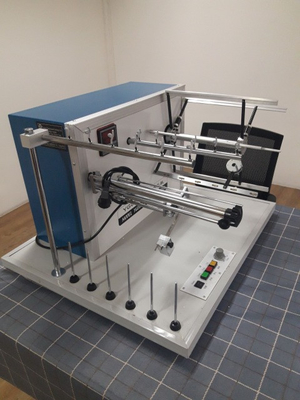

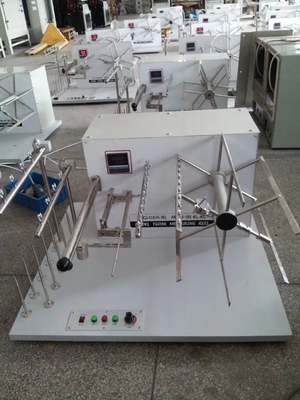

Yarn Length Measuring Instrument,Wrap Reel Machine To produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
Major specifications:
| Number of bobbins measurable simultaneously |
6 bobbins |
| Bobbin distance |
60 mm |
| Reel circumference |
1,000mm ±1mm |
| Reel speed |
(30 ~ 250) r/min, infinite variable speed |
| Selectable number of turns in a skein |
2 ~ 9999 turns |
| Reciprocal traverse movement range for reeling |
35mm |
| Tension range by single yarn reeling |
(0~100) cN |
| Power supply: voltage |
220 V, frequency: 50Hz |
| Overall dimensions (L x W x H) |
780mm x 660mm x 480mm |
| Total weight of product |
55kg |
