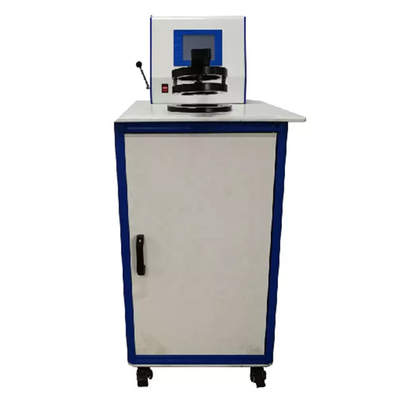

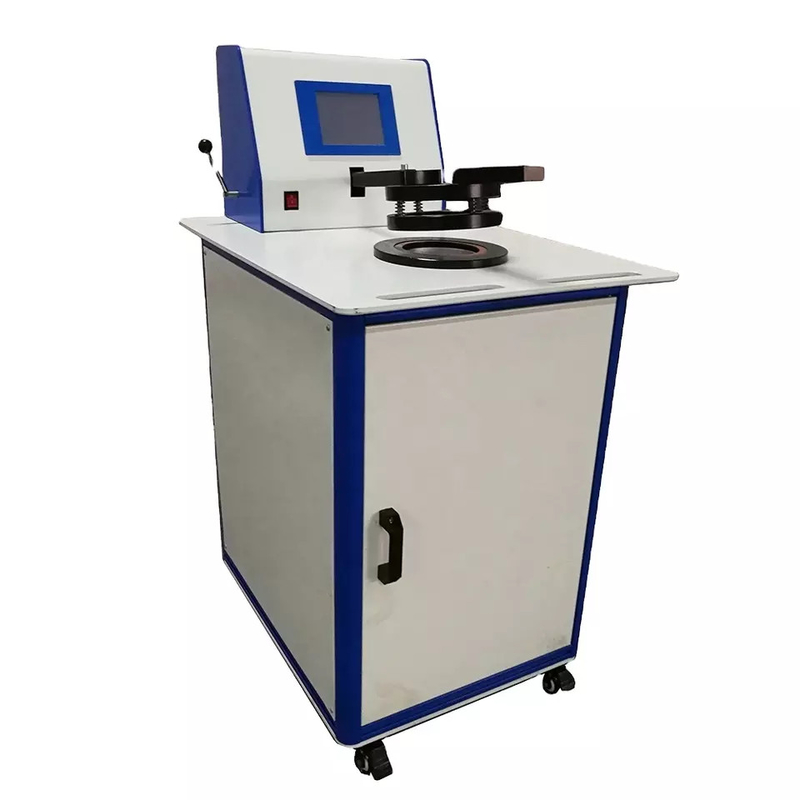

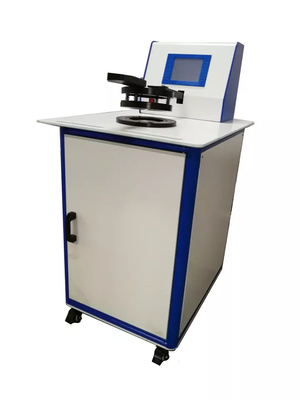

Air Permeability Tester / Meter / Testing Machine / Equipment / Instrument / Device / Apparatus
It is used to rapid testing of the air permeability of various sheet materials such as coated fabrics, filter paper, filter media, and plastics.
Standards:GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 BS5636 ASTM D737 DIN 53887 JIS L1096 BS5636
Features:
●High precision pressure sensor.
●Intelligent and flexible touch interface, the whole process of dynamic test is displayed.
●Full-scale automatic detection and conversion of air permeability and air permeability of various samples.
●Can arbitrarily set different national standard parameters and units, and the test results can be directly printed out without conversion.
●Measurement unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min
Technical Parameter:
| Pressure range |
0～4000Pa self-set pressure drop |
| Measurable air permeability |
0.1～12000mm/s |
| Measurement error |
≤±2% |
| Measurable fabric thickness |
≤15mm |
| Suction volume adjustment |
data feedback dynamic adjustment |
| Sample area setting circle |
5cm2; 20cm2; 50cm2; 100cm2; optional |
| Sample diameter setting circle |
Ф50mm (≈19.6cm2) Ф70mm (≈38.5cm2) |
| Nozzles |
11 in total |
| Data processing capacity |
≤1000 trials |
| Data output |
high-definition touch screen display; built-in micro-printer; |
| Power supply |
AC 220V±10V 50Hz |
| Power consumption |
200W |
| Weight |
80Kg |
| Appearance |
600×700×1100mm (L×W×H) |
