    Product Details:

    Place of Origin: Dongguan
    Brand Name: DahoMeter
    Certification: CE,ISO,SGS
    Model Number: DH-TA-01

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to 1599 per unit
    Packaging Details: standard wooden exporting package
    Delivery Time: 5 to 8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Taber Abrasion Tester Testing Before Delivery: Yes
    After-sale Customer Service: Yes

    Taber Rubber Abrasion Testing Machine , Abrasion Tester , Fabric Taber Abrasion Tester Machine



    Application:

    This machine is applicable to measuring for leather,fabric,coating,paper,floor tile,plywood,glass,natural rubber.,etc.By using the specified grinding wheel,and loading the weight on the specimen which cutted by knife.setting up the rolling times.then taking out the speciman,observe the status of the specimen after doing abrasion.or calculate the different weight for the specimen before testing and after testing to get the abrasion indexer.which equals to the abrasion loss weight/rolling times X 1000 the specified model of grinding wheel.H18,H22, CS10,CS17,CS32,CS33.

    Specification:


    1.Testing sheet:inner diameter(D)3mm

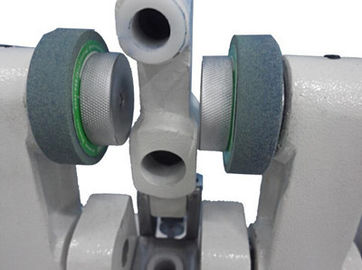

    2.Abrasion wheel:?2"(Max.45mm)(W)1/2"
    3.Centre interval for abrasion wheel :63.5mm
    4.Interval for abrasion wheel and testing sheet:37~38mm
    5.Rotating speed:60-72r/min(can be adjustable)
    6.Load:250,500,1000g

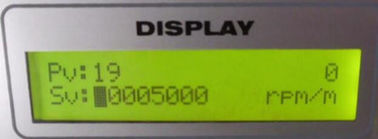

    7.Counter:LED 0~999,9999
    8.Distance from testing sheet to suction inlet:3mm
    9.Dimension:45?5?2cm
    10.Weight:30kg
    11.Power supply:1?AC 220V,10A

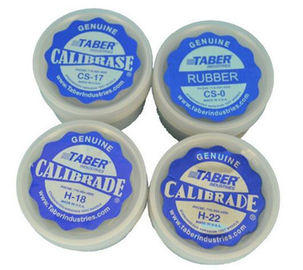

    12.One pair of imported grinding wheel H-18;One set of cleaner


    Standards:DIN53754,53799,53109,52347,TAPPI T476,ASTM-D1044,D3884,ISO 54701,ASTM D 4060
