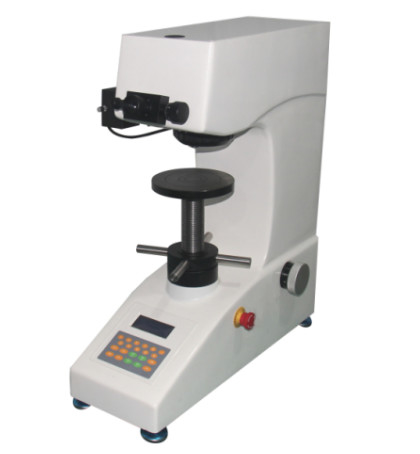

High Quality Automatic Digital Turret Metal Vicker Hardness Tester Good Price HV-10Z

High Quality Automatic Digital Turret Metal Vicker Hardness Tester Good Price HV-10Z

High Quality Automatic Digital Turret Metal Vicker Hardness Tester Good Price HV-10Z

Product Details:

Place of Origin: Dongguan, Guangdong
Brand Name: DahoMeter
Certification: CE, FCC
Model Number: HV-10Z

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: USD1999 to 4999 per unit
Packaging Details: standard exporting wooden package
Delivery Time: 5 to 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Turret Vickers Hardness Tester Hardness Scale: HV0.3,HV0.5,HV1.0,HV3.0 ,HV5.0,HV10.0
Test Force: 0.3 ,0.5 ,1.0,3.0,5.0,10.0 Kgf Depth Of Throat: 165mm

High Quality Automatic Digital Turret Metal Vicker Hardness Tester Good Price HV-10Z



High Quality Automatic Digital Turret Metal Vicker Hardness Tester Good Price HV-10Z


It is a high and new technology product of optical-mechanical integration. The hardness tester has novel shape, good reliability, operability and repeatability. It is an ideal product for vickers hardness testing.This machine uses computer software programming, optical measurement system.Through the soft key input, can choose vickers and Knop hardness measurement, can adjust the strength of the measurement light source, can choose the retention time, can display the test method and test force on the LCD screen, through the panel input measurement indentation diagonal length, the screen directly read hardness value, easy to look up the table cumbersome.Easy to use, high measurement accuracy.


Function and characteristic:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;

2. The industrial display screen can directly display the hardness value, convert the hardness, test method, test force, holding time, measurement times, and the test process is intuitive and clear;

3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the car paint grade is high, the scratch resistance is strong, and it is still bright as new after years of use;

4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;

5. HV-10Z model can realize: the position switch of observation-test-measurement is completed by automatic turret


Main Use and Application Scope:


1, iron and steel, non-ferrous metals, metal foil, hard alloy, metal sheet, microstructure

2, carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating

3, glass, wafer, ceramic materials, carbonization;


Technical Parameters:

Description Data
Vickers hardness scale HV0.3,HV0.5,HV1.0,HV3.0 ,HV5.0,HV10.0
Display Automatic reading menu displays 5-digit hardness value;4-digit diagonal length(D1,D2)test force,holding time,Test times,go back
Test force (Kgf) 0.3 ,0.5 ,1.0,3.0,5.0,10.0
Load control Automatic(Load/hold/unload)
Holding time of test force(s) 1~99
Optical system

objective: 10× 20×; eyepiece: 10×

Overall magnification: 100× 200×

Measuring range: 800μm 400μm

resolution ratio: 1μm 0.5μm

Hardness measurement range (5-3000)HV
XY test board(Optional)



lowest reading(mm):0.01

Specimen Maximum height(mm) 165
Specimen Maximum width(mm) 130(Distance from the center line of the head to the wall)
Data output Reserved built-in micro printer interface (RS232 serial interface), optional installation
Executive standard

GB/T4340.2national standard(GB/T4340.2 Chinese Standard),

JJG151verification regulation ( JJG151 Inspection Rule )

Supply voltage AC220V/50HZ
Outbox dimension(mm) 585×200×630
Weight(kg) 42


Standard Accessories

Host 1 set
Weights 3 pcs
Big,Middle“V”test board One each
Horizontal adjusting screw 4 pcs
Power line 1 pcs
10Xmicrometer ocular 1 pcs
Hardness block 2 pcs
Spare fuses 2A 2 set
Certificate of qualification 1set
Instruction Manual 1 set


Optional measurement software to eliminate human error, computer operation, improve efficiency, and more precise accuracy.
