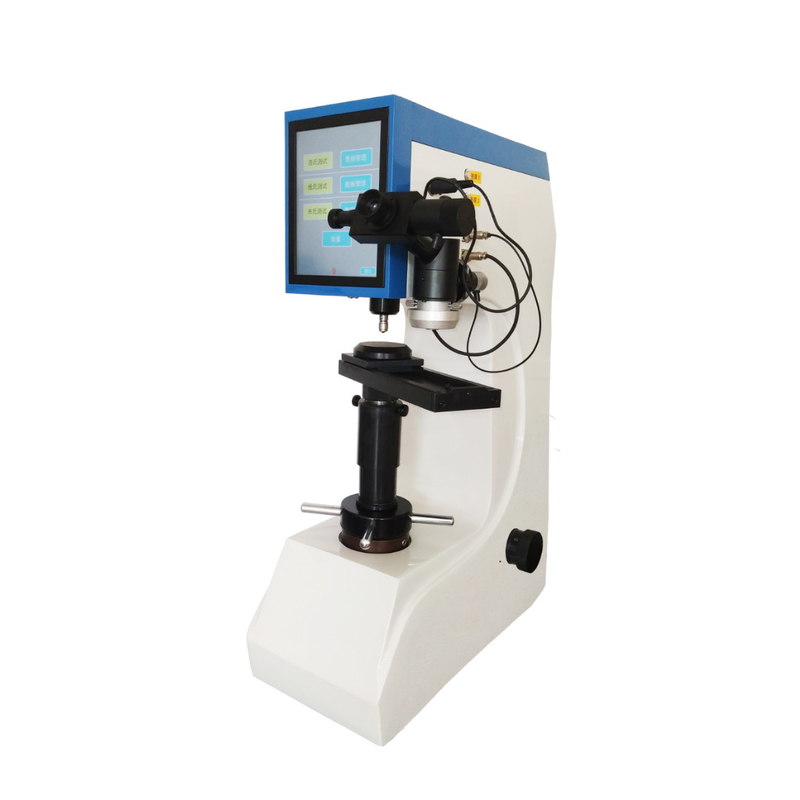

Touch Screen Digital Multi-Function Hardness Tester with Brinell Rockwell Vickers Scales HBRVS-187.5F

Touch Screen Digital Multi-Function Hardness Tester with Brinell Rockwell Vickers Scales HBRVS-187.5F

Touch Screen Digital Multi-Function Hardness Tester with Brinell Rockwell Vickers Scales HBRVS-187.5F

Product Details:

Place of Origin: Guangdong, China
Brand Name: DahoMeter
Certification: CE, FCC
Model Number: HBRVD-187.5

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 3 to 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Magnification: 25X、50X、100X Power Supply Voltage: AC220V±5%, 50~60Hz
Maximum Allowable Height Of The Sample: 200mm/165mm

Touch Screen Digital Multi-Function Hardness Tester with Brinell Rockwell Vickers Scales HBRVS-187.5F

Touch Screen Digital Multi-Function Hardness Tester with Brinell Rockwell Vickers Scales HBRVS-187.5F

Introduction:

HBRVS-187.5 digital display Blovi hardness tester has 8-inch touch screen intuitive display and single-chip control system, which can realize man-machine dialogue and automatic operation; it has high test accuracy, simple operation, high sensitivity, convenient use, and stable display value; It fully realizes the automatic operation of test force application, removal, and direct display of hardness value. Built-in printer, RS232 interface and USB interface can realize data exchange between computer and hardness tester.



Application range:

Determination of Brinell, Vickers, Rockwell hardness of ferrous metals, non-ferrous metals and hard alloys; Wide range of applications, can be widely used to determine:

a. Brinell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys

b. Rockwell hardness of heat-treated materials such as quenching, quenching and tempering

c. Vickers hardness of nitriding layer, ceramics, thin plate, metal sheet, electroplating layer and tiny parts.



Main features:

  • Adopt 8-inch touch screen, display rich content, easy to operate
  • Ready-to-use, no need to install weights
  • Three test methods for Brinell, Rockwell and Vickers hardness
  • Automatic hardness conversion
  • High precision optical system
  • Measurement data U disk saved as EXCEL format, easy to edit and save
  • With RS232 interface, test results can be transmitted to the computer



Main technical specifications:

1. Power supply voltage: AC220V±5%, 50~60Hz

2. Delay control: adjustable from 0 to 90 seconds

3. Distance from the center of the indenter to the body: 160mm

Maximum allowable height of the sample: Rockwell 200mm, Brinell Vickers 165mm

4. Dimensions of the hardness tester (length × width × height): 550 × 230 × 750mm

5. Approx. weight of the instrument: 89kg

6. Test force:

Rockwell: 60, 100, 150KGf (588, 980, 1471N)

Brinell: 31.25, 62.5, 187.5Kgf (306.5, 612.9, 1839N)

Vickers: 30, 100Kgf (294.2, 980.7N)

7. Measuring ruler:

Rockwell: HRA, HRB, HRC, HRD, HRF, HRG

Brinell: HBW2.5/31.25 HBW2.5/62.5 HBW5/62.5 HBW2.5/187.5

Vickers: HV30, HV100

8. Measuring range:

Rockwell: 20-95HRA, 10-100HRBW, 20-70HRC

Brinell: 5-650HBW

Vickers: 10-2900HV

Magnification: 100X, 50X, 25X





Standard configuration:



No. Name (Specification) Quantity
1 Diamond Rockwell indenter 1pc
2 φ1.5875mm ball indenter 1pc
3 Large flat test bench, small flat test bench, "V" shape test bench 3pcs in total
4 Standard Rockwell hardness block 5pcs in total
5 Leveling gauge 1pc
6 Leveling screw 4pcs
7 Hexagonal wrench 1pc
8 Power cable 1pc
9 RS232 communication cable 1pc
10 Fuse 2A 2pcs
11 Dust cover 1pc
12 Product instruction manual (including certificate of conformity, packing list) 1pc
13 Printer instruction manual 1pc
14 Rockwell indenter protection cover 1pc
15 Screwdriver 2pcs
16 Digital display microscope eyepiece 1pc
17 Microscope stand (with internal illumination) 1pc
18 2.5X, 5X, 10X objective lens 1 each
19 Sliding plate test stand 1 set
20 External illumination lamp 1pc
21 Diamond Vickers indenter 1pc
22 φ2.5mm, φ5mm ball indenter Total 2pcs
23 Standard Vickers hardness block (HV30) 1pc
24 Standard Brinell hardness block (HBW/2.5/187.5) 1pc
