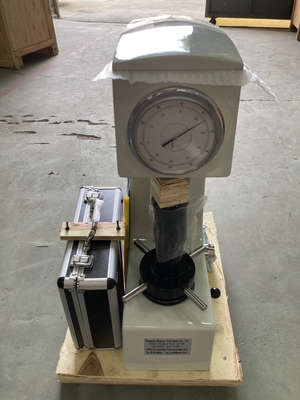

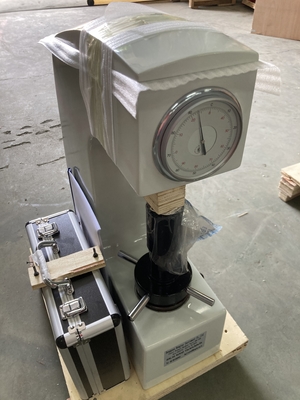

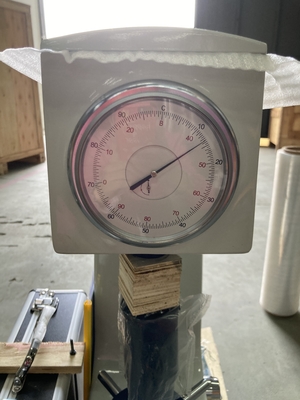

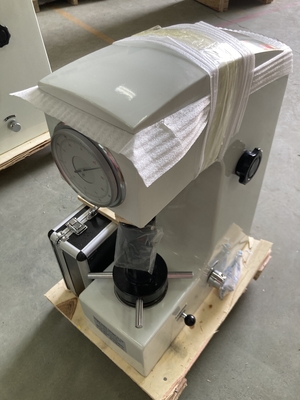

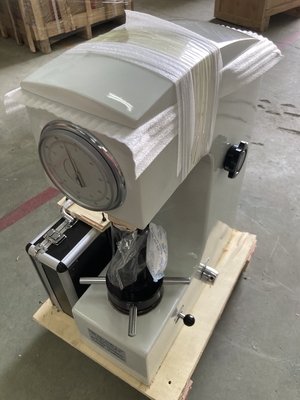

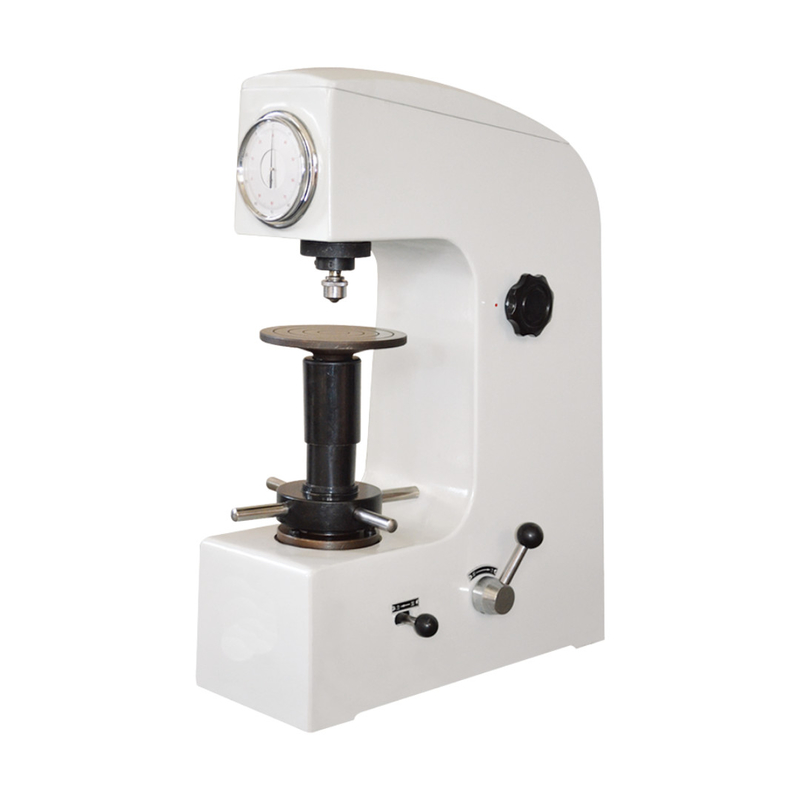

XHR-150 Manual Operation Plastic Rockwell Hardness Tester Hardness Durometer Rockwell Tester Metal

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DahoMeter
Certification:	CE, FCC
Model Number:	XHR-150

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	standard exporting wooden package
Delivery Time:	3 to 7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Measuring Range:	70-100HRE, 50-115HRL, 50-115HRM, 50-115RR	Test Force:	588.4, 980.7, 1417N (60, 100, 150kgf)
Hardness Resolution:	0.5HR;	Maximum Allowable Height Of The Sample:	170mm

XHR-150 Manual Operation Plastic Rockwell Hardness Tester Hardness Durometer Rockwell Tester Metal

Application range:

Determination of the hardness of plastics, composite materials and friction materials and soft metal, non-metallic materials.

Main features:

Lever loading, manual operation, accurate and durable, high measurement efficiency; the dial directly reads HRE, HRL, HRM, HRR scale accuracy in line with JB/T7409.

Main technical specifications:

Measuring range: 70-100HRE, 50-115HRL, 50-115HRM, 50-115RR

Test force: 588.4, 980.7, 1417N (60, 100, 150kgf)

Maximum allowable height of the sample: 170mm;

Distance from the center of the indenter to the machine wall: 135mm;

Hardness resolution: 0.5HR;

Dimensions: 466x238x630mm;

Weight: about 65kg

Standard configuration:

V-shaped table: 1

Large flat workbench: 1

Small flat workbench: 1
