Rockwell Hardness Measurement Instrument, Rockwell Hardness Tester for Sale

Rockwell Hardness Measurement Instrument, Rockwell Hardness Tester for Sale

    • Rockwell Hardness Measurement Instrument, Rockwell Hardness Tester for Sale
    • Rockwell Hardness Measurement Instrument, Rockwell Hardness Tester for Sale
  • Rockwell Hardness Measurement Instrument, Rockwell Hardness Tester for Sale

    Product Details:

    Place of Origin: China
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: HR-150C/HR-150A

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD399 to 1999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 to 10 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Rockwell Hardness Tester After-sale Customer Service: Yes
    Testing Before Delivery: Yes

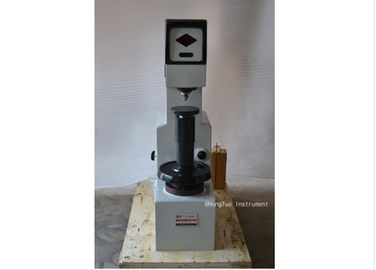

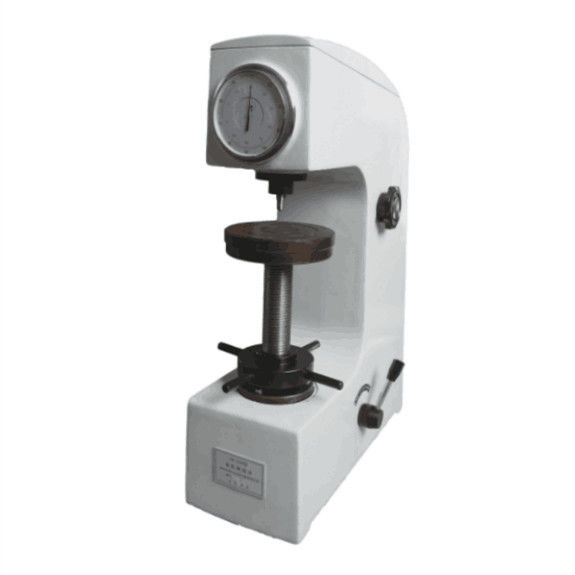

    Rockwell Hardness Measurement Instrument , Rockwell Hardness Tester for Sale



    Brief Introduction:

    This instrument is in accordance with the Rockwell measuring principle.it can do the testing of Rockwell hardness directly.It has the feature of easy operation,stable reading,convenient maintenance.This instrument is the new design loading and unloading easy operation all-in-one machine,improve the operation procedure compared to the old products HR-150A.which makes machine more stable,durable,and efficient.



    Application:

    Ferrous metal,non-ferrous metal,non-metal materials;

    Quench,tempering.,etc heat treatment materials;

    Tempered steel,annealed steel,quenched steel,surface hardened steel,chill casting,forging,hard alloy steel,aluminum alloy,bearing steel,hardened sheet steel.



    Features:

    • Accurate data,high testing efficiency.
    • Leverage of loading,manual operation,durability and reliability
    • Non-friction spindle,high accuracy.
    • HRA,HRB,HRC scale can be read directly through dial plate.other Rockwell scale is available.
    • Adopt precision oil pressure buffer,loading speed is adjustable.
    • Mechanical manual testing process.no needs electric controlling.
    • Widely apply to quality monitoring on production site.good working environment adaptability
    • 8. The accuracy is in accordance with GB/T230.2,ISO 6508-2 and US ASTM E18.



    Main Technical Specification:



    Measuring range 20-88HRA, 20-100HRB, 20-70HRC
    Test force 588.4, 980.7, 1471N (60, 100, 150kgf)
    Max. height of test piece 170mm
    Depth of throat 135mm
    Hardness resolution 0.5HR
    Dimensions 466 x 238 x 630mm
    Weight approx. 65kg



    Main Accessories:

    Big testing table:one pcs;diamond circular cone indenter:one pcs;

    Small testing table:one pcs;1/16’’stell ball indenter:one pcs;

    V shape testing table:one pcs;standard rockwell hardness block:5 pcs.



    150C-1_600150c-2_600
