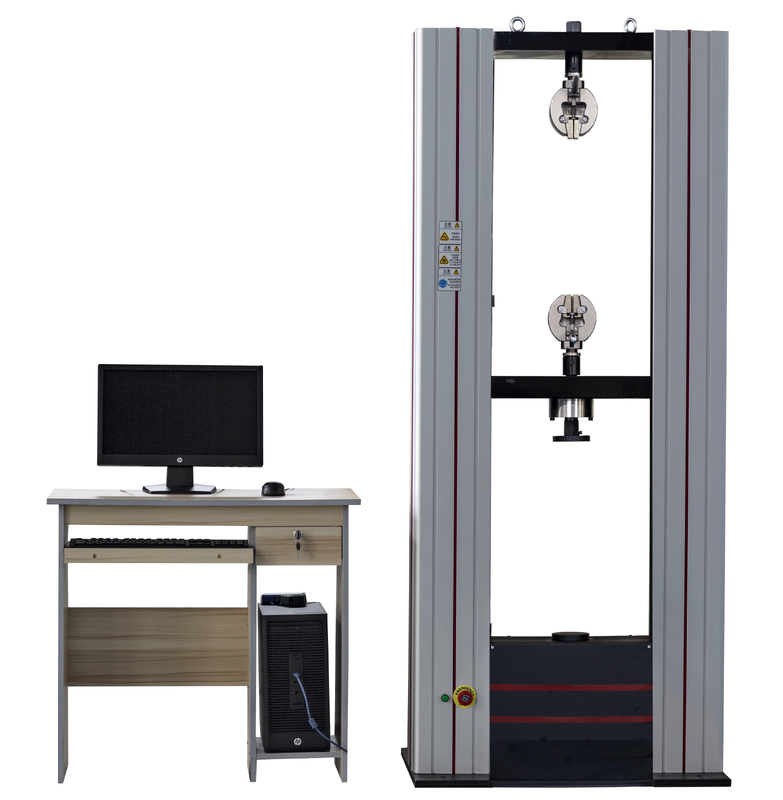

Microcomputer Controlled Spring Testing Machine for Spring Performance Testing
Product Description:
This microcomputer-controlled spring tension and compression testing machine is manufactured in accordance with the technical requirements of national standards for spring tension and compression testing machines. Its professionally designed automatic control and data acquisition system enables fully digital adjustment of the data acquisition and control processes. It can perform strength tests and analysis on tension, compression, displacement, stiffness, and other properties of precision springs, including tension springs, compression springs, disc springs, tower springs, leaf springs, circlips, leaf springs, composite springs, gas springs, mold springs, and special-shaped springs. The design of the testing machine and its auxiliary equipment draws on advanced technology from Shimadzu Corporation of Japan, resulting in an attractive appearance, easy operation, and stable and reliable performance. The computer system controls the rotation of the servo motor through a controller, which is then decelerated by a reduction system and driven by a precision lead screw assembly to perform compression and other mechanical property tests on the specimen.
This machine utilizes a fully digital speed control system and servo motor with high speed regulation accuracy and stable performance as its drive system. The controller serves as the core of the control system, and control and data processing software, based on a Windows-based interface, displays test force, peak force, crosshead displacement, test deformation, and test curves on the screen. All testing operations can be automatically performed on the computer using a mouse.
Product composition system:
(1) Main unit: adopts gantry structure.
(2) Transmission system: consists of reducer, precision screw pair and guide part.
(3) Drive system: the system is driven by AC speed regulator and its motor.
(4) Measurement control system: the test force measurement control system consists of high-precision load sensor, measurement amplifier, A/D converter, voltage regulator, etc.; the displacement measurement control system consists of photoelectric encoder, frequency multiplication shaping circuit, counting circuit, etc. Through various signal processing, computer display, control and data processing functions are realized.
(5) Safety protection device: sample break shutdown, overload protection, beam limit position protection, overcurrent, overvoltage, overspeed protection, etc.
Main technical parameters:
1. Style: Gantry
2. Maximum test force: 5000N
3. Test force range: Full range
4. Measuring range: 0.01-50,000N
5. Test force accuracy: ±1%
6. Displacement resolution: 0.01mm
7. Displacement measurement accuracy: ±1%
8. Tensile stroke: 650mm
9. Compression stroke: 700mm
10. Platen diameter: 200mm
11. Displacement speed control range: 1mm/min to 500mm/min, adjustable in steps
12. Displacement speed control accuracy: ±1%
13. Testing machine level: Level 1
14. Deformation indication error: ≤±(50 + 0.15L)
15. Testing machine dimensions: 600*500*1650 mm
16. Appearance: Must comply with GB/T2611 requirements
17. Completeness: Must comply with standard requirements
18. Protection: The test machine has overload protection
19. Power Supply: 220V, 50Hz
20. Weight: 220kg
Function Introduction:
a) Free Shift: Automatically switches to the appropriate range based on load size to ensure accurate measurement data.
b) Conditional Storage: Test control data and specimen conditions can be modularized, facilitating batch testing.
c) Automatic Speed Shift: The speed of the moving beam can be automatically changed according to a pre-set program or manually changed during the test.
d) Automatic Save: Test data and curves are automatically saved upon test completion.
e) Process Implementation: The test process, measurement, display, and analysis are all performed by the microcomputer.
f) Batch Testing: Specimens with the same parameters can be set once and completed sequentially.
g) Test Software: Chinese Windows interface, menu prompts, and mouse operation.
h) Display Mode: Data and curves are dynamically displayed as the test progresses.
i) Curve Traversal: After the test is completed, the curve can be re-analyzed, and the test data corresponding to any point on the curve can be found using the mouse.
j) Test Report: Reports can be compiled and printed in the user-defined format.
k) Limit Protection: Two levels of limit protection are available: programmable and mechanical.
Basic system configuration:
1. Testing machine main unit (1 set)
2. Servo motor (1 set)
3. Servo speed control system (1 set)
4. Load cell (1 set)
5. Precision ball screw (1 set)
6. Speed reduction system (1 set)
7. Fully digital control system (1 set)
8. Photoelectric encoder (1 set)
4. HP computer (1 set)
5. HP inkjet printer (1 set)
6. Spring control software (1 set)
7. Compression fixture (1 set)
8. Supplied tools (including tools and a list required for installation, maintenance, and operation) (1 set)
