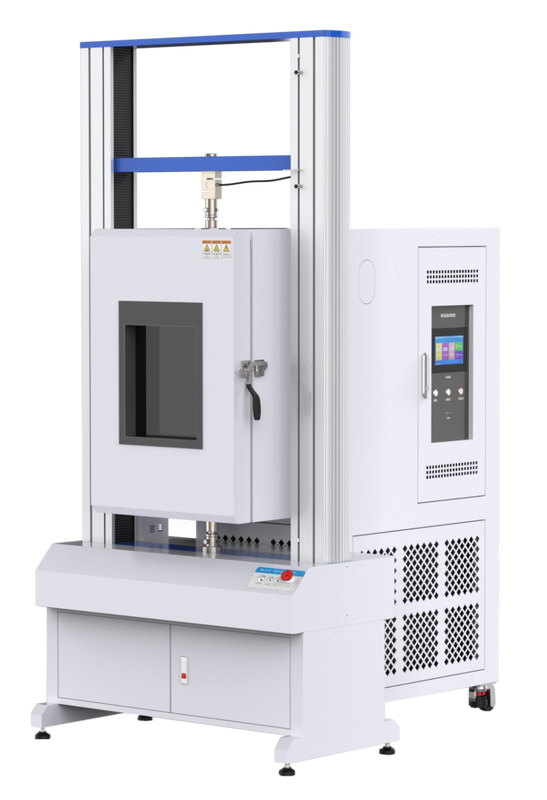

Microcomputer Controlled High and Low Temperature Electronic Universal Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Hontotest
Certification:	GB/T 16825.1-2008, GB/T 232-2010,JB/T 6147-2007,JJG 139-1999
Model Number:	HT-GDW-10KN

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD7,291.00-USD9,999.00
Packaging Details:	Standard export wooden case
Delivery Time:	about 3 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Name:	Microcomputer Controlled High And Low Temperature Electronic Universal Testing Machine	Temperature Change:	(-20)℃~ (+150)℃
Control Accuracy:	≤±1℃	Temperature Fluctuation:	≤2℃

Microcomputer Controlled High and Low Temperature Electronic Universal Testing Machine

Technical Instructions

Brand		HONGTUO
Model		HT-GDW
Detail Model		-5KN	-10KN
Capacity	KN	5	10
	KG	500	1000
	lb	1102	2204
Sensor		The USA
Unit switching		G,Kg,lb,N,KN
Displacement unit switch		Inch cm mm
Testing machine level		0.5 class
Effective force measuring range		0.2％～100％FS
Force accuracy		Within ±0.5% of the indication value
Force resolution		1/500000
Displacement resolution		≤0.05μm
Displacement accuracy		Within ±0.5% of the indication value
Deformation measurement range		0.2%～100%FS
Deformation indication accuracy		Within ±0.5% of the indication value
Large deformation measurement range		1000mm (optional)
Large deformation resolution		0.01mm (optional)
Large deformation indication error limit		Within ±0.5% of the indication value (optional)
Maximum test speed		500mm/min, optional maximum 1000mm/min
Minimum test speed		0.01mm/min
Speed accuracy		Within ±0.5% of the indication value
Crossbeam stroke measurement height		Test stroke without fixture: 1330mm; test stroke with fixture: 800mm
Effective width		750mm
Fixture configuration		One set of film stretching clamps and one set of 180 degree peeling clamps
Return method		Two options: manual or automatic, automatically return to the initial position after the test or manually return to the initial position
Shutdown mode		1. Automatic shutdown at the maximum breaking value 2. Shutdown with upper and lower safety limit settings
Safety devices		1. Mechanical travel switch protection 2. Emergency stop switch emergency braking
Overload protection		When the load exceeds 100%, the machine automatically protects
Accessories		1 power cord, 1 test software program, 1 data cable, 1 instruction manual, 1 certificate
Optional accessories		Anti-splash device (protective door), computer, printer, small deformation metal extensometer, large deformation extensometer
Supply voltage		220V AC/ 50Hz (Can be selected according to country110V AC/60Hz)
Host size/Weight		Model including base: (LengthWidthHeight)800mm750mm2100mm / about 205KG

Technical Instructions

Brand		HONGTUO
Model		HT-GDW
Detail Model		-5KN	-10KN
Capacity	KN	5	10
	KG	500	1000
	lb	1102	2204
Sensor		The USA
Unit switching		G,Kg,lb,N,KN
Displacement unit switch		Inch cm mm
Testing machine level		0.5 class
Effective force measuring range		0.2％～100％FS
Force accuracy		Within ±0.5% of the indication value
Force resolution		1/500000
Displacement resolution		≤0.05μm
Displacement accuracy		Within ±0.5% of the indication value
Deformation measurement range		0.2%～100%FS
Deformation indication accuracy		Within ±0.5% of the indication value
Large deformation measurement range		1000mm (optional)
Large deformation resolution		0.01mm (optional)
Large deformation indication error limit		Within ±0.5% of the indication value (optional)
Maximum test speed		500mm/min, optional maximum 1000mm/min
Minimum test speed		0.01mm/min
Speed accuracy		Within ±0.5% of the indication value
Crossbeam stroke measurement height		Test stroke without fixture: 1330mm; test stroke with fixture: 800mm
Effective width		750mm
Fixture configuration		One set of film stretching clamps and one set of 180 degree peeling clamps
Return method		Two options: manual or automatic, automatically return to the initial position after the test or manually return to the initial position
Shutdown mode		1. Automatic shutdown at the maximum breaking value 2. Shutdown with upper and lower safety limit settings
Safety devices		1. Mechanical travel switch protection 2. Emergency stop switch emergency braking
Overload protection		When the load exceeds 100%, the machine automatically protects
Accessories		1 power cord, 1 test software program, 1 data cable, 1 instruction manual, 1 certificate
Optional accessories		Anti-splash device (protective door), computer, printer, small deformation metal extensometer, large deformation extensometer
Supply voltage		220V AC/ 50Hz (Can be selected according to country110V AC/60Hz)
Host size/Weight		Model including base: (LengthWidthHeight)800mm750mm2100mm / about 205KG

Structure and materials

Main configuration

Device name	High and low temperature test chamber
Main configurat	Cabinet	Structure type	Integrated, the test box, controller and refrigeration unit are installed separately.
		Shell material	Stainless steel plate SUS304 1.0mm
		Studio material	Stainless steel plate SUS304 1.0mm
		Insulation Materials	Rigid polyurethane foam, insulation layer thickness 80mm
		Test hole	The upper and lower centers of the box have a diameter of Φ80*2
	Rail rack	Guide rail frame for high and low temperature chamber	Customized size according to main device
	Control System	Temperature controller	Single point temperature controller
		Temperature control performance	Temperature resolution:±0.1℃
		Temperature Sensor	Class A high-precision industrial platinum thermal resistor PT100
		Operation mode	Constant (fixed point).

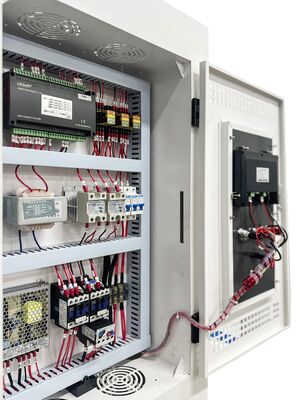

		Mainly perform electrical appliances	Schneider AC contactors, thermal relays, small relays, transformers, solid state relays, etc.

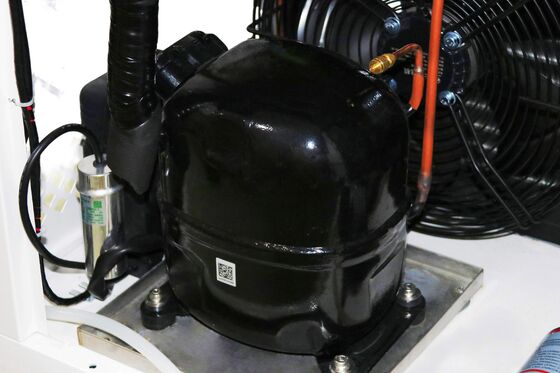

	Compressor refrigeration system	Compressor	Refrigeration Compressors
		The electromagnetic valve	Original imported from Japan "Herigiya"
		Filter drier	Original imported from Denmark "Danvers"
		Copper pipe	High-quality oxygen-free copper pipe, nitrogen-filled welding
		Energy regulating expansion valve	Original imported from Denmark "Danvers"

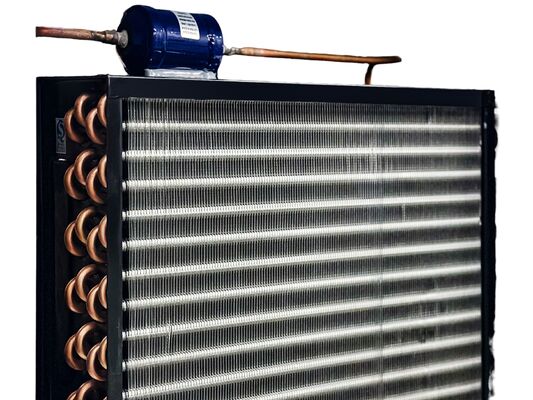

		Evaporator	Self-designed domestic high-quality and efficient fin type
		Cooling method	Air cooling
		Installation features	A. The entire refrigeration system is filled with nitrogen and maintained at a pressure of 2.2Mpa for leak detection testing.
			B. The heating and cooling systems are completely independent.
			C. Equipped with the company's characteristics, high-temperature refrigerator return air cooling system.
			D. All refrigeration system action procedures are completely automatically controlled by instruments.
	Heating system	Temperature control element	Solid state relay
	Blowing system	Heating method	High quality nickel-chromium alloy wire electric heater
		Circulatory system	Fan forced convection method
		Motor	Extended stainless steel shaft motor
		Wind leaves	Centrifugal fan blade
	Vibration reduction measures	Compressor	Special rubber vibration damping
	Safety devices	Security alarm action	Sound and light alarm prompts
		Test chamber structural parts	Ground protection
		Test box studio	Independent over-temperature protection system
		Compressor	Over voltage protection/over temperature protection /overload protection
		Power supply	Over current/leakage protection
	Accessories	1 power cord
	Document	Warranty card/certificate/instruction manual

Main features

Project	Description
Air conditioning method	Forced ventilation internal circulation, balanced temperature control method (BTCH). In this method, when the refrigeration system is continuously working, the central control system performs amplification, analog/digital conversion, nonlinear correction and temperature adjustment based on the collected temperature and humidity signals in the box. Compare them with the humidity set value (target value), and the resulting deviation signal is calculated by PID to output an adjustment signal, automatically controlling the output power of the heater, and finally making the temperature in the box reach a dynamic balance.
Air circulation device	Air circulation device: Built-in air-conditioning room, circulating air duct and long-axis centrifugal fan, using efficient refrigerator and energy regulation system, effective heat exchange through efficient fan to achieve the purpose of temperature change. By improving the air blast flow, the air flow rate and the heat exchange capacity between the heater surface and the air are increased. Through the adjustment of the air outlet, the temperature uniformity of the test chamber is greatly improved.
Heating method	High quality nickel-chromium alloy electric heater
Cooling method	Multistage diaphragm air heat exchanger
