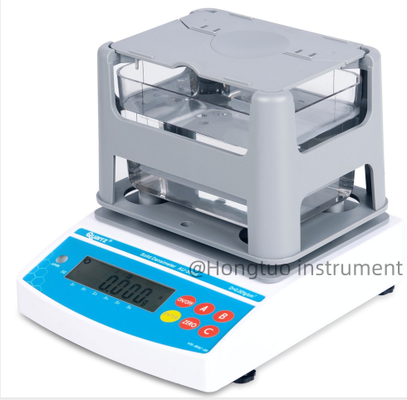

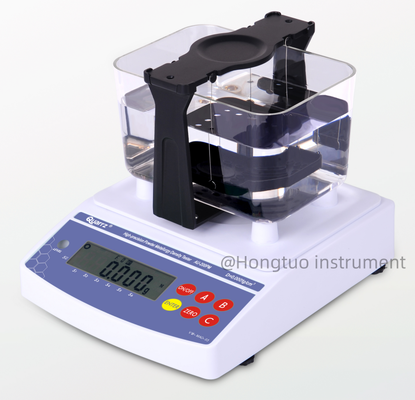

High Precision Powder True Density Meter for Laboratory Testing

Application:metal powder,refractory materials,ceramic materials,carbon materials,abrasive materials,cement powder,plastic powder and granule.rubber powder,natural stone,soil,paint,rock and coal, ion exchange resin,powder true density researching laboratory.

Principle:Archimedes dipping volume substitution method,coordinate with professional pycnometer,read density value correctly.

Standard:In accordance with GB/208,GB/T9966,GB/T1033.1,GB/T 23561,GB/T24203,GB/T8330,GB/T21782.3,ASTM C 97,D 5004,C329,217,DIN51057

Measurement Type:

(1)Rubber materials

carbon black,white carbon black,calcium carbonate,zinc oxide,titanium dioxide,silica gel,monox.,etc chemical materials.

(2)Battery materials

lithium cobalt oxides,lithium manganate,lithium iron phosphate,graphite,ternary,diaphragm.,etc electrode anode and cathode materials.

(3)Catalyst materials

petrifaction,chemical industry,fine chemical engineering,medicine,food,agriculture.,etc catalyst materials.

(4)Food additives

starch,activated clay,bentonite

(5)Magnetic materials

ferroferric oxide,ferrite,manganous-manganic oxide

(6)Adsorbent

activated aluminium oxide,molecular sieve,zeolite,activated carbon

(7)Nanometer materials

nanophase ceramics powder(alumina,zirconia,yttria,silicon nitride,carborundum),nanocrystalline metal powder(silver powder,iron powder,copper powder,tungsten powder,nickel powder)nanometer high molecular material,carbon nano tube

,

(8)Other application:

superfine fiber,porous fabric,composite materials,mineral,soil,slurry,sediment,suspended materials,special paper.,etc special materials.

Measurement resolution:

AU-120P density resolution:0.0001g/cm3

AU-300P density resolution:0.001g/cm3

Function and Feature:

1. Real density for any powder can be readable directly.

2. Density for liquid medium can be readable(medium for most of measuring powder is not distilled water.

3. Easy operation,quick,accuracy.

4. Different liquid medium can be used according to features of products.

5. Function of actual water temperature setting,other liquid medium density setting.

6. Function of air buoyancy compensation setting,density top and bottom limitation setting.

7. Adopt RS-232C communication interface,it is convenient to connect PC and printer.AU-40 is available to be chose to print data.

8. Gross weight/size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm

9. Power supply:AC 100V-240V 50HZ/60HZ europe standard.

Standard Accessories:

(1)host(2)testing board(3)tweezers(4)thermometers(5)weight(6)windproof dustproof cover(7)one pcs of pycnometer(8)power transformer

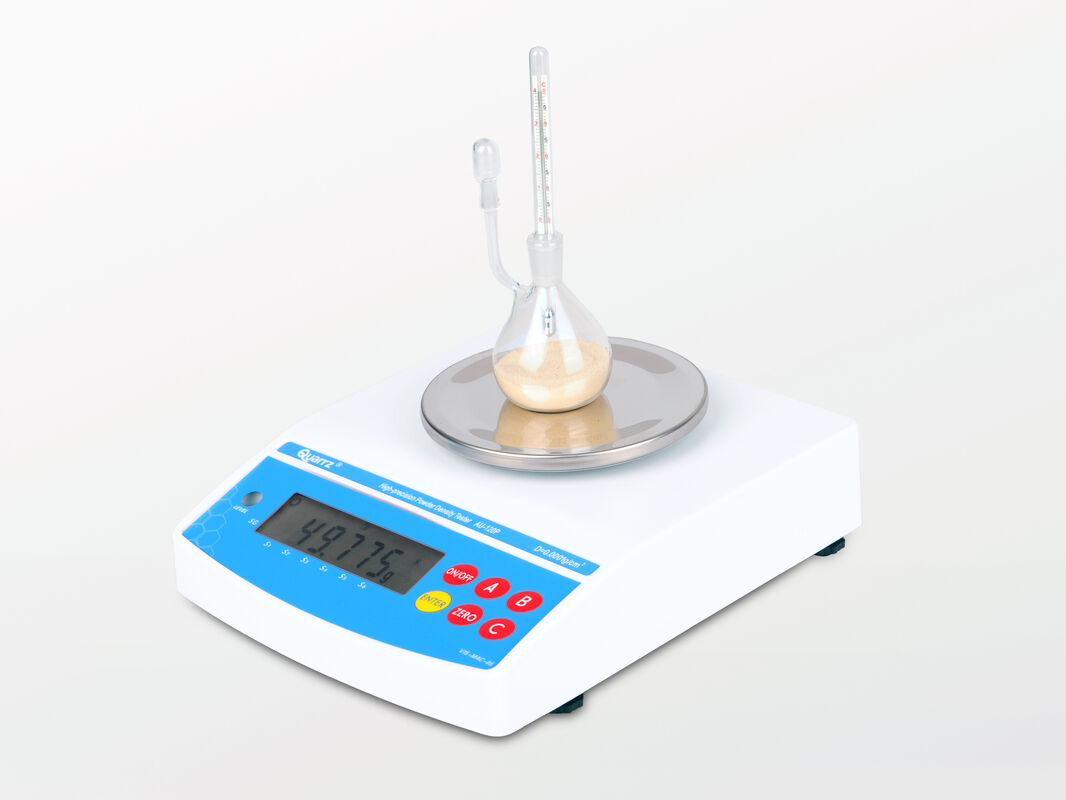

Measurement procedure:

(1)Place sample on testing board,press ENTER key to memory.

(2)Take down pycnometer and pour out 2/3 medium.Put sample into pycometer,and fill pycometer with medium.then place it on testing board.press ENTER key to memory.true density vaule is displayed.

Anti-counterfeiting Announcement:

The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.

Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)

Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.

Method three:Check security code that generate automatically by machine number.

Specification:
