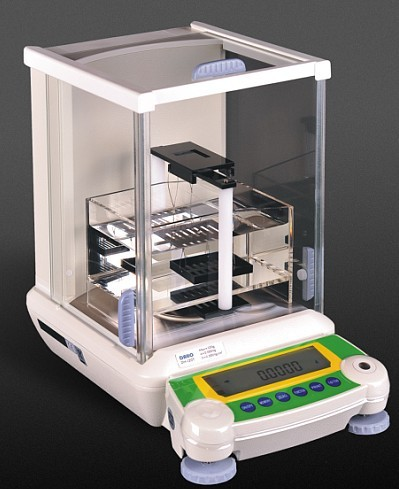

High Precision Electronic Solids Densimeter for Laboratory Testing

Application:

Quality management density measuring,Base materials density researching,Micro-products density testing,High-density products density testing.Key laboratory,materials science researching.

Standards:

ASTM D792,ASTMD297,GB/T1033,GB/T2951,GB/T3850,GB/T533,HG4-1468,JIS K6268,ISO 2781,ISO 1183,GB/T4196,GB/T4123 GB/T5586,JB/T7780…

Combined with the Archimedes principle and advanced electronical technology,applied the host original imported from Japan.DH-120M series had the features of good durability,artistic design,exquisite workmanship,stability,

high-precision and simple operation,which the density can be tested with one measuring procedure.This model installed completed aluminum alloy testing platform and transparent tank.

Specification:

Model:DHN-122M

Density resolution: 0.0001 g/cm3

Maximum weight:120g/40g

Minimum weight:0.0001g/0.00001g

Measuring range: 0.0001—99.9999g/cm3

Features:

(1)Quick test the density of any solids products

(2)Micro-products and high density products also can be measured

(3)Density value can be displayed just through one operation procedure

(4)Both density more than 1g/cm3 and less than 1g/cm3 can be tested

(5)Function of automatic zero tracking

(6)Function of environment adjusting

(7)Function of actual water temperature compensation

(8)Not only water can be as medium but also other liquids

(9)Installed the aluminum alloy components,the tank was anti-corrosive,and resistance to fall break

(10)Including RS-232C interface,PC and printer were available to connect.DE-40 printer can be choose to print testing data.

Measuring Procedure:

(1)Place sample on testing board.measure weight in air.press MEMORY key.

(2)Place sample into water.measure weight in water.press MEMORY key.
