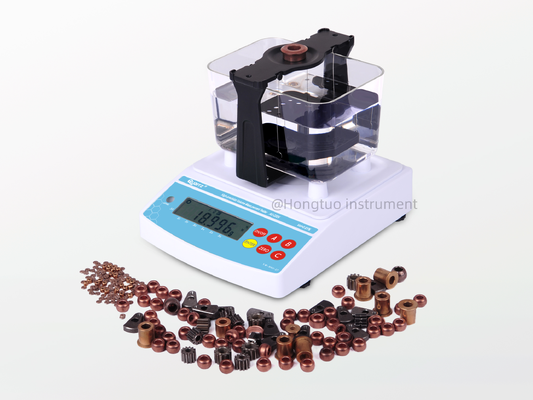

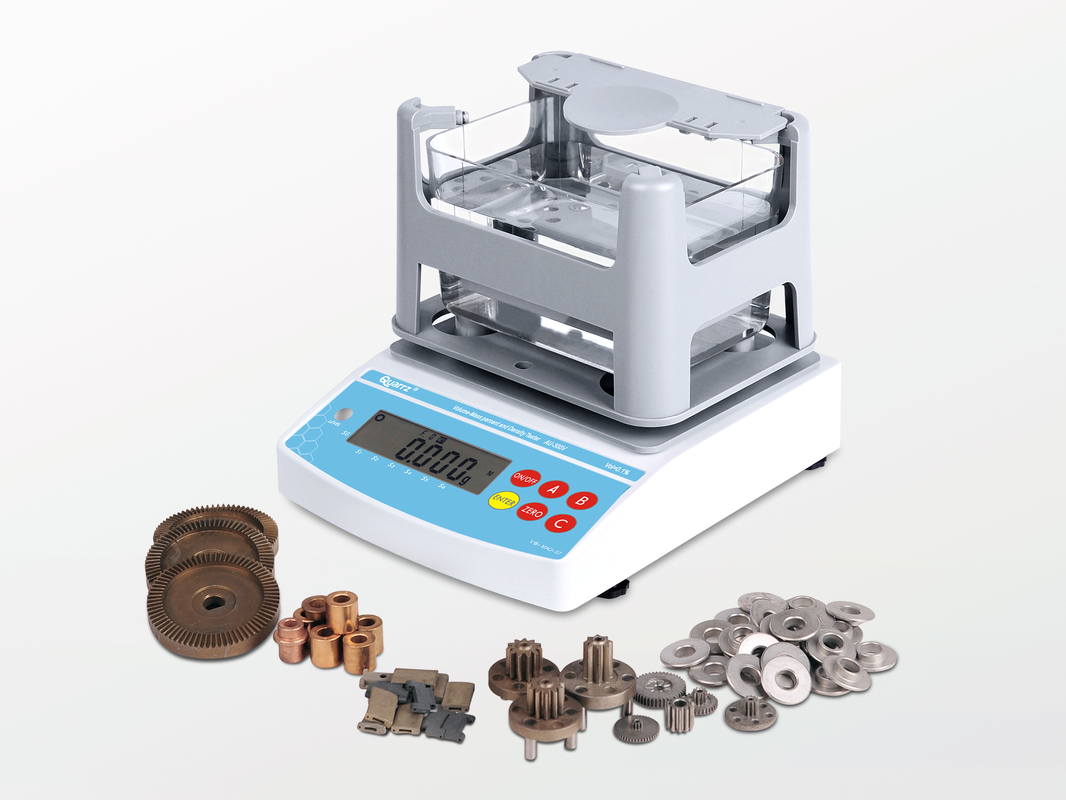

High Precision Oil Content and Density Measurement Instrument

Application:oil content,powder metallurgy,electric tools,air tools,mechanical parts,fan industry,motor industry,micro-motor,electrical industry,new materials researching laboratory.

Measuring resolution:

AU-120V,AU-200V density resolution:0.0001g/cm3,oil content resolution:0.01%

AU-300V,AU-600V,AU-900V,AU-1200V density resolution:0.001g/cm3,oil content:0.1%

Function and Feature:

1. Easy operation,accuracy,reliability

2. Oil content,density,oil total volume,oil volume can be read directly.

3. Either water or liquid can be used as medium.

4. Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.

5. Function of actual water temperature setting,measuring medium density setting,air buoyancy compensation setting,density top and bottom limitation setting.

6. Equipped special windproof dustproof cover,which makes the structure more convenient and durable.

7. Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.

8. Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm

9. Power supply:AC 100V-240V 50HZ/60HZ Europe standard

Oil length measuring procedure:

1. Place oil sample on testing board to measure weight in air.press ENTER key to memory.

2. Place sample into water,press ENTER key to memory.

3. After oil wiped off,place sample on testing board to measure weight.press ENTER key to memory.oil content will be displayed.

Standard Accessories:

(1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer

Anti-counterfeiting Announcement:

The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.

Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)

Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.

Method three:Check security code that generate automatically by machine number.

Technical Specification:
