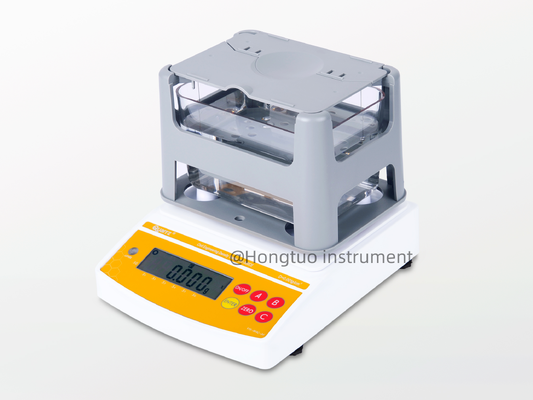

Wood Density Meter for High Precision Wood Material Testing
Application:wood,construction,engineering,furniture,researching laboratory.
Measurement resolution:
AU-120CE,AU-200CE density resolution:0.0001g/cm3
AU-300CE,AU-600CE,AU-900CE,AU-1200CE density resolution:0.001g/cm3
Functions and Features:
1. Air-dry density,whole-dry density,basic density for wood can be measured directly.
2. Padauk,pine,nanmu,masson pine,cinnamomum camphora.,etc similar wood can be measured quickly.
3. Function of boil saturation method,vacuum saturation method,surface sealing wax method.
4. High weight precision,makes the testing result more accuracy and reliability.
5. Any shape can be measured instantly,suitable for quick measurement situation.such as site and laboratory.

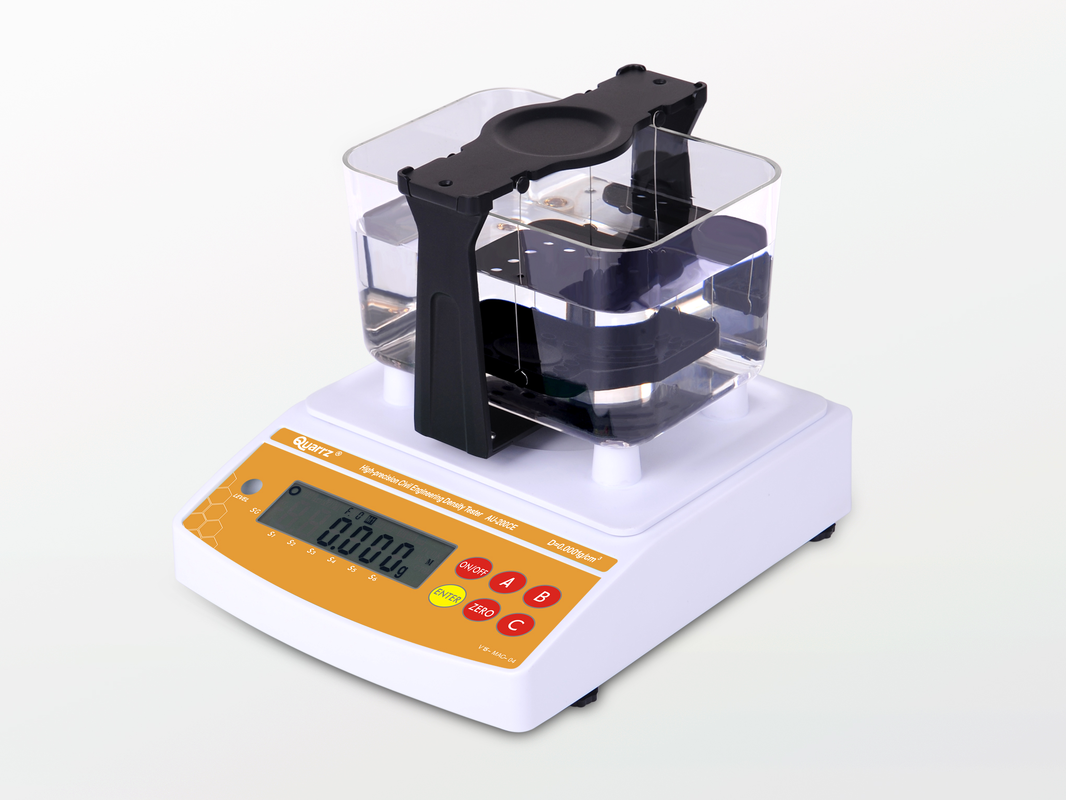

6. Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.
7. Adopt precision aluminum alloy completed testing board.
8. Equiped special windproof dustproof cover,which makes the structure R and durable.
9. Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.
10. Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm
Standard Accessories:
(1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer(9)one set of measuring floating components
Measuring Procedure:
(1)place sample on testing board to measure weight in air,press ENTER key to memory.
(2)after treated by saturated water,place sample on testing board to measure weight in air,press ENTER key to memory.
(3)place sample into water to measure weight,press ENTER key to memory,density value will be displayed.
Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
Method one:Start up,machine will display in sequence:brand,model(such as
QUARRZ,AU-300S)
Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
Method three:Check security code that generate automatically by machine number.
Technical Specification:
| Brand |
Quarrz |
| Model |
AU-300CE |
AU-600CE |
AU-900CE |
AU-1200CE |
AU-120CE |
AU-200CE |
| Weight |
range |
0.005~300g |
0.005~600g |
0.01~900g |
0.01~1200g |
0.001~120g |
0.001~200g |
| standard diviation |
0.005g |
0.005g |
0.01g |
0.01g |
0.001g |
0.001g |
| Density |
readability |
0.001 g/cm3 |
0.0001 g/cm3 |
| testing board |
ABS injection moulding |
Aluminum alloy |
| die-casting moulding |
| range |
0.001~99.999g/cm3 |
0.0001~99.9999g/cm3 |
| Result display |
air-dry density,whole-dry density,basic density |
| Measurement principle |
Archimedes buoyancy method |
| Measurement time |
Around 5 seconds |
| Opening lid method for testing board |
Rapid unobstructed without lifting lid design |
| Water tank |
Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm) |
| Parameter setting |
Water temperature setting,measuring medium density setting,waterproof medium density setting,top and bottom limitation setting,air buoyancy setting |
| Calibration method |
Single key calibration,automatically detection |
| Standard accessories |
(1)host(2)water tank(3)testing |
| board(4)tweezers(5)thermometers(6)weight(7)windproof |
| dustproof cover(8)one set of measuring floating accessory(9)power transformer |
| Data interface |
Standard RS-232 interface |
| Optional accessories |
AU-40 printer,data connection wire |
| Power supply |
AC100V~240V 50HZ/60HZ European standard |
| Gross weight/size |
4.5kg/length42.5 cm×width17.5 cm×height32.5cm |
