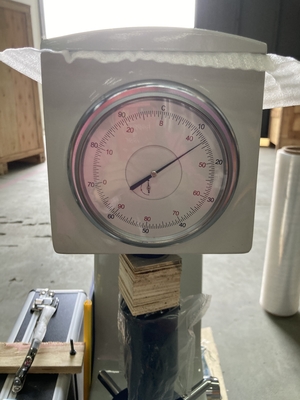

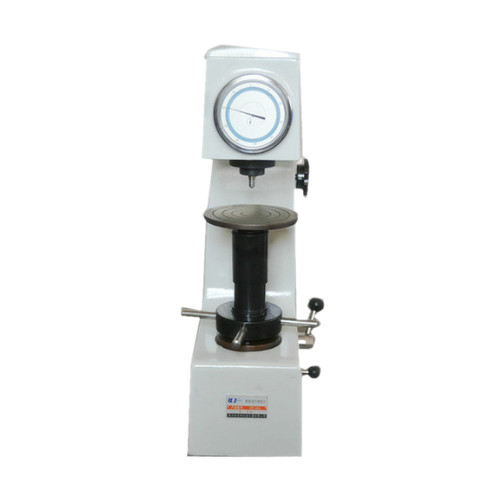

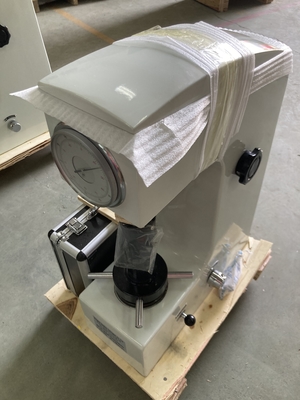

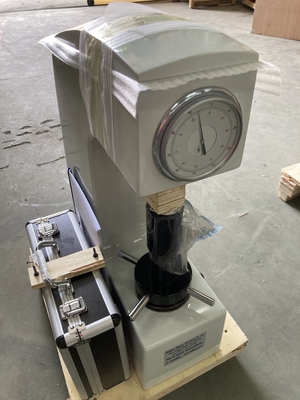

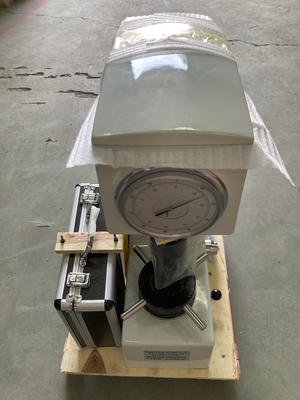

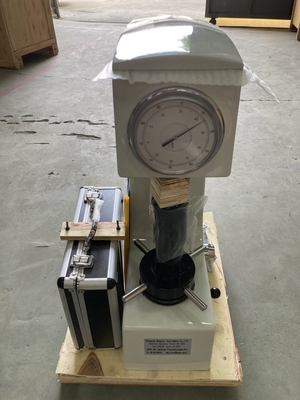

HR-45A Manual Superficial Rockwell Hardness Tester for Metals Alloy Steel
Introduction:
HR-45A surface Rockwell hardness tester can be used to determine steel, alloy steel, cemented carbide and metal surface treatment - such as carburizing, nitriding. The surface Rockwell hardness value of the electroplating layer is an indispensable hardness measuring instrument in the mechanical metallurgy and metrology departments.
Application range:
Determination of surface Rockwell hardness of ferrous metals, alloy steels, cemented carbides and metals after nitriding, cyanidation, carburizing, electroplating, etc.;
It is suitable for hardness testing of small parts samples;
Main features:
1. Lever loading, manual operation, precise and durable, high test efficiency;
2. Adopt universal boom (patent) to realize free connection between weight system and load lever;
3. Easy installation and low failure rate;
4. The dial can directly read the HEN and HRT scales (other scales of Rockwell on the surface are optional);
5. Accuracy conforms to GB/T230.2 ISO6508-2 and American ASTM E18 standard;
Main technical specifications:
| Measuring range |
70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15T, 29-82HR30T, 10-72HR45T. |
| Test force |
147.1, 294.2, 441.3 (N) |
| Maximum allowable height |
175 (mm) |
| Weight |
86 (kg) |
Standard configuration:
Large platform: 1 set.
Diamond cone indenter: 1 set.
Small platform: 1 set.
16 steel ball indenter: 1 set.
V-type test bench: 1 set.
Standard surface Rockwell hardness block: 4 pcs.
