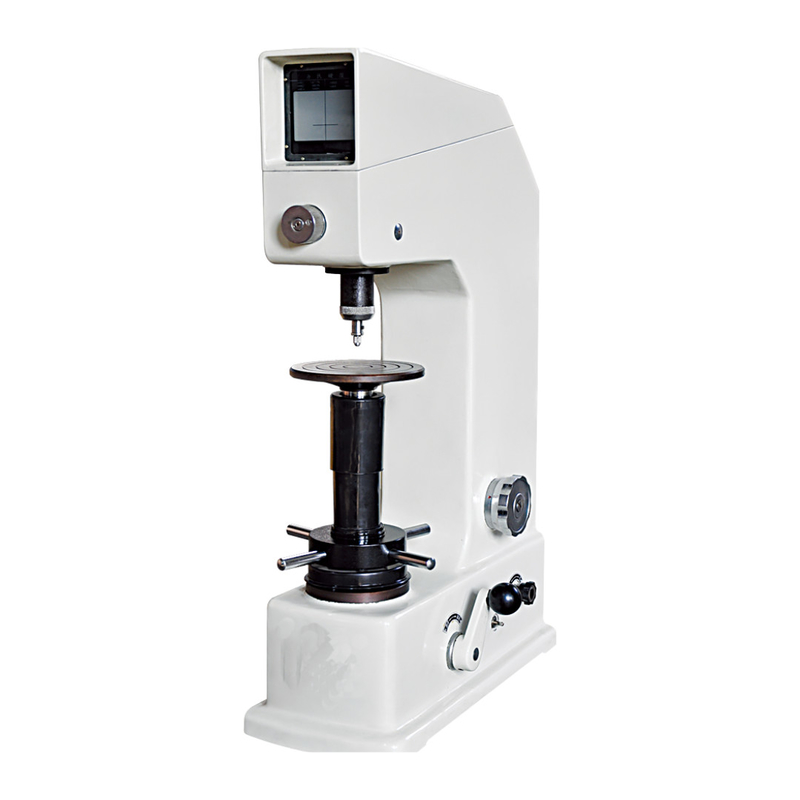

HBRV-187.5 Digital Display Brinell Rockwell Vickers Universal Hardness Tester Manufacturer Price
Application range:
Determination of rockwell ,brinell, vickers hardness of ferrous metals, nonferrous metals and cemented carbides;
Wide range of applications, suitable for parallel plane precision measurement, and surface measurement is stable and reliable.
Main features:
Lever load, optical screen reading, Brinell Vickers Rockwell hardness tester;
Mechanical reversing switch;
Strong construction, good rigidity, precise, reliable, durable, high test efficiency;
40xreading microscope measuring system, high precision;
40 Rockwell hardness scale, optical screen direct reading;
Precision conforms to the Standards of GB/T230.2,GB/T 231.2,GB/T4340.2,ISO6508-2,
ISO6507-2,ISO6506-2 and ASTM E18,ASTM E10,ASTM E92.
Main technical specifications:
| Measuring range |
4-650HBW, 20-88HRA, 20-100HRB,
20-70HRC, 200-1000HV
|
| Test force |
294.2, 306.5, 588.4, 612.9, 980.7, 1471, 1839N
(30,31,25,60,62.5,100,150,187.5kgf)
|
| Max. height of test piece |
200mm |
| Depth of throat |
160mm |
| Power |
AC200V 50/60HZ |
| Dimensions |
480 x 250 x 760mm |
| Weight |
approx. 95kg |
Standard configuration:
Big,Small and V anvil: 1 each
T1/16" steel ball indenter: :Φ2.5,Φ5 each
Brinell standardized block: 1pc
Diamond cone indenter:1pc
Diamond pyramid indenter: 1pc
Standard Brinell Hardness Block: 1pc
Standard Rockwell Hardness Blocks:1pc
40x reading microscope:1 pc
