Automatic Video Image Test Machine, Video Measuring System Machine, Optical Image Measuring Instrument
Product Details:
| Place of Origin: |
Dongguan |
| Brand Name: |
DahoMeter |
| Model Number: |
DH-CNC-5040A |
Payment & Shipping Terms:
| Minimum Order Quantity: |
one set |
| Price: |
USD999 to 28999 per unit |
| Packaging Details: |
standard exporting wooden package |
| Delivery Time: |
5 to 8 working days |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
300 sets per month |
Contact Now
Detailed Product Description
| Usage: |
Automatic Video Image Test Machine, Video Measuring System Machine, Optical Image Measuring Instrument |
Measuring Servo Drive System: |
Measurement Accuracy：≤3UM+L/200 Repeatability：≤3UM+L/200 |
| Imaging System: |
Automatic Zoom Lens: NAV HD Zoom Lens / / Continuous Magnification 0.7-4.5X |
Testing Before Delivery: |
Yes |
| After-sale Customer Service: |
Yes |
Automatic Video Image Test Machine, Video Measuring System Machine, Optical Image Measuring Instrument
►Product Features
- High precision automatic measuring,four axis CNC control.
- High precision and high strength machine:00 marble base/upright column/worktable,high precision and good stability.
- XYZ three axis imported precision linear guide rail/imported grinding level ball screw drive system.long service life,good stability.
- High precision grating ruler 0.5um.
- WM automatic zoom optical lens,automatic measurement,without zoom correction.
- HD Japanese Sony CCD camera,high quality measuring screen.
- Auto focus measurement,optical measuring altitude and flatness.and can be equipped with the British RENISHAW contact measuring head.
- Program controlled three ring eight area surface light,LED profile light,coaxial light.Different products with different color light.
- Equipped with control handle,easy to operate at any place.
- Combined with imported software,3D measuring software is developed to improve the boundary resolution capability.
►Specification
| Model |
DH-CNC-3020A |
DH-CNC-4030A |
DH-CNC-5040A |
| Workbench |
X/Y axis stroke |
300MM*200MM |
400MM*300MM |
500*400MM |
| Z axis stroke |
Effective space 245mm,focusing stroke 200mm,working distance 95mm |
| Metal countertop size |
450MM*350MM |
550MM*450MM |
700MM*600MM |
| Glass countertop size |
330MM*230MM |
430MM*330MM |
530MM*430MM |
| Transmission type |
X/Y/Z axis imported precision linear guide and imported grinding grade ball screw |
| Measuring servo drive system |
Optical ruler resolution:X/Y/Z axis 0.0005MM(0.5UM) |
| measurement accuracy:≤3UM+L/200 Repeatability:≤3UM+L/200 |
| X/Y/Z three-axis Taiwan high performance servo motor, double closed loop control system |
| Imaging system |
Camera: Japan SONY 1/3′′ CCD camera magnification 30-230X |
| Automatic zoom lens: NAV HD zoom lens / / continuous magnification 0.7-4.5X |
| When the optional 0.5X objective lens is available, the total magnification is 15-115X. |
| When the 2X objective is optional, the total magnification is 60-460X |
| Light source system |
Surface light source and transmission source LED cold light source, long life and adjustable brightness |
| Instrument dimensions(L*W*H) |
700MM*850MM*1650MM |
800MM*900MM*1650MM |
900MM*1050MM*1650MM |
| Instrument weight(KG) |
330KG |
400KG |
550KG |

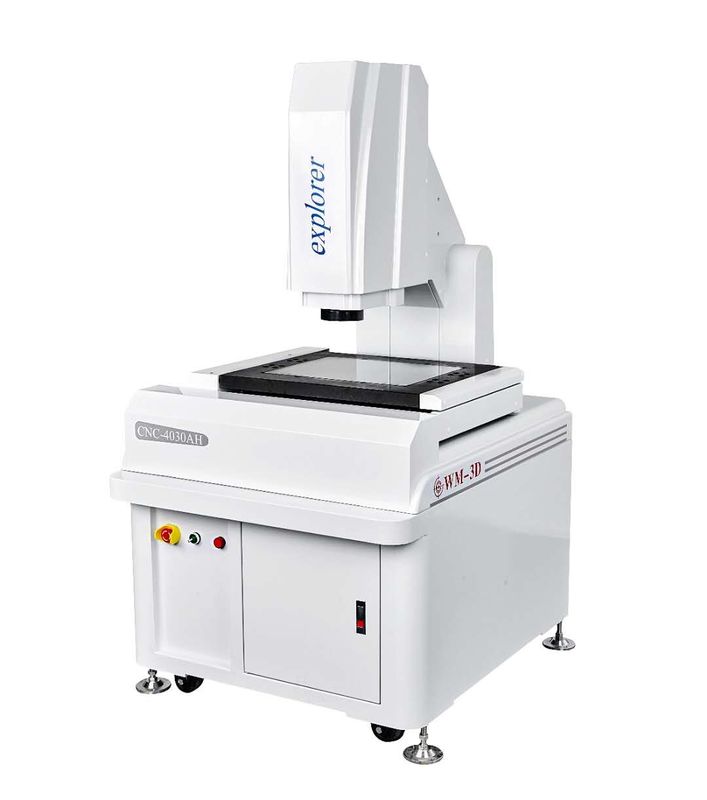

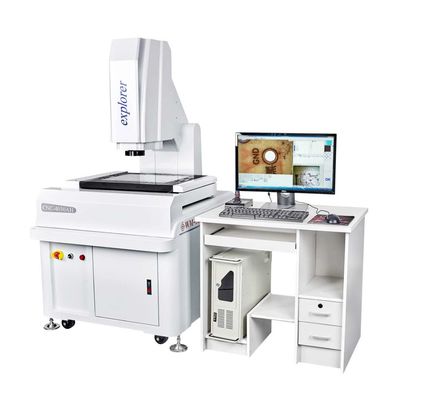

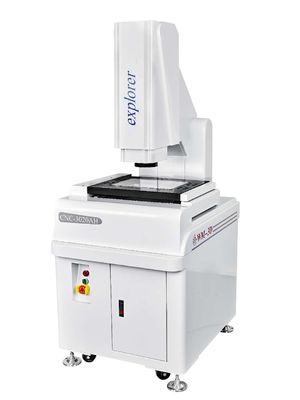

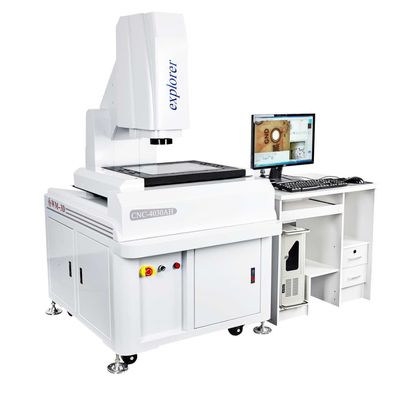

►Detail Images
