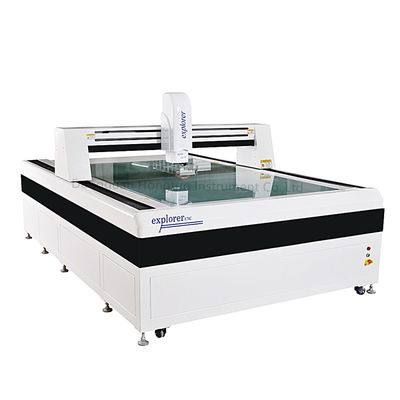

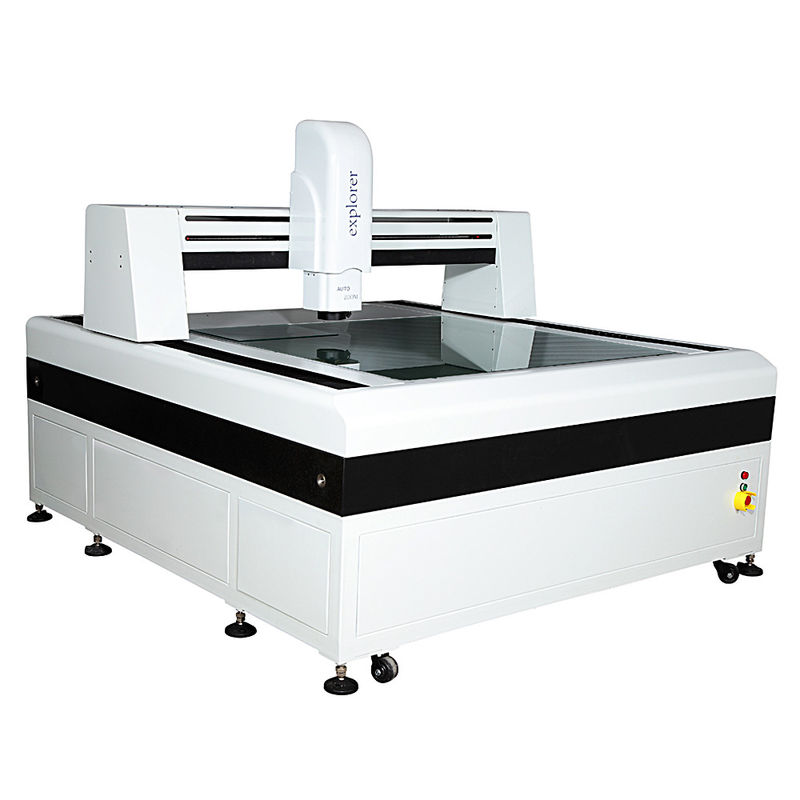

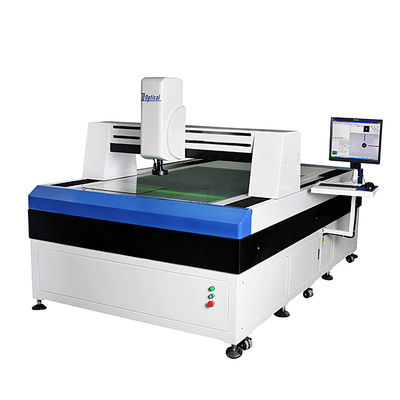

Longmen Automatic Optical Inspection System Machine, Optical CNC Video Measuring Instruments
Introduction
Longmen CNC measuring machine is a large scale CNC type video measuring machine developed by our company independently.It can realize high efficiency and accurate measure large quanitities of workpieces.It is suitable for the inspection and quality control of preision parts.In the machinery,electornics,hardware and other industries have been widely used.
Product Features
1.High precision overall measurement,Z axis CNC control.
2.High precision and high strenght machine:00 marble base/upright column/worktable,high precision and good stability.
3.XYZ thress axis imported precision V type guide rail/imported grinding level ball screw drive system,long service life,good stablity.
4.High precision grating ruler 0.5μm.
5.WM continuous zoom optical lens,different frames,different magnification,no need zoom correction.
6.HD japanese SONY CCD camera,high quality measuring screen.
7.Auxiliary focusing measurement,optical measuring altitude and flatness,and can be equipped with the British RENISHAW contact probe.
8.Program controlled three ring eight area surface light,LED profile light,coaxial light.Different products with different color light.
9.Equipped with Control handle,easy to opreate at any place.
10.The laser pointer indicates the positions of measuring,rapid positioning and convenient measurement.
Specification
| Machine Model |
DH-CNC-4030D |
DH-CNC-5040D |
DH-CNC-6050D |
DH-CNC-6080D |
| Work table |
X/Y axis travel mm |
400*300 |
500*400 |
600*500 |
800*600 |
| Z axis travel mm |
Effective space is 245mm,focusing stroke is 200mm,work distance is 95mm |
| Mental table size mm |
600*500 |
700*600 |
800*700 |
1000*800 |
| Glass table size mm |
500*400 |
600*500 |
700*600 |
800*600 |
| Drive type |
X/Y/Z axis precision linear guide, grinding ball screw drive. |
| Measure drive system |
Optical scale resolution:X/Y/Z axis 0.0005mm(0.5μm) |
| Measure accuracy:≤3μm+L/200 reapeatability accuracy:≤3μm+L/200 |
| Z axis high performance servo motor,double closed loop control system. |
| Image System |
Camera:Japanese SONY CCD video magnification 30-230X |
|
Len:high definition zoom lens/Continuous magnification 0.7-4.5X
Can match 0.5X objective lens,total magnification:15-115X
Can match 2X objective lens,total magnification:60-460X
|
| Light system |
Surface light and projection light,cold light,long life,brightness adjustable. |
| Machine external dimension |
700*900*1650 |
1100*1000*1650 |
1300*1600*1650 |
1300*1800*1650 |
| Weight kg |
800 |
1000 |
2000 |
2600 |
