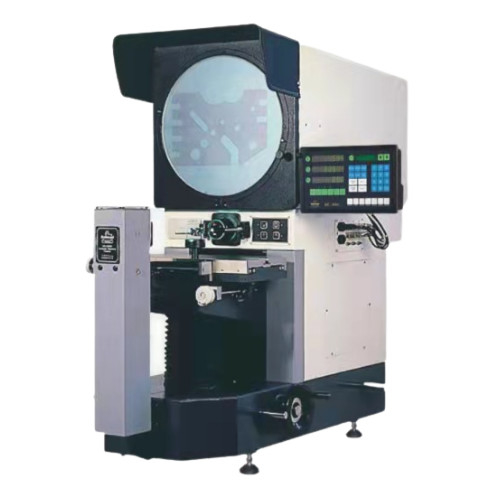

Digital Horizontal Profile Projector Optical Profile Section Surface Measuring Comparator CPJ-4025W

Product Details:

Place of Origin:	Dongguan, Guangdong
Brand Name:	DahoMeter
Certification:	CE,FCC
Model Number:	CPJ-4025W

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	USD3600 to USD8999
Packaging Details:	standard exporting wooden package
Delivery Time:	5-10 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Horizontal Optical Profile Projector	X-axis Travel (mm):	250
Y-axis Travel (mm):	150	Worktable Size (mm):	450×200

Digital Horizontal Profile Projector Optical Profile Section Surface Measuring Comparator CPJ-4025W

Digital Horizontal Profile Projector Optical Profile Section Surface Measuring Comparator CPJ-4025W

Usage:

1. Profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.

2. It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department. 3. This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on

Features:

1. Horizontal profile projector

2. Easy to operate

3. Resolution of linear scale: 0.5um

4. Powerful Digital Readout to support easy and accurate measurement

5. Reliable and cost-effective

6. Precise and accurate

7. Low maintenance cost

8. Optional Proprietary software

Specification:

Model		CPJ-3020W		CPJ-4025W
X-axis Travel (mm)		200		250
Y-axis Travel (mm)		100		150
Worktable size (mm)		400×150		450×200
Swing range		±15°		±15° ( can be custom made to ±25°)
Resolution (μm)		0.5
Indication error (mm)		X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/50 (L is the length of the measured object. Unit: mm)
Z-axis Travel (mm)		75 (focusing)		100 (focusing)
Weight (kg)		160		240
Dimension (mm)		1090×830×1010		1215×646×1210
Projectorscreen	Size (mm)	∅ 300		∅400
	Rotary range	0~360°
	Resolution	1’ or 0.01°
Lens (CPJ-3020W)		Magnification	10× (Optional)	20× (Optional)	50× (Optional)	100× (Optional)
		Field of view (mm)	∅30	∅15	∅6	∅3
		Working distance (mm)	77.7	44.3	38.4	25.3
Lens (CPJ-4025W)	Magnification	5× (Optional)	10× (Standard)	20× (Optional)	50× (Optional)	100× (Optional)
	Field of view (mm)	∅ 80	∅40	∅20	∅8	∅4
	Working distance (mm)	93.7	103.9	95.1	65.7	35.0
Data processing system		Multi-functional DRO DC-3000
Illumination		Transmission: 24V/150W halogen lamp. Reflection: 21V/150W halogen lamp.
Accessories		Printer, edge detector, Measuring software M2D-CPJ, etc.
Power supply: AC 100-240V 50/60Hz. Total power: 450W
