3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine

3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine

    • 3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine
    • 3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine
    • 3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine
    • 3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine
  • 3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine

    Product Details:

    Place of Origin: Dongguan
    Brand Name: DahoMeter
    Model Number: DH-CNC-3020A

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to 28999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 to 8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: 3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine Testing Before Delivery: Yes
    After-sale Customer Service: Yes

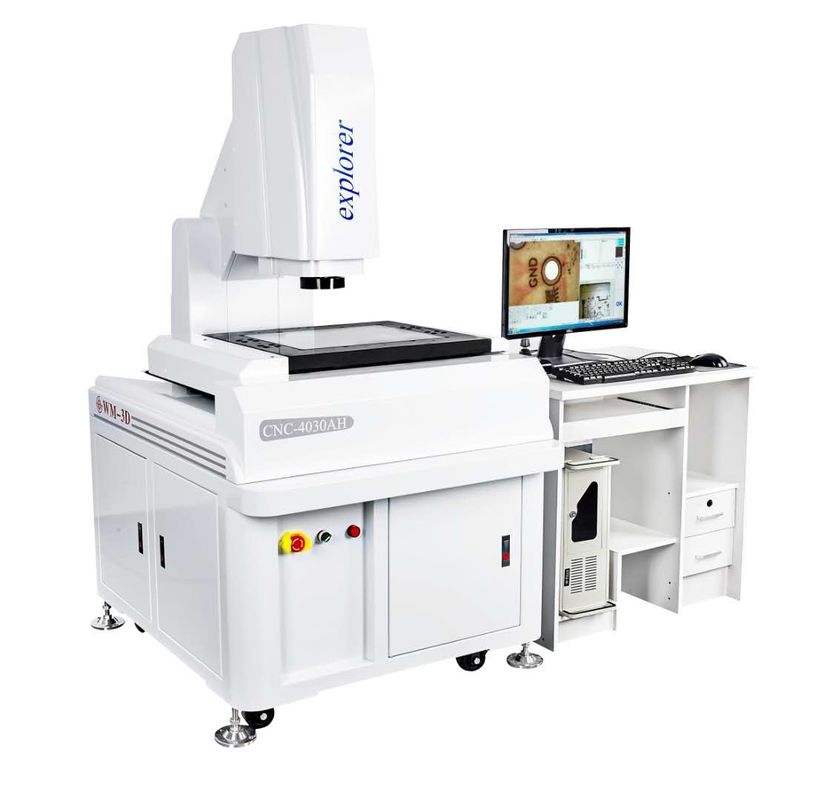

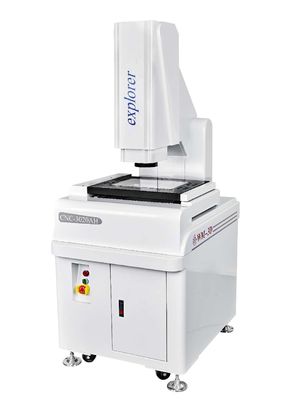

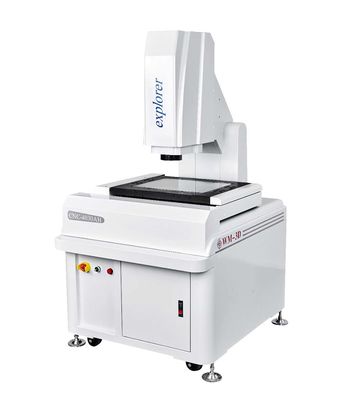

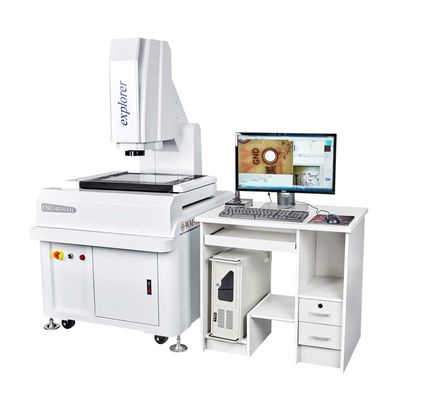

    3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine





    ►Product Features



    • High precision automatic measuring,four axis CNC control.
    • High precision and high strength machine:00 marble base/upright column/worktable,high precision and good stability.
    • XYZ three axis imported precision linear guide rail/imported grinding level ball screw drive system.long service life,good stability.
    • High precision grating ruler 0.5um.
    • WM automatic zoom optical lens,automatic measurement,without zoom correction.
    • HD Japanese Sony CCD camera,high quality measuring screen.
    • Auto focus measurement,optical measuring altitude and flatness.and can be equipped with the British RENISHAW contact measuring head.
    • Program controlled three ring eight area surface light,LED profile light,coaxial light.Different products with different color light.
    • Equipped with control handle,easy to operate at any place.
    • Combined with imported software,3D measuring software is developed to improve the boundary resolution capability.





    ►Specification



    Model DH-CNC-3020A DH-CNC-4030A DH-CNC-5040A
    Workbench X/Y axis stroke 300MM*200MM 400MM*300MM 500*400MM
    Z axis stroke Effective space 245mm,focusing stroke 200mm,working distance 95mm
    Metal countertop size 450MM*350MM 550MM*450MM 700MM*600MM
    Glass countertop size 330MM*230MM 430MM*330MM 530MM*430MM
    Transmission type X/Y/Z axis imported precision linear guide and imported grinding grade ball screw
    Measuring servo drive system Optical ruler resolution:X/Y/Z axis 0.0005MM(0.5UM)
    measurement accuracy:≤3UM+L/200 Repeatability:≤3UM+L/200
    X/Y/Z three-axis Taiwan high performance servo motor, double closed loop control system
    Imaging system Camera: Japan SONY 1/3′′ CCD camera magnification 30-230X
    Automatic zoom lens: NAV HD zoom lens / / continuous magnification 0.7-4.5X
    When the optional 0.5X objective lens is available, the total magnification is 15-115X.
    When the 2X objective is optional, the total magnification is 60-460X
    Light source system Surface light source and transmission source LED cold light source, long life and adjustable brightness
    Instrument dimensions(L*W*H) 700MM*850MM*1650MM 800MM*900MM*1650MM 900MM*1050MM*1650MM
    Instrument weight(KG) 330KG 400KG 550KG







    ►Detail Images

    3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine



    Packing



    3D Optical Image Measuring Instrument, CNC Vision Inspection System Video Measuring Machine
