    Product Details:

    Place of Origin: Dongguan
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: DH-150

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD399 to 9999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 25 to 30 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    System: Balanced Temperature&humidity Control System Humidity Range: 20~98% R.H
    Temp.fluctuation: +-0.5℃ Humidity Fluctuation: +-2.5%R.H
    Temperature Deviation: +-2.0℃

    High Quality Small Bench Top Environmental Testing Chamber Manufacturers



    Usage:

    This equipment can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment,communication,instrument,car,plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.



    Features:

    (1)The outer case is made up of SECC steel plate with spraying plastic.CNC processing molding,Beautiful design,Reactionless holder,easy operation

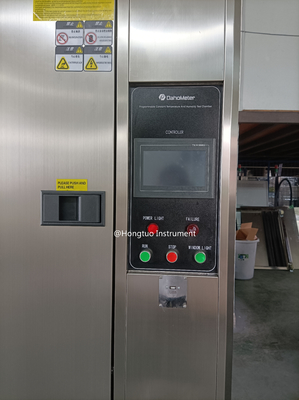

    (2)Large LCD touching screen
    (3)Adopt micro-computer temperature humidity controller.accuracy and reliability
    (4)Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time
    (5)Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing
    (6)Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outter power cable or signal cable
    (7)Adopt high quality fixed PU running wheel in the bottle of machine
    (8)New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%



    Specification:



    Model DH-080 DH-150 DH-225 DH-408 DH-800 DH-1000

    Interior dimensions

    (WxHxD)cm

    40X50X40 50X60X50 50X75X60 60X85X80 100X100X80 100X100X100

    Exterior dimenstions

    (WxHxD)cm

    97X136X97 107X146X107 107X161X117 117X171X127 155X185X130 155X185X147
    Internal volume(L) 80 150 225 408 800 1000
    Temp.humid range 0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH
    Performance Constancy ±0.2°C;±2.5%RH
    Uniformity ±2°C;±3.0%RH
    Heating up time 100°C 150°C 100°C 150°C 100°C 150°C 100°C 150°C 100°C 150°C 100°C 150°C
    25min 35min 30min 40min 30min 40min 30min 40min 35min 45min 35min 45min
    Pull up time 0 -20 -40 -70 0 -20 -40 -70 0 -20 -40 -70 0 -20 -40 -70 0 -20 -40 -70 0 -20 -40 -70
    30 45 65 100 30 45 65 100 30 45 65 100 30 45 65 100 30 45 65 100 30 45 65 100
    Power(k.w) 4.5 5 5.5 6.5 5 5.5 6 7.5 5.5 6 6.5 8.5 6 6.5 7 9.5 6.5 7 7.5 10.5 7 7.5 8 11.5
    Weight(kg) 200 250 300 400 600 700
    Material Interior material Stainless steel plate(sus304)
    Exterior material Stainless steel plate(sus304)
    Insulation material Rigid polyauethane foam and glass wool
    System The wind circulation Centrifugal fan + wide-band forced air circulation (up output and bottom input)
    Refrigerating mode Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor)
    Refrigerator R404A R23 U.S.A HONEYWELL
    Heater Iron-chrome wire heater
    Humidifier Stainless steel sheathed heater
    Water supply method Water pump out system
    Accessories

    Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp,

    1set/product description

    Safety device No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices
    Power 1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ
