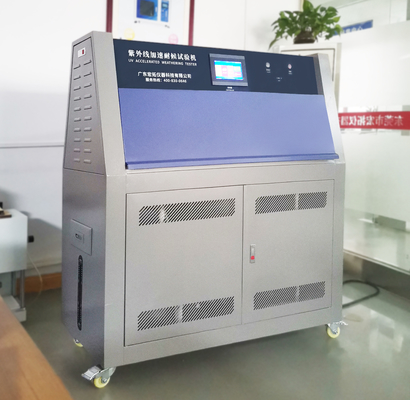

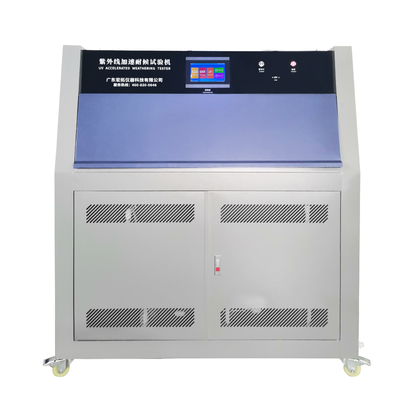

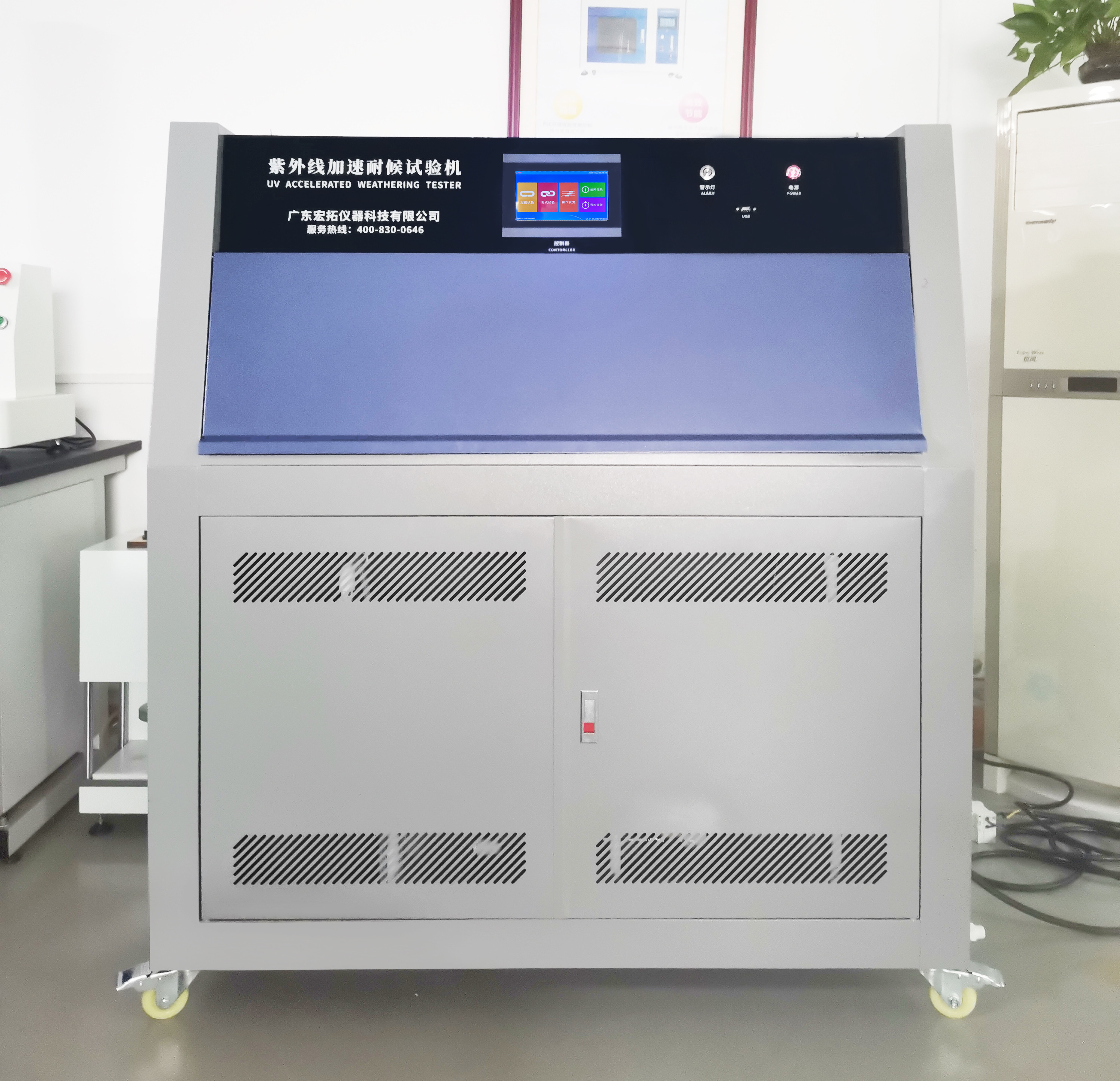

China Professional Supplier UV Light Chamber, UV Lamp Tester

China Professional Supplier UV Light Chamber, UV Lamp Tester

    • China Professional Supplier UV Light Chamber, UV Lamp Tester
    • China Professional Supplier UV Light Chamber, UV Lamp Tester
    • China Professional Supplier UV Light Chamber, UV Lamp Tester
    • China Professional Supplier UV Light Chamber, UV Lamp Tester
    • China Professional Supplier UV Light Chamber, UV Lamp Tester
    • China Professional Supplier UV Light Chamber, UV Lamp Tester
  • China Professional Supplier UV Light Chamber, UV Lamp Tester

    Product Details:

    Place of Origin: Dongguan
    Brand Name: DahoMeter
    Model Number: DH-RUV-1

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD399 to 9999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 25 to 30 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Uv Aging Test Chamber After-sale Customer Service: Yes
    Testing Before Delivery: Yes

    China Professional Supplier UV Light Chamber, UV Lamp Tester



    Usage:



    UV testing chamber is suitable for testing the aging degree for the materials or the products in the climate condition of sunlight,temperature,humidity,condensation and rain.,etc.Can get the result of color

    changing,color fading,dulling,chalking,cracking,muddy,fragility,alveolation,strength retrogression and oxidation .,etc.





    Standards:



    ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE, J2020, ISO 4892 All current UV aging test standards.





    Features:



    (1).The installation thickness is adjustable;Easy installation.

    (2).Upward spinning door is not in the way of users to operate machine;The machine is only took very small space.

    (3).By using special cooling system,the ordinary tap water is allowed to be used.

    (4).Very convenient software program;Will automatically alarm if operate wrongly or machine breakdown;light intensity can be programmed.

    (5).The lifetime of tube can be extended if has radiation calibrator.(more than 1600 hours)

    (6).Can be divided into ordinary type,light irradiation controlling type,spraying type.





    Specification:



    Model DH-RUV-1
    Studio size: 1140mm × 400mm × 380mm
    Dimensions: 1300mm × 500mm × 1460mm
    Center distance of the lamp: 70mm
    The distance between the specimen and the nearest parallel surface of the lamp surface: About 50mm
    Wavelength range: UV-A wavelength range is 315~400nm/UV-B wavelength range is 290~313nm
    Radiation intensity: 1.5W/m2/340nm
    Temperature resolution: 0.1 ° C
    Light temperature range: 50 ° C ~ 70 ° C / temperature tolerance is ± 3 ° C
    Condensation temperature range: 40 ° C ~ 60 ° C / temperature tolerance is ± 3 ° C
    Blackboard thermometer measurement range: 30~80°C/tolerance is ±1°C
    Temperature control method: PID self-tuning temperature control mode
    Humidity range: About 45% to 70% R.H (lighting state) / 98% or more (condensation state)
    Sink requirements: Water depth is not more than 25mm, and there is automatic water supply controller
    Standard test piece size: 75×150mm 48pcs
    Recommended instrument environment: 5~35°C, 40%~85%R·H, 300mm from the wall



    China Professional Supplier UV Light Chamber, UV Lamp TesterChina Professional Supplier UV Light Chamber, UV Lamp TesterChina Professional Supplier UV Light Chamber, UV Lamp Tester
