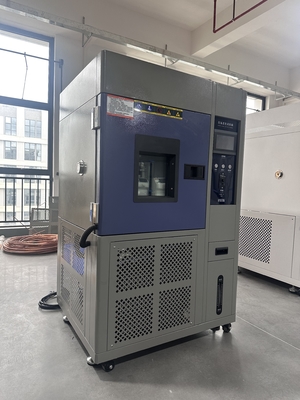

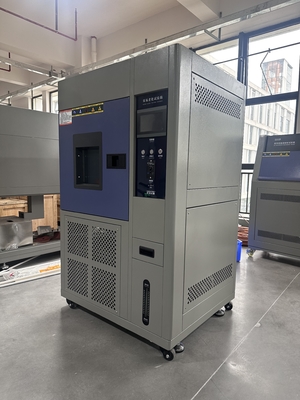

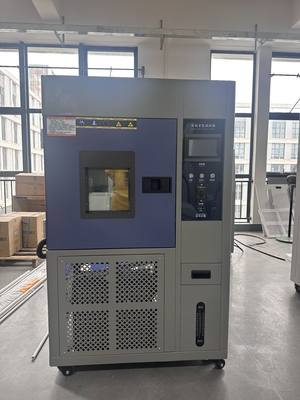

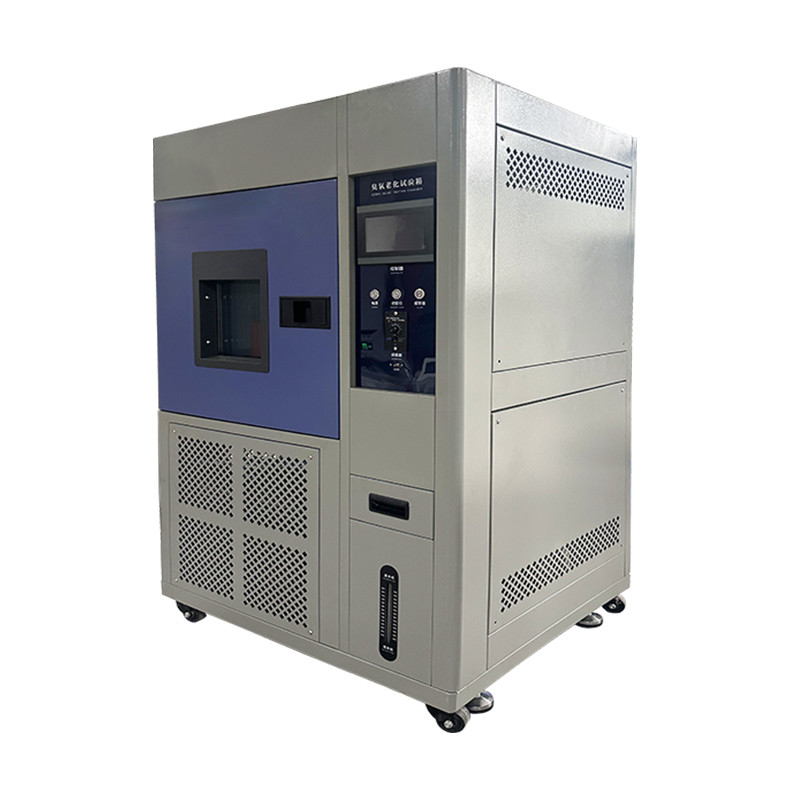

Ozone Aging Testing Machine / Chamber / Oven / Cabinet / Equipment
Features:
1. The test system has a reasonable structure design, standardized manufacturing process, and beautiful and generous appearance.
2. 24-hour online continuous detection, data can be checked at any time.
3. It adopts an integrated ozone concentration, temperature and humidity controller (the setting method is a light touch button type), with high integration, good reliability, LED display, display resolution temperature (0.1℃), ozone concentration (1pphm), PID set value control, and easy operation.
4. The dedicated ozone detector meets the internationally recognized standard for ozone detection, with stable performance, automatic zero control, ozone-free cold light source UV lamp with long life and high accuracy.
5. The interface of classic chemical test ozone concentration is reserved for convenient calibration analysis and testing.
6. The equipment has the following safety protection devices: power overload, short circuit protection, control circuit overload, short circuit protection, grounding protection, overtemperature protection, alarm sound prompt, and water shortage protection.
Standards:
GB/T 7762 Vulcanized rubber or thermoplastic rubber Ozone cracking resistance static tensile test
GB/T13642 Vulcanized rubber ozone aging test-dynamic tensile test method
GB/T 13642-2015 Vulcanized rubber or thermoplastic rubber Ozone cracking resistance dynamic tensile test
GB/T 24134-2009 Evaluation of ozone resistance of rubber and plastic hoses under static conditions
HG/T 2869 Rubber and plastic hoses-Evaluation of ozone resistance under static conditions
ISO 1431-1 Vulcanized or thermoplastic rubber. Ozone resistance. Part 1: Static and dynamic strain test
Specification:

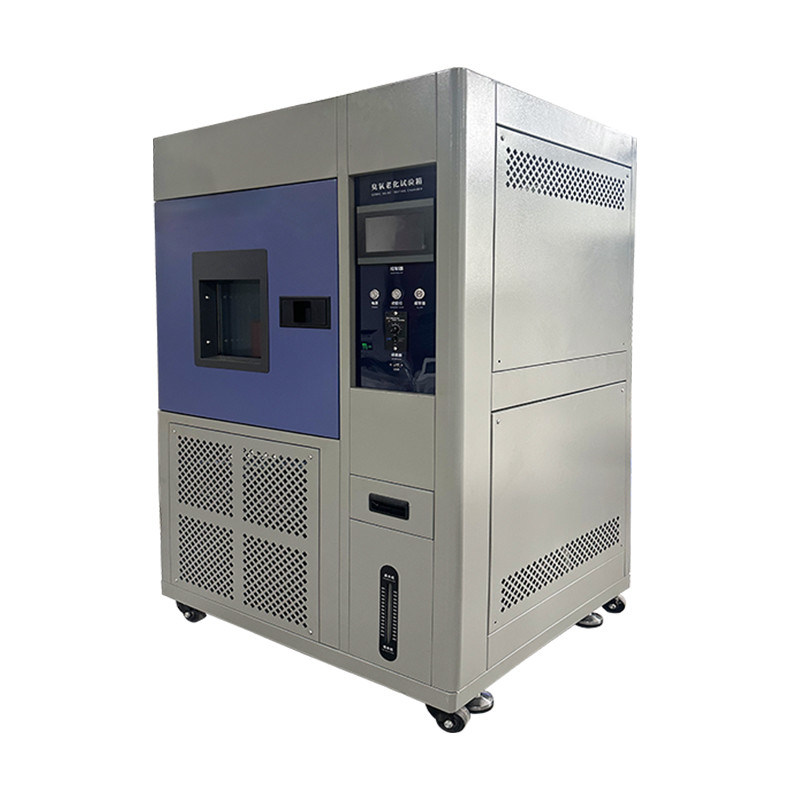

1.Model:DH-OA-100
2. Ozone concentration range: 30~1000pphm (minimum 30pphm without humidity requirement)
3. Ozone generation method: ozone generator method
4. Air speed in the box: 8-20MM/S (range can be adjusted appropriately, cannot be displayed)
5. Ozone concentration fluctuation: ±10%, temperature 40∽55 degrees, humidity 60∽80% ozone concentration fluctuation ±1pphm
7. Temperature resolution: 0.1℃
8. Temperature fluctuation: ±0.5℃ Temperature range RT+10-75℃.
9. Humidity range: 40%~80% (usually 65%)
10 Humidity: 0.1%RH.
11. Rotation mode: 360 degree rotating sample rack (speed 1-5 rpm)
12. Inlet air flow: A. 0-6 cfm; B. 10-20 cfh
13. Test work: 6 sets of new sample racks, 3 sets of static stretching, 3 sets of dynamic stretching.
14. Studio size: 500×500×400 mm (width*depth*height)
15. Equipment weight: about 300 Kg
16. Equipment power supply: 380V 3.5 KW
Introduction of Structure:
1. The test box is an integral structure. The air handling system is located at the lower rear part of the box, and the detection and control system is located on the right side of the test box.
2. There are air duct interlayers on three sides of the studio, distributed heating humidifiers (ordered according to the model), circulating fan blades and other devices. The upper layer of the test box is equipped with a balanced exhaust hole. The gas in the test room needs to be continuously discharged to maintain the balance of the gas concentration in the test box. The test box has a single door and is sealed with ozone-resistant silicone rubber.
3. The test box is equipped with an observation window and a switchable lighting lamp.
4. The touch screen intelligent controller is located in the right front of the equipment.
5. Air circulation device: built-in circulating air duct, the test airflow is evenly parallel to the surface of the specimen from top to bottom,
6. The shell is made of high-quality cold-rolled plate and the surface is electrostatically sprayed.
7. The air source adopts an electromagnetic oil-free air pump.
8. Stainless steel magnetic electric heater.
9. Silent discharge ozone generating assembly.
10. Special motor, centrifugal convection fan.
11. Under-mounted water tank water supply, water level automatic control.
12. Gas flow meter, accurately controlling the gas flow at each level.
13. Equipped with gas purification device. (Activated carbon absorption and silica gel drying tower)
14. Embedded industrial control integrated computer (7-inch color touch screen).
Before the equipment is shipped, the equipment list and delivery time must be confirmed with Party A, and the equipment can only be shipped after confirmation. After the equipment arrives, Party B will send a special person to conduct an initial unpacking acceptance of the equipment. The acceptance content is as follows:
a.Whether the equipment specifications, models and quantities are complete;
b.Whether the equipment parts and accessories are complete and intact;
c.Whether the equipment parameters meet the technical requirements;
d.Whether the equipment information is complete;
