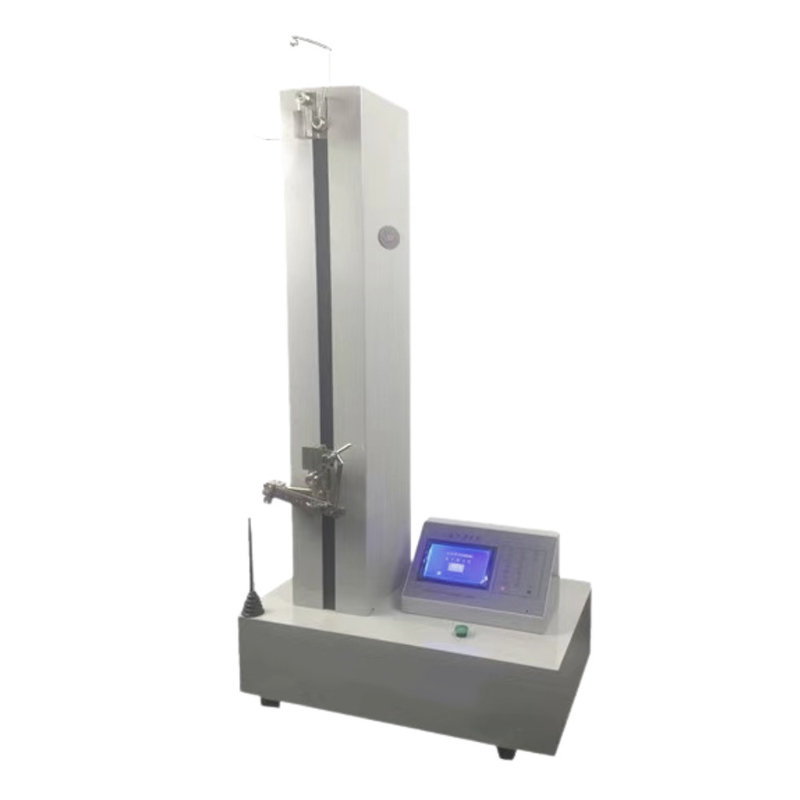

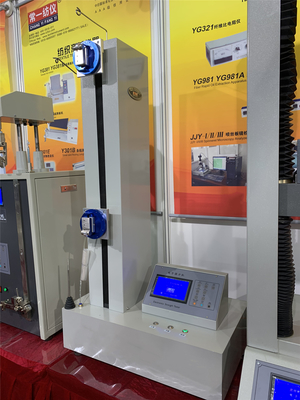

Digital Textile Tensile Strength Testing Machine Single Yarn Tensile Strength Tester YG020A
Application:
Determination of breaking strength and breaking elongation of individual yarns.
LCD display, with function of data storage, retrieval, statistics, printing.
It can be connected to a PC with special software, and the data can be saved or printed out.
It is used to test the breaking strength and elongation of single yarn and fiber pure or blended yarn of various cotton, wool, silk, chemical fiber and core-spun yarn.
Standards:
GB/T2543.1.2,14345;ISO2061;BS2085;ASTM D1422,1423;JISL1095
Main Technical Data
| The maximum strength ranges |
500CN, 5000CN, 100N, 200N, 300N, 500N. (please choose) |
| Measuring range |
2-110%, division value: 0.1CN (500CN), 1CN, accuracy: 1%, 0.1%FS, load resolution: 1/50000 |
| Clamping distance |
10-500MM stepless adjustable, digital setting, automatic positioning. |
| Tensile speed |
10-800MM/MIN, division value: 1MM/MIN, accuracy: 1% |
| Recovery speed |
10-800MM/MIN, division value: 1MM/MIN, accuracy: 1% |
| Effective stroke |
700MM (when the clip distance is 500MM, the stroke is 200MM), elongation resolution: 0.1MM |
| Pre-tension |
0-150cN tension scale |
| Power supply |
AC220V±10% 50Hz 0.25Kw |
| Dimensions |
L600×W350×H1100mm |
| Weight |
60Kg |
| Test function |
tensile fracture, elastic recovery (constant elongation strength, constant elongation elongation) can be selected, in line with various national standards GB, ISO, AATCC, BS.DIN, JIS, etc., strength unit N, CN, KG, LB |
| Optional |
Yarn clamps can be manually clamped. Custom pneumatic grips are also available. |
