Environmental Rain Spray Simulation Test Chamber, Automatic Waterproof Testing Machine
►Application
This rain test equipment is a non-standard equipment. The artificial simulated rain test box is used for the external lighting and signal devices and the protection of automotive lamp housings. It is an indispensable testing equipment in aerospace, automobile and motorcycle, electrical and electronics, home appliances, scientific research and other fields.
►Technical parameter
Experimental space: 600x600x600 (WxHxD)mm
Power supply: 220V three-phase 50 / 60HZ MAX 30A.
Water spray pendulum pipe radius: 200mm
Water spray pipe diameter: Φ16mm
Water jet aperture: Φ0.4mm
Water jet aperture distance: 50mm
Spray pipe swing: 45 °, 60 °, 90 °, (adjustable)
Swing speed: 4-25 RPM 0-25 RPM adjustable (fixable point setting)
Water pressure: 1kg / cm2 ~ 3kg / cm2 (adjustable)
Pressure: 0 ~ 6kg / cm2 (adjustable)
Rainfall: 2.5 (+1.6) mm / min
Turntable speed: 0 ~ 20rpm
Flow meter: 5 ～ 10L / min, one set.
►Structure and Feature
1.Internal SUS # 304 stainless steel plate
2.External SUS # 430 stainless steel plate
3. Motor pump: stainless steel corrosion-resistant high-pressure pump.
4. Pump type: Multi-wing scroll convection.
5. Rotating motor: 120W speed regulating motor with speed governor.
6. Swing mechanism motor: Baishan stepping drive group, precise action
7. One set of JIS-S standard nozzles, one set of SAE nozzles, one set of swing tube, 18 nozzles, the nozzle diameter is 0.4mm.
8.Water flow: 0.1 ± 0.005 ~~ 12 ± 0.05L / min (adjustable)
9. Test range: GBT 10485 JIS-(S1, S2) SAE
A. GBT 10485 Method A
B. GBT 10485 Method B:
C. JIS D0203 (S1-S2) S1, S2——water pressure 0.1, 0.3 Mpa; nozzle 40 (material SUS 304 stainless steel), flow rate 24.5 L / min, 39.2 L / min (negotiable)
D. Customizable work (working parameters can be customized)
►Working Principle
1.Water spray working principle:
The water pump draws water from the water tank in the test box. The water tank → pump → ball valve → filter → pressure regulating valve → flow meter → swing tube (water pressure gauge) in the box → nozzle → test sample → water tank

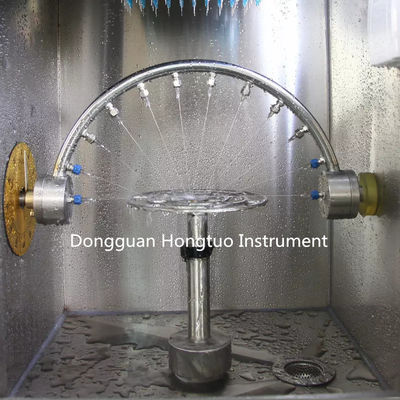

2.Swing tube transmission works:
Transmission motor → reducer → turntable → connecting rod → rack → gear → connecting shaft → swing tube. The angle of the swing tube can be adjusted by the turntable on the reducer.
►Electrical control
1. The sample turntable is controlled by a digital speed regulator (also controlled by a frequency converter, otherwise agreed), and the speed of the turntable is adjusted by directly rotating the speed regulation button.
2. The swing tube is controlled by the controller, and any parameter within the range can be freely set. In addition, the continuous work and gap work of the swing tube can be freely switched, and the time of gap work and continuous work can be set.
3. You can set the total test time according to your needs. This equipment also has time accumulation function. (That is, after each time the device is powered on, the time totalizer continues to last time when the device is powered on, and the totalizer can be cleared)
Note: The above time control is controlled by the respective time relay. The maximum setting time is 99 hours. The unit of time is hour, minute and second. (Except the time relay of the total time, the maximum value of the time relay of the total time is 999 hours, and the unit of time is hour).
►Security protection system
1. Self-protection, three voltage phases are out of phase, phase sequence protection, prevent the pump from reversing.
2. Motor overload protection device
3. Equipment overcurrent protection device
4, with no fuse protection switch
5.When over-temperature and low water level, the machine warning light indicates that the machine will automatically stop.
6.Water pressure overload protection switch
7.Pump overload protection switch
8.Motor installed with overcurrent protector
9.Chinese instruction screen of failure point
7. Power and environmental requirements:
1.Power supply: 220V 50Hz
2. The ambient temperature of the machine is maintained between + 5 ~ + 35 ℃.
3. There must be water supply (common tap water) and drainage pipes.

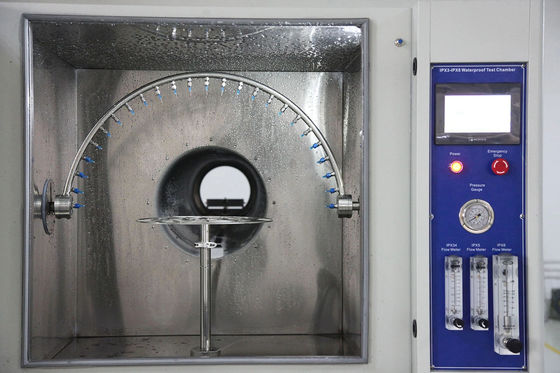

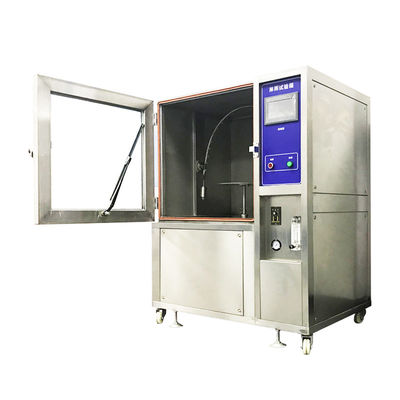

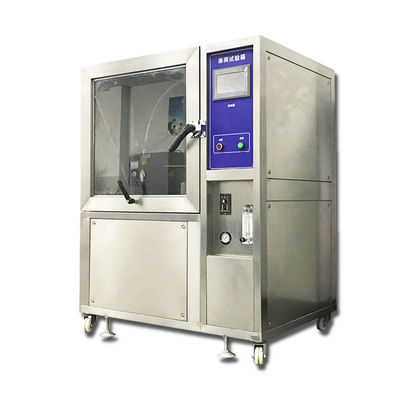

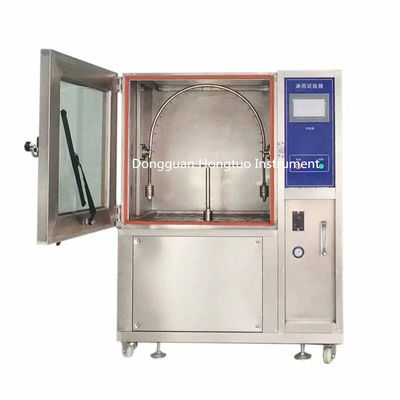

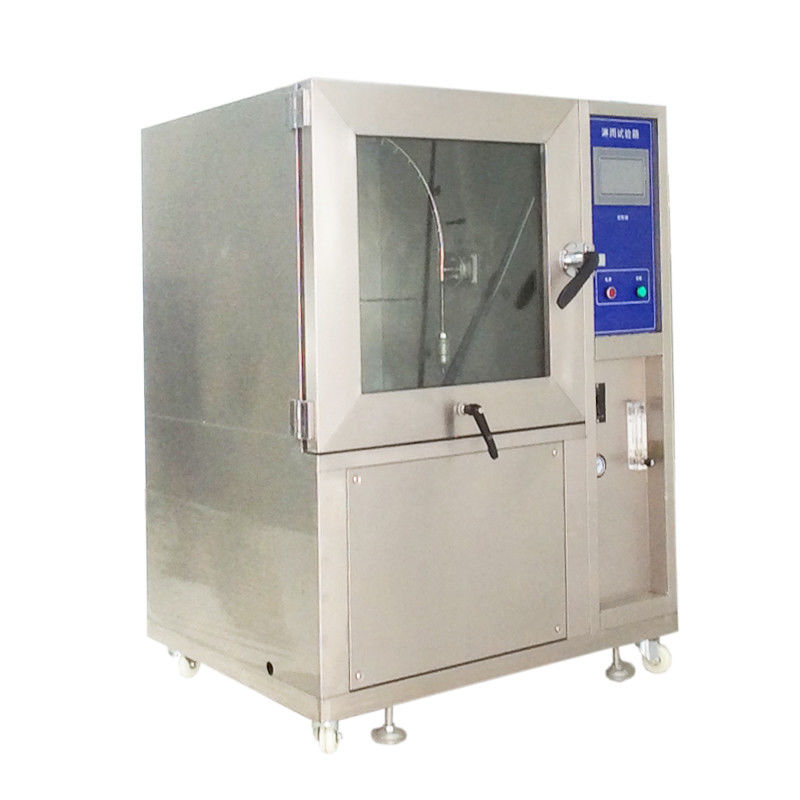

►Detail Images
