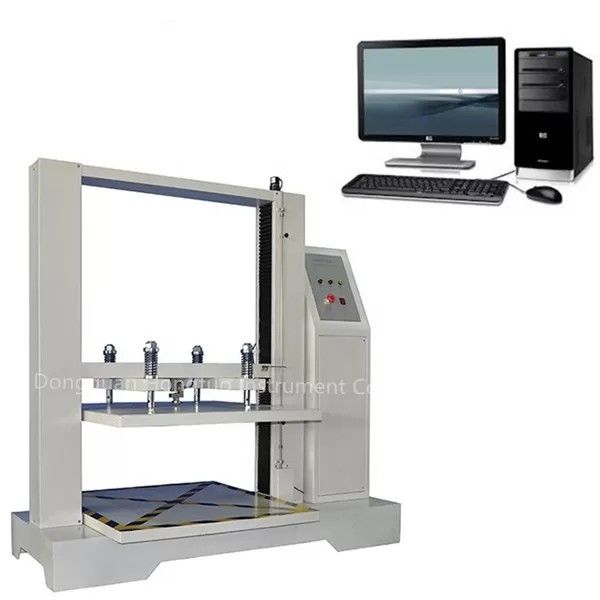

Packaging Box Carton Compression Tester Paper Testing Equipment

Packaging Box Carton Compression Tester Paper Testing Equipment

Packaging Box Carton Compression Tester Paper Testing Equipment

Product Details:

Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-CC-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard exporting package
Delivery Time: 5-8 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Force Measurement Accuracy: Better Than ±1% Force Resolution: 1/250000
Effective Measuring Range: 1-100%F.S Good Quality Assurance: Yes
After-sale Customer Service: Yes Product Name: Carton Compression Tester

Packaging Box Carton Compression Tester Paper Testing Equipment



Carton compression tester / Full carton compression tester / empty carton compression strength tester is a multifunctional standard carton quality inspection equipment, mainly used for the compression strength testing for various types of medium-sized corrugated cardboard boxes and the whole carton made up of other materials with a compression strength less than 50 KN, such as food and beverages, fast food and bread packaging,cosmetic packaging, beer packaging, grain and oil packaging, etc. This instrument has high control precision and advanced research technology. It is the most cost-effective universal carton compression tester.


Detailed equipment parameter


Parameter item Technical index
Measuring range 10KN 20KN 50KN (The above 3 different ranges are available)
Force measurement accuracy Better than ±1%
Force resolution​ 1/250000
Effective measuring range 1-100%F.S
Unit conversion N,kN,kgf,gf,lbf
Accuracy of the indicating value Error of indication ±1%, Variation of indication≤1%
Accuracy of position ≤0.01mm


Degree of parallelism for the pressure plates

Test speed (12.5±2.5)mm/min
Return speed 10~150 mm/min (can be set arbitrarily)

Test space


500×500×500mm ,600×600×600mm, 800×800×800mm,

1000×1000×1000mm, 1200×1200×1200mm,1500×1500×1500mm

Display system

Independent research and development test system, LCD display

in English

Printing function High-speed thermal printer(print content:serial number,the maximum value,the minimum value,peak value,average value,etc)
can be used for holding pressure test.​ (stacking test) holding pressure can be arbitrarily set
Dynamical system


AC variable frequency system

Frequency converter DELIXI
Working power supply AC220V 50HZ
Machine weight About 550kg
Notes Test space size can be customized according to sample size
