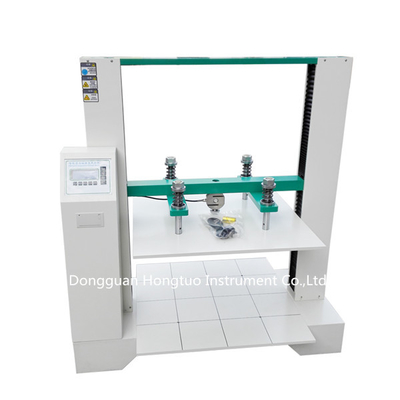

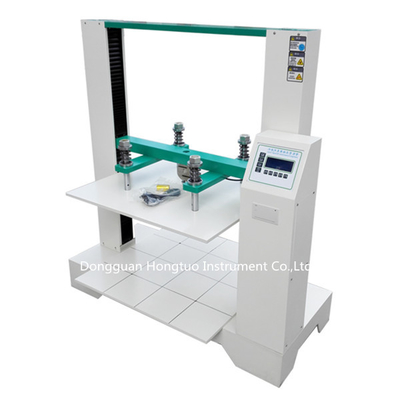

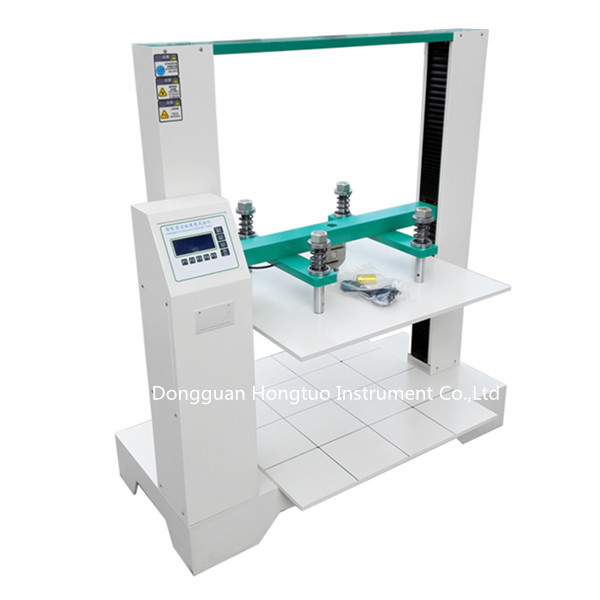

Full Intelligent Computer Control Carton Compression Strength Tester / Testing Machine / Equipment / Instrument
It is the basic instrument for testing the compressive strength of corrugated boxes (ie packaging testing equipment), and is suitable for compressive strength test, compliance test and stacking strength test of various corrugated boxes.
Features
1. After the test is completed, there is an automatic return function, which can automatically judge the crushing force and automatically save the test data
2. Three configurable speeds, full Chinese LCD display operation interface, and various units to choose from.
3. The relevant data can be input and the compressive strength is automatically converted, and the packaging stacking test function is provided; the strength and time can be set directly, and the machine will automatically stop after the test is completed.
4. Three working modes:
Strength test: can measure the maximum pressure resistance of the cabinet;
Fixed value test: the overall performance of the cabinet can be detected according to the set pressure;
Stacking test: According to the requirements of national standards, stacking tests of 12 hours, 24 hours and other conditions can be carried out.
Detailed equipment parameters:
| Capacity |
500kg |
| Accuracy level |
1 class |
| Control method |
Microcomputer control (computer operating system is optional) |

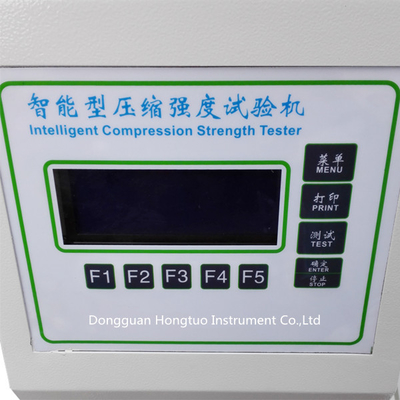

| Display method |
Electronic LCD display (or computer display) |
| Unit conversion |
kgf,gf ,N,kN,lbf |
| Stress unit conversion |
MPa,kPa,kgf/cm2,lbf/in2 |
| Displacement unit |
mm, cm, in |
| Force resolution |
1/100000 |
| Display resolution |
0.001N |
| Machine stroke |
600 mm |
| Platen size |
600*600 mm |
| Test speed |
5mm～100mm/min
can input speed arbitrarily
|
| Software function |
English language |
| Stop mode |
Overload shutdown, emergency stop button,specimen damage automatic shutdown, upper and lower limits automatic shutdown |
| safety devices |
Overload protection, limit element protection device |
| Machine power |
AC inverter motor drive controller |
| Mechanical system |
High precision ball screw |
| Power supply |
AC220V/50HZ~60HZ 4A |
| Machine weight |
Around 350KG |
| features |
Percent break value can be set, automatic stop, can enter the menu to choose 4 different speeds, 20 results, you can view the average value of all test results and single results |
