    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: DH-CC-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: 5-8 Work Days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Test Speed: (12.5±2.5)mm/min Return Speed: 10~150 Mm/min (can Be Set Arbitrarily)
    Dynamical System: AC Variable Frequency System Good Quality Assurance: Yes
    After-sale Customer Service: Yes Product Name: Carton Compression Tester

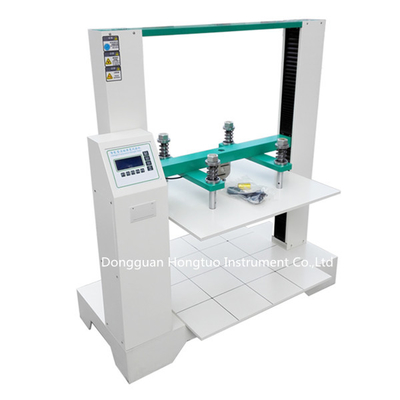

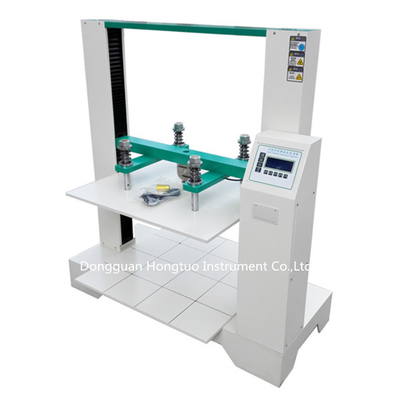

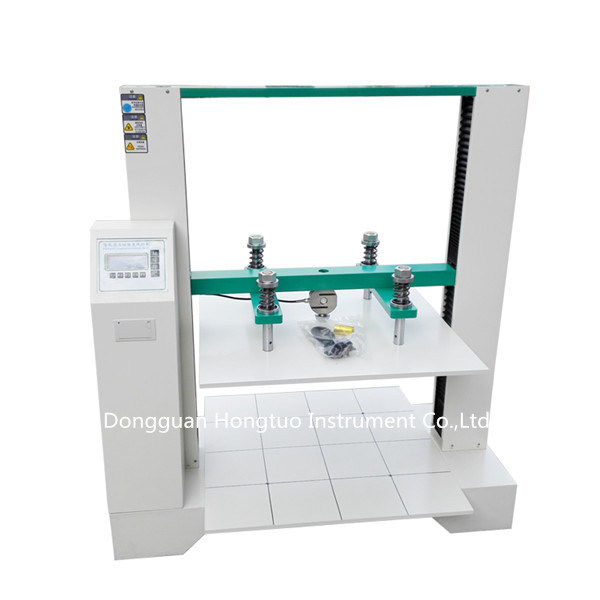

    10KN 20KN 50KN Carton Compression Testing Machine

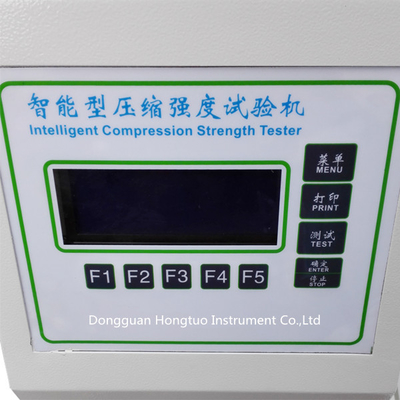

    1.LCD large blue backlit liquid crystal display

    2. Can display test value and maximum value, with printing function;

    3. Constant force and timing test, after the test is completed, automatically reset;

    4. Overload shutdown, emergency stop button, automatic shutdown when the specimen is damaged, automatic shutdown when the upper and lower limits are set; overload protection, limit element protection device.

    5. Control mode: dual-position (computer host and microcomputer LCD monitor can be tested separately)

    6. Display mode: electronic LCD display and Computer display



    Product introduction: It is the basic instrument for testing the compressive strength of corrugated boxes (ie packaging testing equipment), and is suitable for compressive strength test, compliance test and stacking strength test of various corrugated boxes.



    Features:

    1. After the test is completed, there is an automatic return function, which can automatically judge the crushing force and automatically save the test data

    2. Three configurable speeds, full Chinese LCD display operation interface, and various units to choose from.

    3. The relevant data can be input and the compressive strength is automatically converted, and the packaging stacking test function is provided; the strength and time can be set directly, and the machine will automatically stop after the test is completed.

    4. Three working modes:

    Strength test: can measure the maximum pressure resistance of the cabinet;

    Fixed value test: the overall performance of the cabinet can be detected according to the set pressure;

    Stacking test: According to the requirements of national standards, stacking tests of 12 hours, 24 hours and other conditions can be carried out.



    Detailed equipment parameters:



    Capacity 500kg
    Accuracy level 1 class
    Control method Microcomputer control (computer operating system is optional)
    Display method Electronic LCD display (or computer display)
    Unit conversion kgf,gf ,N,kN,lbf
    Stress unit conversion MPa,kPa,kgf/cm2,lbf/in2
    Displacement unit mm, cm, in
    Force resolution​ 1/100000
    Display resolution 0.001N
    Machine stroke 600 mm
    Platen size 600*600 mm
    Test speed

    5mm~100mm/min

    can input speed arbitrarily

    Software function English language
    Stop mode Overload shutdown, emergency stop button,specimen damage automatic shutdown, upper and lower limits automatic shutdown
    safety devices Overload protection, limit element protection device
    Machine power AC inverter motor drive controller
    Mechanical system High precision ball screw
    Power supply AC220V/50HZ~60HZ 4A
    Machine weight Around 350KG
    features Percent break value can be set, automatic stop, can enter the menu to choose 4 different speeds, 20 results, you can view the average value of all test results and single results




    Meet the following criteria:



    GB/T 4857.4 "Pressure test method for packaging and transportation package"

    GB/T 4857.3 "Static load stacking test method for packaging and transport packages"

    ISO2872 "Packaging - Complete, Fully Loaded Transport Packages - Stress Test"

    ISO2874 "Packaging - Complete, Fully Loaded Transport Packages - Stacking Tests with Pressure Testers"

    QB/T 1048 "Cardboard and Carton Compression Tester"
