    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: DH-CE-01

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Carton Edge Crush Strength Testing Machine Measuring Range: (0~3000N)(0-30000N/M)
    Resolution: 1N Displaying Mode: English
    Power: Electronic Warranty: 12 Months
    Application: Package

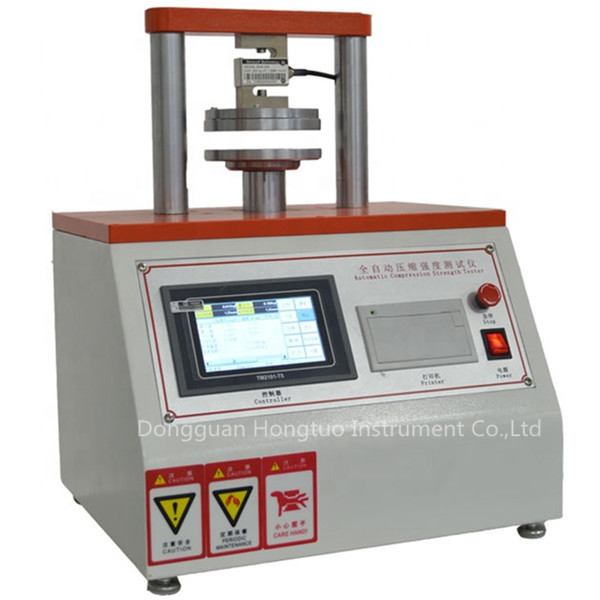

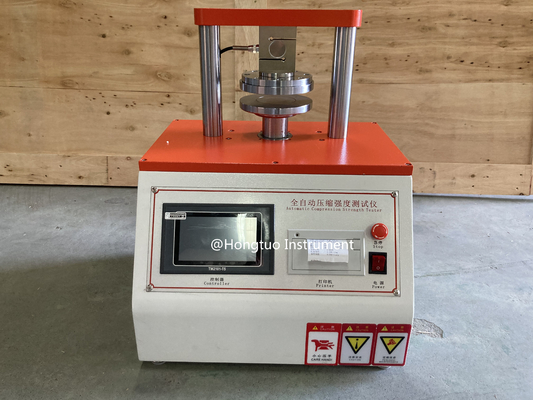

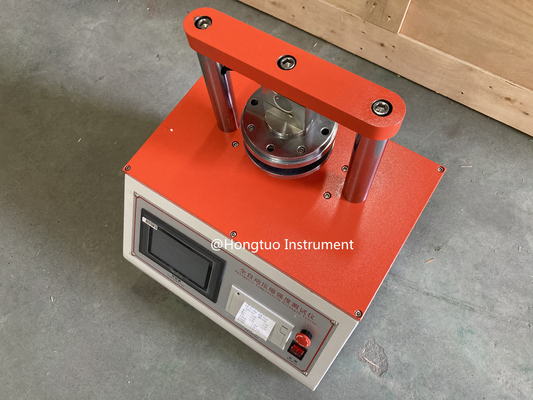

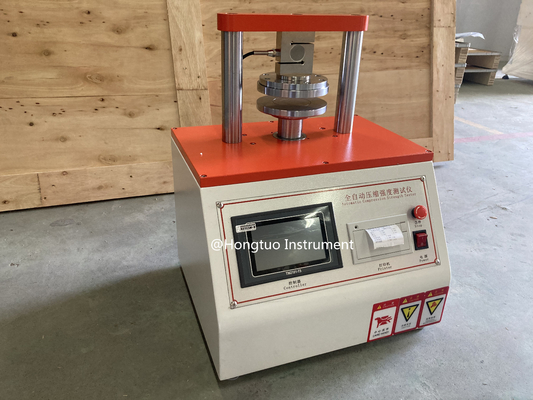

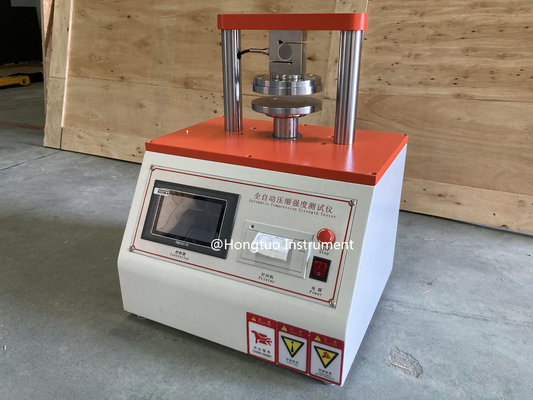

    ISO13820 ISO3037 Microcomputer Edgewise Crush Resistance Tester





    Application :



    This machine can be matched with various materials to do comprehensive testing, in terms of paper packaging material, a variety of test paper quality, i.e. the ring pressure (RCT), pressure (FCT), side pressure (ECT), adhesive (PAT) and general compression (CMT) and other 5 kinds of test, is a combination of a number of functions in the test one of the equipment.



    Standards :



    TAPPI-T472 JIS-P8126





    Technical Specifications:



    Parameter item Technical index
    Measuring range (0~3000N)(0-30000N/M)

    Resolution



    1N
    Accuracy of the indicating value Error of indication±1%,variation of indication≤1%
    Test speed (12.5±2.5)mm/min
    Degree of parallelism for the upper and lower pressure plates <0.05mm
    The standard pressure plate ¢100mm
    The maximum distance between upper and lower pressure plates. about 70mm

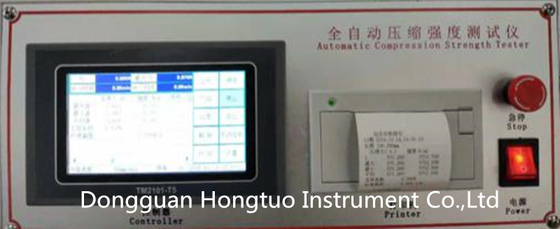

    Displaying mode LCD display in English
    Printing function



    High-speed thermal printer(printing content: serial number,the maximum value,the minimum value,peak value ,average value,etc)

    Working power supply AC220V 50Hz
    Machine weight about 45kg
    Size 360mm × 330mm × 550mm
    Design standards CNS2956,JISP8126,TAPPIT472,GB/T2679.6-1996,GB/T6548-1998,GB/T6544-2008

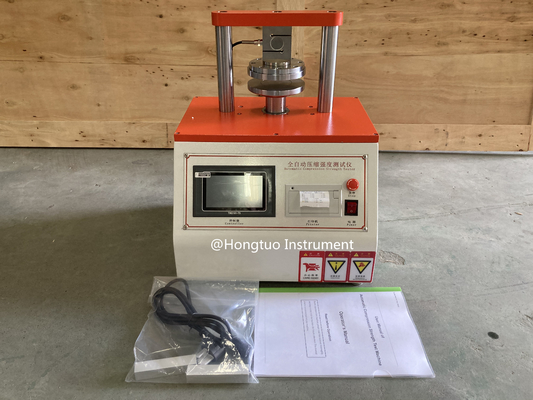

    Standard configuration: a piece of clamp

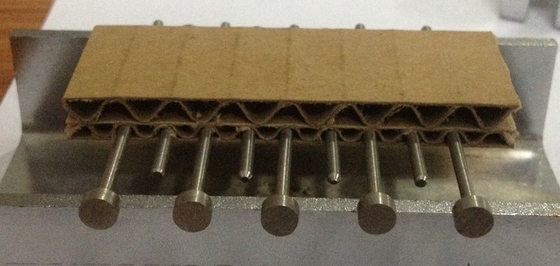

    Optional configuration: edge pressure sampler; ring pressure sampler, ring pressure center plate; flat pressure fixture; bonding strength fixture (optional)

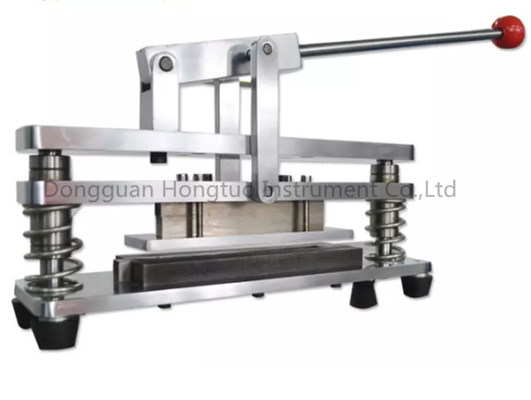

    Edge pressure test sampler: mainly used for the sampling of edge pressure test and peel test



    The technical parameters of the edge pressure test sampler:



    The maximum thickness of sample:18mm

    Standard length of sample: 100(80)mm±0.5 mm

    Standard width of sample: (25±0.5)mm

    Outline dimension: 390mm(length)×350mm(width)

    Product net weight: ≤9.0kg

    Product gross weight: ≤13.0kg



    Ring pressure test sampler: The ring pressure special sampler is suitable for cutting the sample required for the paper ring pressure strength and the flat pressure strength test of corrugated core paper, conforms to the relevant provisions of the QB/T1671 standard, and is a necessary and dedicated sampler for paper ring pressure strength testing (RCT).The dedicated sampler is an ideal assistance tool for paper making, packaging, scientific research, and quality inspection,etc.



    The main technical parameters of the ring pressure test sampler:

    The sampling size: 152mmX12.7 mm

    The sampling thickness: (0.1~1.0)mm

    Outline dimensions (length X width X height),mm:380*120*250

    Weight: about 10kg

    Feature: Punching sampling, high sampling accuracy
