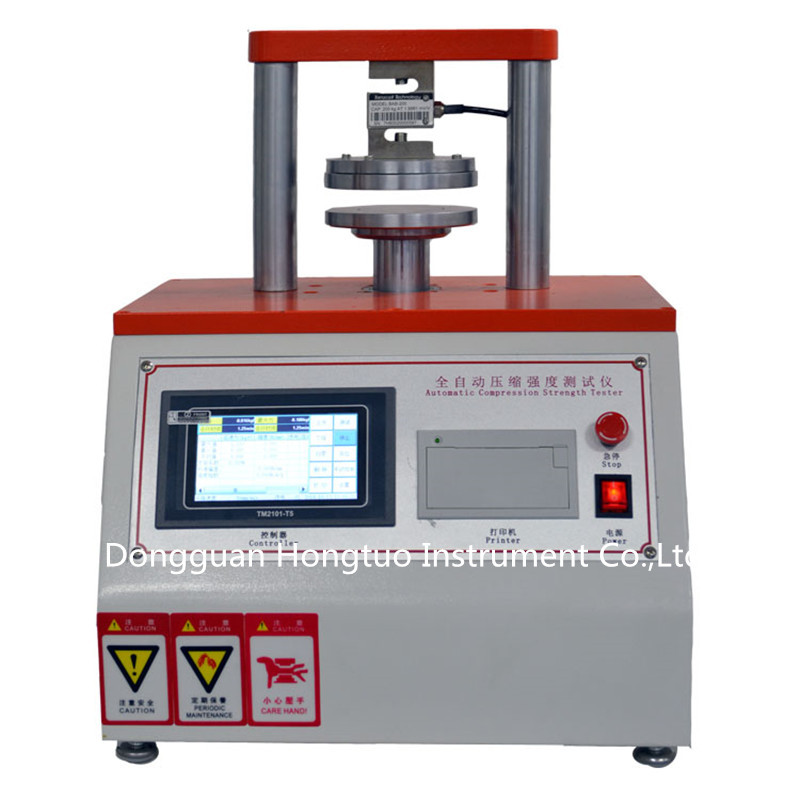

Paper Ring Crush Tester /Edge Crush Testing Machine / Crushing Strength Test Machine
1. Introduction:
Paper Board Edge Crush Tester ECT Tester is a new type of compression testing instrument developed by our company according to the specification of national standard. With mechanical and electrical
integration configuration, the instrument is well-designed using modern mechanical design theory and human
engineering design criteria and micro-process. The instrument is upper pressure plate fixed type, which has
high precision. It applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT). Flat Crush Test (FCT),
Pin Adhesion Test(PAT) and Concora Medium Test(CMT).
2. Applications:
Paper Board Edge Crush Tester ECT Tester suitable for paper, paper board, Corrugated cardboard, Corrugated Package.
3. Standards:
Paper Board Edge Crush Tester ECT Tester meet ISO 3035. ISO 3073. ISO 7263. GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679
4.Characteristic:
1. High speed return after finishing test
2. Imported step motor with servo control adopted
3. The test result can be measured, statistical and printed automatically and the data can be saved.
4. Blue color LCD display, which can be display the crush time and loading force real time ,
PN-CT300B crush tester can display crush graph real time.
5. New PC software able to manage and analyse the data and can communicate with PC. (Only for
PN-CT300B-PC type)
6. Thermal printer, high speed and no noise .
7. Use the modern design idea of mechanical and electrical integration, which has compact configuration,
pleasing appearance and convenient maintenance.
Technical Specifications:
| Parameter item |
Technical index |
| Measuring range |
(0～3000N)(0-30000N/M) |
|
Resolution
|
1N |
| Accuracy of the indicating value |
Error of indication±1%,variation of indication≤1% |
| Test speed |
(12.5±2.5)mm/min |
| Degree of parallelism for the upper and lower pressure plates |
＜0.05mm |
| The standard pressure plate |
￠100mm |
| The maximum distance between upper and lower pressure plates. |
about 70mm |
| Displaying mode |
LCD display in English |
| Printing function |
High-speed thermal printer(printing content: serial number,the maximum value,the minimum value,peak value ,average value,etc)
|
| Working power supply |
AC220V 50Hz |
| Machine weight |
about 45kg |
| Size |
360mm × 330mm × 550mm |
| Design standards |
CNS2956,JISP8126,TAPPIT472,GB/T2679.6-1996,GB/T6548-1998,GB/T6544-2008 |
Standard configuration: a piece of clamp
Optional configuration: edge pressure sampler; ring pressure sampler, ring pressure center plate; flat pressure fixture; bonding strength fixture (optional)
Edge pressure test sampler: mainly used for the sampling of edge pressure test and peel test
The technical parameters of the edge pressure test sampler:
The maximum thickness of sample:18mm
Standard length of sample: 100(80)mm±0.5 mm
Standard width of sample: (25±0.5)mm
Outline dimension: 390mm(length)×350mm(width)
Product net weight: ≤9.0kg
Product gross weight: ≤13.0kg
Ring pressure test sampler: The ring pressure special sampler is suitable for cutting the sample required for the paper ring pressure strength and the flat pressure strength test of corrugated core paper, conforms to the relevant provisions of the QB/T1671 standard, and is a necessary and dedicated sampler for paper ring pressure strength testing (RCT).The dedicated sampler is an ideal assistance tool for paper making, packaging, scientific research, and quality inspection,etc.
The main technical parameters of the ring pressure test sampler:
The sampling size: 152mmX12.7 mm
The sampling thickness: (0.1~1.0)mm
Outline dimensions (length X width X height),mm:380*120*250
Weight: about 10kg
Feature: Punching sampling, high sampling accuracy
